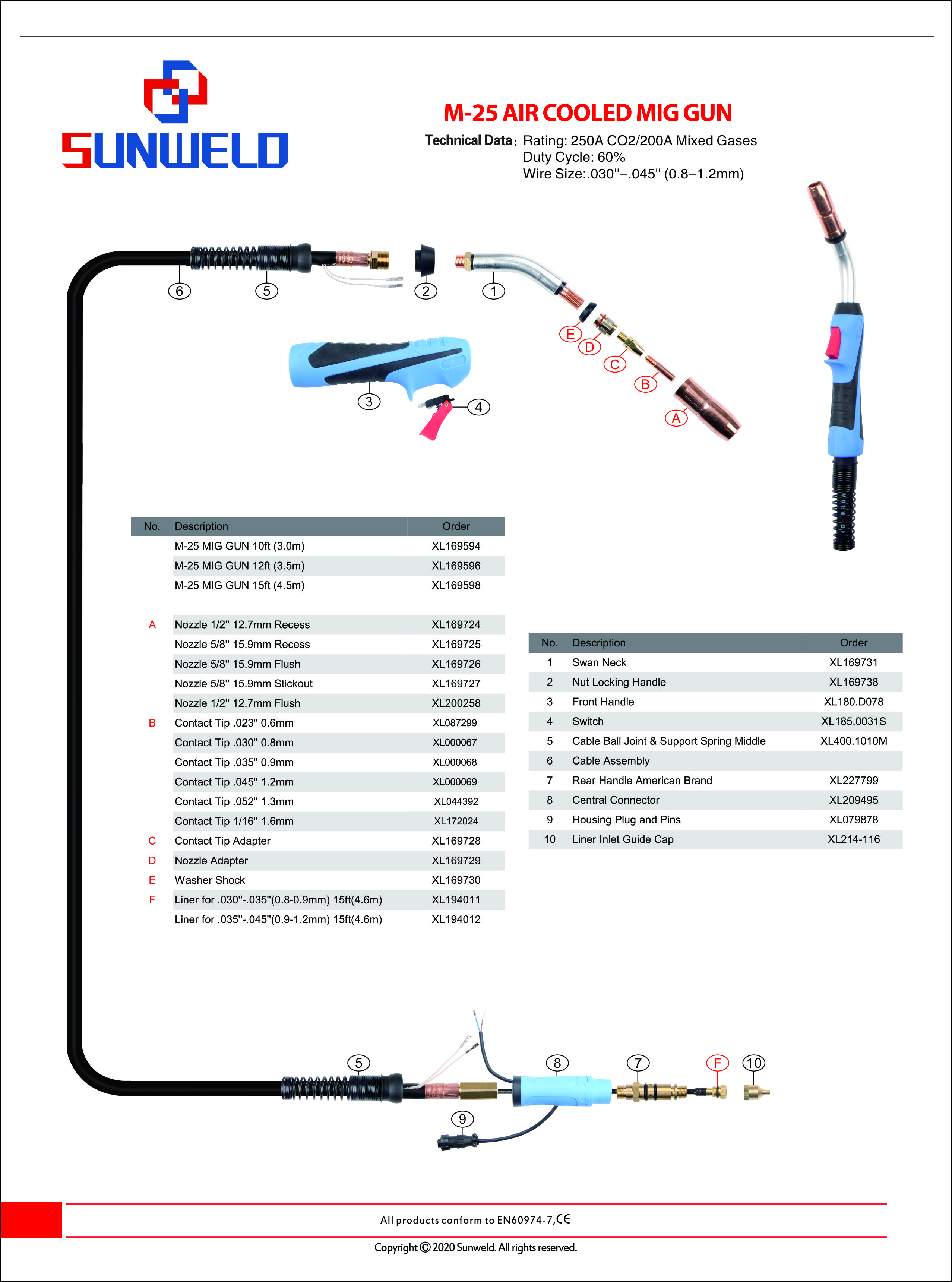

| M-25 AIR COOLED MIG GUN | ||
| Technical Data： | Rating: 250A CO2/200A Mixed Gases | |
| Duty Cycle:60% | ||
| Wire Size:.030''-.045'' (0.8-1.2mm) | ||
| No. | Description | Order |
| M-25 MIG GUN 10ft (3.0m) | XL169594 | |
| M-25 MIG GUN 12ft (3.5m) | XL169596 | |
| M-25 MIG GUN 15ft (4.5m) | XL169598 | |
| A | Nozzle 1/2'' 12.7mm Recess | XL169724 |
| Nozzle 5/8'' 15.9mm Recess | XL169725 | |
| Nozzle 5/8'' 15.9mm Flush | XL169726 | |
| Nozzle 5/8'' 15.9mm Stickout | XL169727 | |
| Nozzle 1/2'' 12.7mm Flush | XL200258 | |
| B | Contact Tip .023'' 0.6mm | XL087299 |
| Contact Tip .030'' 0.8mm | XL000067 | |
| Contact Tip .035'' 0.9mm | XL000068 | |
| Contact Tip .045'' 1.2mm | XL000069 | |
| Contact Tip .052'' 1.3mm | XL044392 | |
| Contact Tip 1/16'' 1.6mm | XL172024 | |
| C | Contact Tip Adapter | XL169728 |
| D | Nozzle Adapter | XL169729 |
| E | Washer Shock | XL169730 |
| F | Liner for .030''-.035''(0.8-0.9mm) 15ft(4.6m) | XL194011 |
| Liner for .035''-.045''(0.9-1.2mm) 15ft(4.6m) | XL194012 | |
| No. | Description | Order |
| 1 | Swan Neck | XL169731 |
| 2 | Nut Locking Handle | XL169738 |
| 3 | Front Handle | XL180.D078 |
| 4 | Switch | XL185.0031S |
| 5 | Cable Ball Joint & Support Spring Middle | XL400.1010M |
| 6 | Cable Assembly | |
| 7 | Rear Handle American Brand | XL227799 |
| 8 | Central Connector | XL209495 |
| 9 | Housing Plug and Pins | XL079878 |
| 10 | Liner Inlet Guide Cap | XL214-116 |
