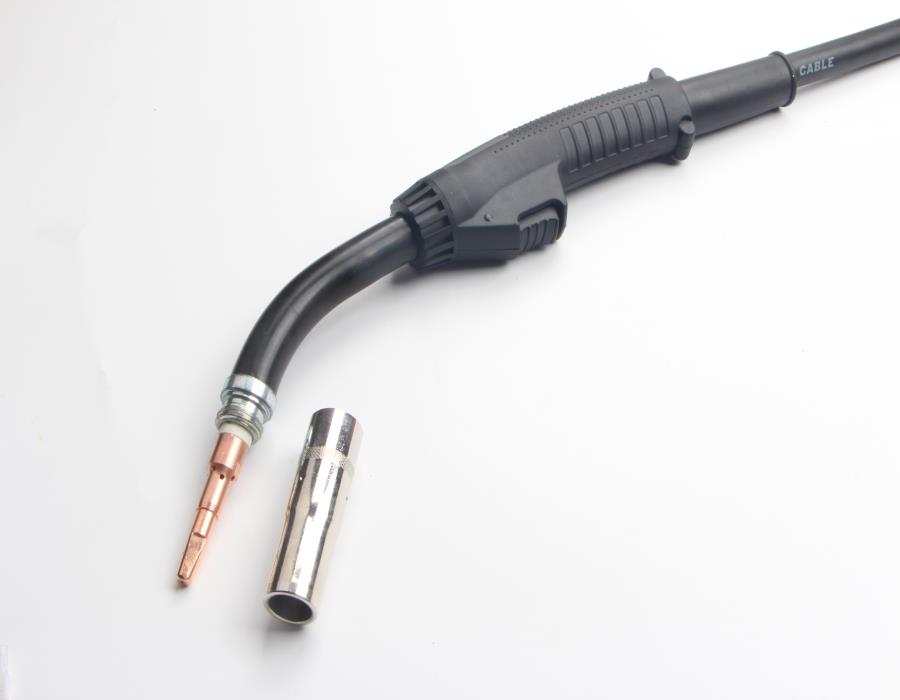

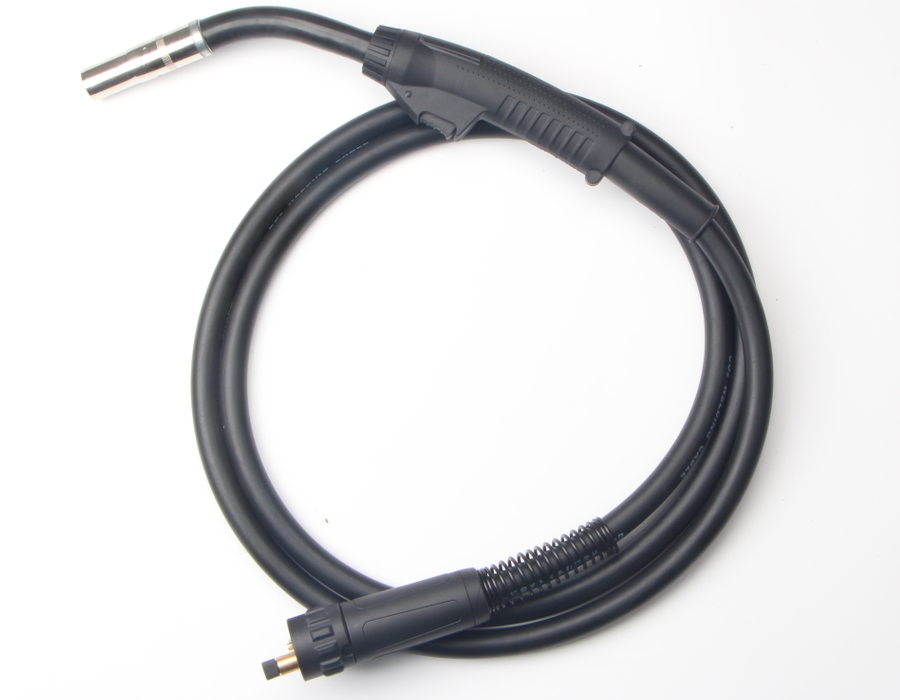

PSF 405 Air Cooled Welding Torch(XL0458 401 882 XL0458 401 883)

PSF 405 Air Cooled Welding Torch Technical Data: Rating: 400A CO2/350A Mixed Gases Duty Cycle:60% Wire Size:1.0-1.6mm PSF405 3.0m Air Cooled Welding Torch XL0458 401 882 PSF405 4.5m Air Cooled Welding Torch XL0458 401 883

Products Details

  405
PSF 405 Air Cooled Welding Torch
Technical Data Rating: 400A CO2/350A Mixed Gases
Duty Cycle:60%
Wire Size:1.0-1.6mm

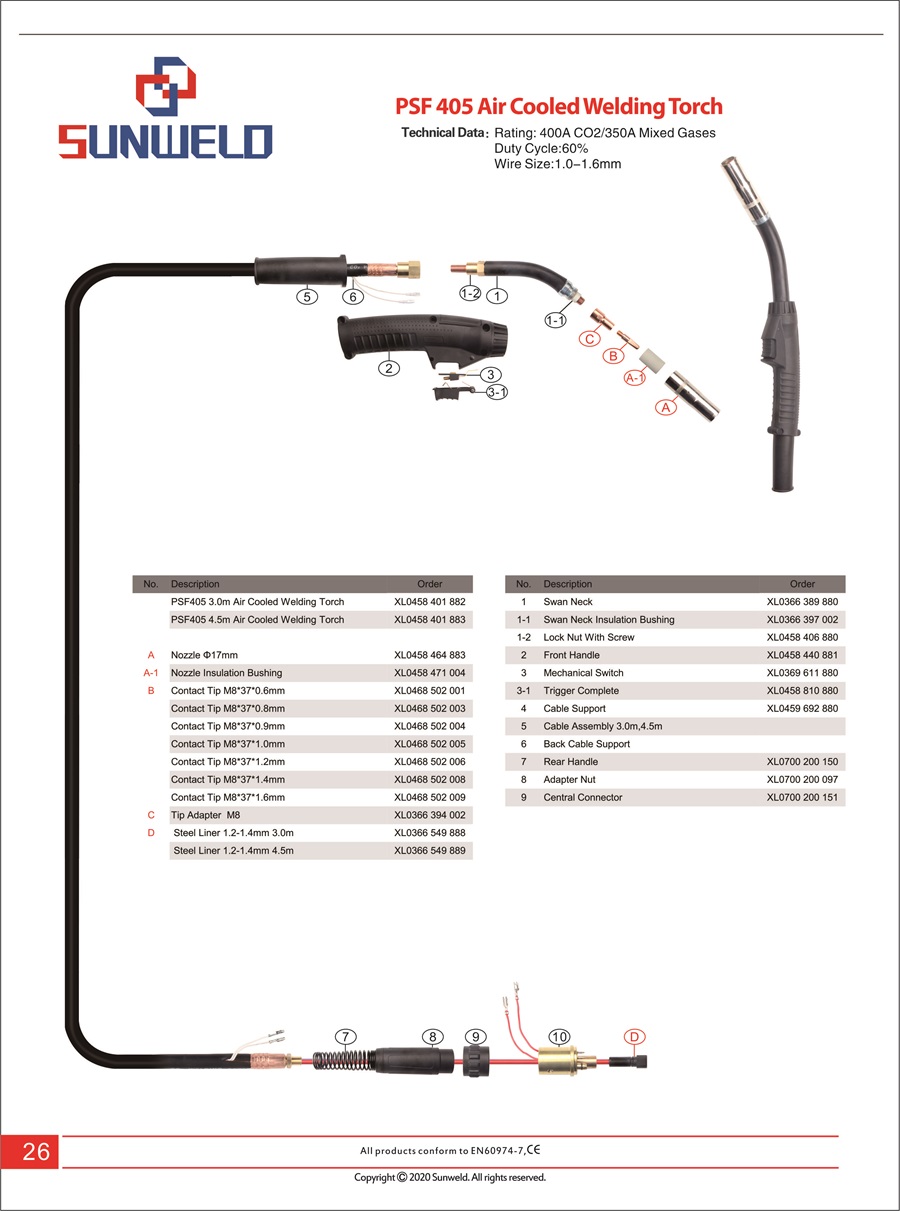

No. Description Order
PSF405 3.0m Air Cooled Welding Torch XL0458 401 882
PSF405 4.5m Air Cooled Welding Torch XL0458 401 883
A Nozzle Φ17mm   XL0458 464 883
A-1 Nozzle Insulation Bushing XL0458 471 004
B Contact Tip M8*37*0.6mm XL0468 502 001
Contact Tip M8*37*0.8mm XL0468 502 003
Contact Tip M8*37*0.9mm XL0468 502 004
Contact Tip M8*37*1.0mm XL0468 502 005
Contact Tip M8*37*1.2mm XL0468 502 006
Contact Tip M8*37*1.4mm XL0468 502 008
Contact Tip M8*37*1.6mm XL0468 502 009
C Tip Adapter  M8 XL0366 394 002
D  Steel Liner 1.2-1.4mm 3.0m XL0366 549 888
 Steel Liner 1.2-1.4mm 4.5m XL0366 549 889
No. Description Order
1 Swan Neck XL0366 389 880
1-1 Swan Neck Insulation Bushing XL0366 397 002
1-2 Lock Nut With Screw XL0458 406 880
2 Front Handle XL0458 440 881
3 Mechanical Switch XL0369 611 880
3-1 Trigger Complete XL0458 810 880
4 Cable Support XL0459 692 880
5 Cable Assembly 3.0m,4.5m
6 Back Cable Support
7 Rear Handle XL0700 200 150
8 Adapter Nut XL0700 200 097
9 Central Connector XL0700 200 151
