PSF250 Air Cooled Welding Torch(XL0366 100 882 XL0366 100 883)

PSF250 Air Cooled Welding Torch Technical Data: Rating:250A CO2/200A Mixed Gases Duty Cycle:60% Wire Size:0.6-1.0mm PSF250 3.0m Air Cooled Welding Torch XL0366 100 882 PSF250 4.5m Air Cooled Welding Torch XL0366 100 883

Products Details

250

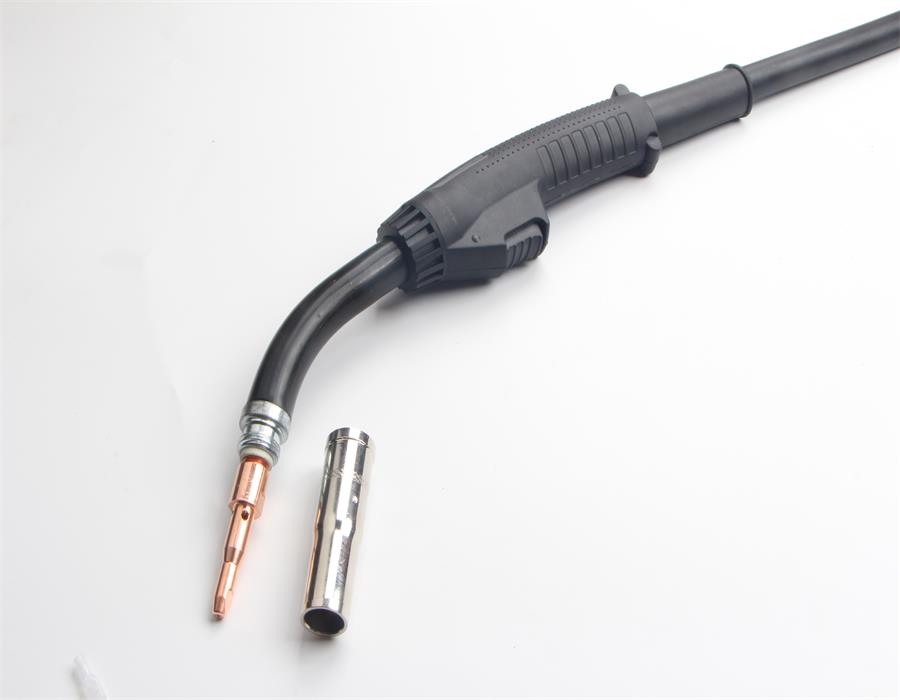

PSF250 Air Cooled Welding Torch
Technical Data Rating:250A CO2/200A Mixed Gases
Duty Cycle:60%
Wire Size:0.6-1.0mm
No. Description Order
PSF250 3.0m Air Cooled Welding Torch XL0366 100 882
PSF250 4.5m Air Cooled Welding Torch XL0366 100 883
A Nozzle Φ14mm XL0458 464 881
A-1 Nozzle Insulation Bushing XL0366 397 001
B Contact Tip M6*27*0.6mm XL0468 500 001
Contact Tip M6*27*0.8mm XL0468 500 003
Contact Tip M6*27*0.9mm XL0468 500 004
Contact Tip M6*27*1.0mm XL0468 500 005
C Tip Adapter M6 XL0366 314 001
D Steel Liner 0.9-1.0mm 3.0m XL0366 549 884
Steel Liner 0.9-1.0mm 4.5m XL0366 549 885
No. Description Order
1 Swan Neck XL0366 315 880
1-1 Swan Neck Insulation Bushing XL0366 397 001
2 Swan Neck Holder
3 Front Handle XL0468 912 880
4 Mechanical Switch XL0369 611 880
4-1 Trigger Complete XL0458 810 880
5 Cable Ball Joint & Support Spring Small XL400.1010S
6 Cable Assembly 3.0m,4.5m
7 Back Cable Support
8 Rear Handle XL0700 200 150
9 Adapter Nut XL0700 200 097
10 Central Connector XL0700 200 151
