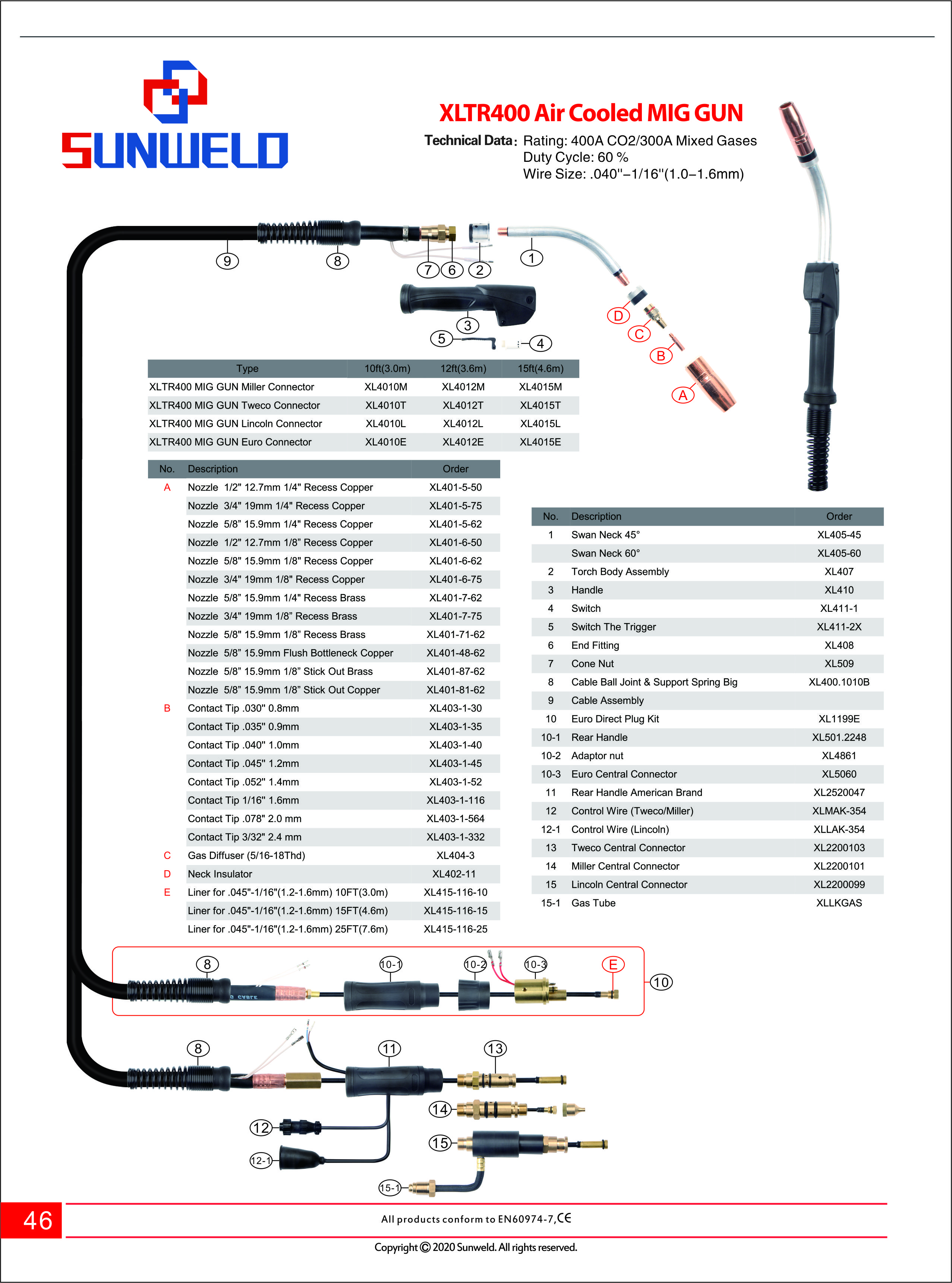

| XLTR400 Air Cooled MIG GUN | ||||
| Technical Data： | Rating: 400A CO2/300A Mixed Gases | |||
| Duty Cycle: 60% | ||||
| Wire Size: .040''-1/16''(1.0-1.6mm) | ||||
| Type | 10ft(3.0m) | 12ft(3.6m) | 15ft(4.6m) | |
| XLTR400 MIG GUN Miller Connector | XL4010M | XL4012M | XL4015M | |
| XLTR400 MIG GUN Tweco Connector | XL4010T | XL4012T | XL4015T | |
| XLTR400 MIG GUN Lincoln Connector | XL4010L | XL4012L | XL4015L | |
| XLTR400 MIG GUN Euro Connector | XL4010E | XL4012E | XL4015E | |
| No. | Description | Order | ||
| A | Nozzle 1/2" 12.7mm 1/4" Recess Copper | XL401-5-50 | ||
| Nozzle 3/4" 19mm 1/4" Recess Copper | XL401-5-75 | |||
| Nozzle 5/8” 15.9mm 1/4" Recess Copper | XL401-5-62 | |||
| Nozzle 1/2" 12.7mm 1/8” Recess Copper | XL401-6-50 | |||
| Nozzle 5/8" 15.9mm 1/8" Recess Copper | XL401-6-62 | |||
| Nozzle 3/4" 19mm 1/8" Recess Copper | XL401-6-75 | |||
| Nozzle 5/8” 15.9mm 1/4" Recess Brass | XL401-7-62 | |||
| Nozzle 3/4" 19mm 1/8” Recess Brass | XL401-7-75 | |||
| Nozzle 5/8" 15.9mm 1/8” Recess Brass | XL401-71-62 | |||
| Nozzle 5/8” 15.9mm Flush Bottleneck Copper | XL401-48-62 | |||
| Nozzle 5/8” 15.9mm 1/8” Stick Out Brass | XL401-87-62 | |||
| Nozzle 5/8” 15.9mm 1/8” Stick Out Copper | XL401-81-62 | |||
| B | Contact Tip .030'' 0.8mm | XL403-1-30 | ||
| Contact Tip .035'' 0.9mm | XL403-1-35 | |||
| Contact Tip .040'' 1.0mm | XL403-1-40 | |||
| Contact Tip .045'' 1.2mm | XL403-1-45 | |||
| Contact Tip .052'' 1.4mm | XL403-1-52 | |||
| Contact Tip 1/16'' 1.6mm | XL403-1-116 | |||
| Contact Tip .078" 2.0 mm | XL403-1-564 | |||
| Contact Tip 3/32" 2.4 mm | XL403-1-332 | |||
| C | Gas Diffuser (5/16-18Thd) | XL404-3 | ||
| D | Neck Insulator | XL402-11 | ||
| E | Liner for .045"-1/16"(1.2-1.6mm) 10FT(3.0m) | XL415-116-10 | ||
| Liner for .045"-1/16"(1.2-1.6mm) 15FT(4.6m) | XL415-116-15 | |||
| Liner for .045"-1/16"(1.2-1.6mm) 25FT(7.6m) | XL415-116-25 | |||
| No. | Description | Order | ||
| 1 | Swan Neck 45° | XL405-45 | ||
| Swan Neck 60° | XL405-60 | |||
| 2 | Torch Body Assembly | XL407 | ||
| 3 | Handle | XL410 | ||
| 4 | Switch | XL411-1 | ||
| 5 | Switch The Trigger | XL411-2X | ||
| 6 | End Fitting | XL408 | ||
| 7 | Cone Nut | XL509 | ||
| 8 | Cable Ball Joint & Support Spring Big | XL400.1010B | ||
| 9 | Cable Assembly | |||
| 10 | Euro Direct Plug Kit | XL1199E | ||
| 10-1 | Rear Handle | XL501.2248 | ||
| 10-2 | Adaptor nut | XL4861 | ||
| 10-3 | Euro Central Connector | XL5060 | ||
| 11 | Rear Handle American Brand | XL2520047 | ||
| 12 | Control Wire (Tweco/Miller) | XLMAK-354 | ||
| 12-1 | Control Wire (Lincoln) | XLLAK-354 | ||
| 13 | Tweco Central Connector | XL2200103 | ||
| 14 | Miller Central Connector | XL2200101 | ||
| 15 | Lincoln Central Connector | XL2200099 | ||
| 15-1 | Gas Tube | XLLKGAS | ||
