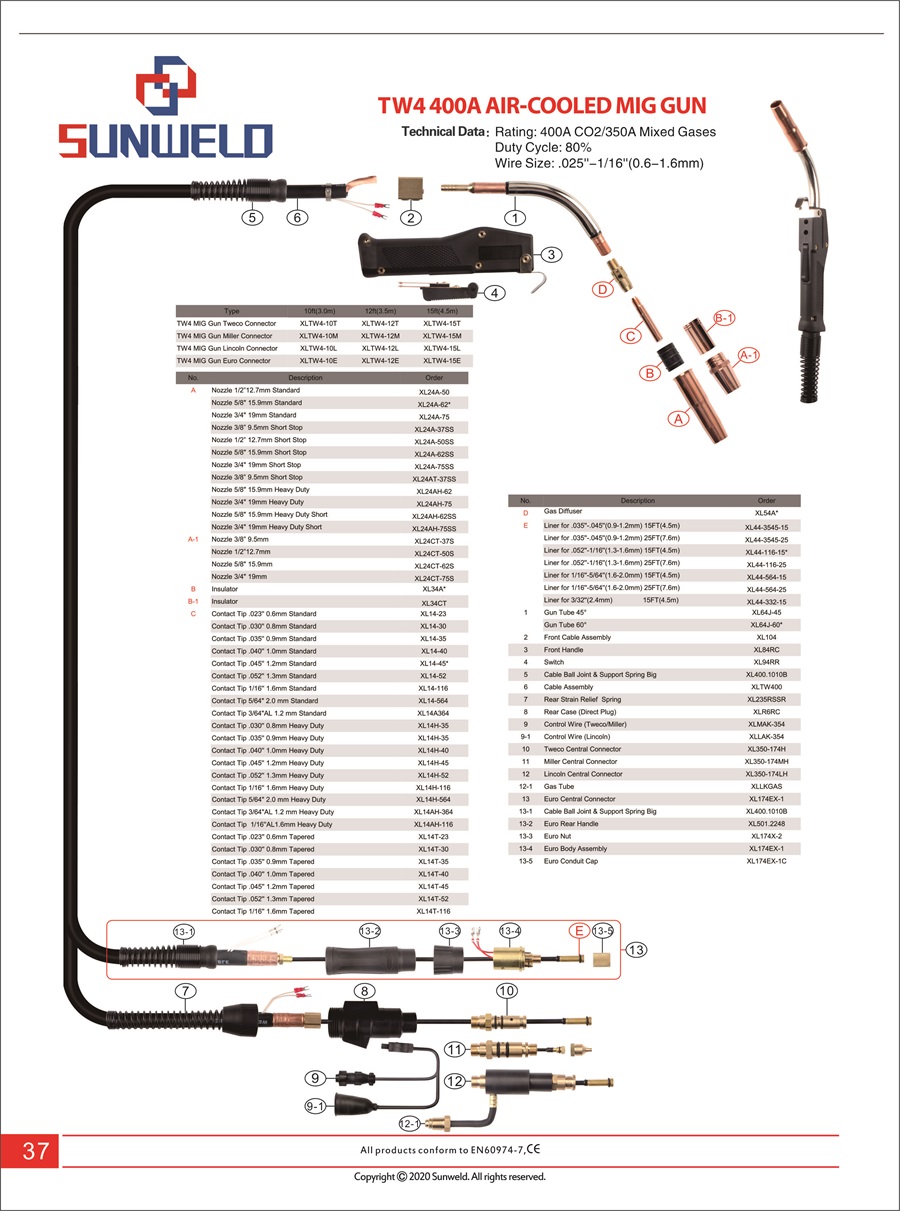

| TW4 400A AIR-COOLED MIG GUN | ||||
| Technical Data | Rating: 400A CO2/350A Mixed Gases | |||
| Duty Cycle: 80% | ||||
| Wire Size: .025''-1/16''(0.6-1.6mm) | ||||
| Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) | |
| TW4 MIG Gun Tweco Connector | XLTW4-10T | XLTW4-12T | XLTW4-15T | |
| TW4 MIG Gun Miller Connector | XLTW4-10M | XLTW4-12M | XLTW4-15M | |
| TW4 MIG Gun Lincoln Connector | XLTW4-10L | XLTW4-12L | XLTW4-15L | |
| TW4 MIG Gun Euro Connector | XLTW4-10E | XLTW4-12E | XLTW4-15E | |
| No. | Description | Order | ||
| A | Nozzle 1/2”12.7mm Standard | XL24A-50 | ||
| Nozzle 5/8" 15.9mm Standard | XL24A-62* | |||
| Nozzle 3/4" 19mm Standard | XL24A-75 | |||
| Nozzle 3/8” 9.5mm Short Stop | XL24A-37SS | |||
| Nozzle 1/2” 12.7mm Short Stop | XL24A-50SS | |||
| Nozzle 5/8" 15.9mm Short Stop | XL24A-62SS | |||
| Nozzle 3/4" 19mm Short Stop | XL24A-75SS | |||
| Nozzle 3/8” 9.5mm Short Stop | XL24AT-37SS | |||
| Nozzle 5/8" 15.9mm Heavy Duty | XL24AH-62 | |||
| Nozzle 3/4" 19mm Heavy Duty | XL24AH-75 | |||
| Nozzle 5/8" 15.9mm Heavy Duty Short | XL24AH-62SS | |||
| Nozzle 3/4" 19mm Heavy Duty Short | XL24AH-75SS | |||
| A-1 | Nozzle 3/8” 9.5mm | XL24CT-37S | ||
| Nozzle 1/2”12.7mm | XL24CT-50S | |||
| Nozzle 5/8" 15.9mm | XL24CT-62S | |||
| Nozzle 3/4" 19mm | XL24CT-75S | |||
| B | Insulator | XL34A* | ||
| B-1 | Insulator | XL34CT | ||
| C | Contact Tip .023'' 0.6mm Standard | XL14-23 | ||
| Contact Tip .030'' 0.8mm Standard | XL14-30 | |||
| Contact Tip .035'' 0.9mm Standard | XL14-35 | |||
| Contact Tip .040'' 1.0mm Standard | XL14-40 | |||
| Contact Tip .045'' 1.2mm Standard | XL14-45* | |||
| Contact Tip .052'' 1.3mm Standard | XL14-52 | |||
| Contact Tip 1/16'' 1.6mm Standard | XL14-116 | |||
| Contact Tip 5/64" 2.0 mm Standard | XL14-564 | |||
| Contact Tip 3/64"AL 1.2 mm Standard | XL14A364 | |||
| Contact Tip .030'' 0.8mm Heavy Duty | XL14H-35 | |||
| Contact Tip .035'' 0.9mm Heavy Duty | XL14H-35 | |||
| Contact Tip .040'' 1.0mm Heavy Duty | XL14H-40 | |||
| Contact Tip .045'' 1.2mm Heavy Duty | XL14H-45 | |||
| Contact Tip .052'' 1.3mm Heavy Duty | XL14H-52 | |||
| Contact Tip 1/16'' 1.6mm Heavy Duty | XL14H-116 | |||
| Contact Tip 5/64" 2.0 mm Heavy Duty | XL14H-564 | |||
| Contact Tip 3/64"AL 1.2 mm Heavy Duty | XL14AH-364 | |||
| Contact Tip 1/16''AL1.6mm Heavy Duty | XL14AH-116 | |||
| Contact Tip .023'' 0.6mm Tapered | XL14T-23 | |||
| Contact Tip .030'' 0.8mm Tapered | XL14T-30 | |||
| Contact Tip .035'' 0.9mm Tapered | XL14T-35 | |||
| Contact Tip .040'' 1.0mm Tapered | XL14T-40 | |||
| Contact Tip .045'' 1.2mm Tapered | XL14T-45 | |||
| Contact Tip .052'' 1.3mm Tapered | XL14T-52 | |||
| Contact Tip 1/16'' 1.6mm Tapered | XL14T-116 | |||
| D | Gas Diffuser | XL54A* | ||
| E | Liner for .035''-.045''(0.9-1.2mm) 15FT(4.5m) | XL44-3545-15 | ||
| Liner for .035''-.045''(0.9-1.2mm) 25FT(7.6m) | XL44-3545-25 | |||
| Liner for .052''-1/16''(1.3-1.6mm) 15FT(4.5m) | XL44-116-15* | |||
| Liner for .052''-1/16''(1.3-1.6mm) 25FT(7.6m) | XL44-116-25 | |||
| Liner for 1/16''-5/64''(1.6-2.0mm) 15FT(4.5m) | XL44-564-15 | |||
| Liner for 1/16''-5/64''(1.6-2.0mm) 25FT(7.6m) | XL44-564-25 | |||
| Liner for 3/32''(2.4mm) 15FT(4.5m) | XL44-332-15 | |||
| No. | Description | Order | ||
| 1 | Gun Tube 45° | XL64J-45 | ||
| Gun Tube 60° | XL64J-60* | |||
| 2 | Front Cable Assembly | XL104 | ||
| 3 | Front Handle | XL84RC | ||
| 4 | Switch | XL94RR | ||
| 5 | Cable Ball Joint & Support Spring Big | XL400.1010B | ||
| 6 | Cable Assembly | XLTW400 | ||
| 7 | Rear Strain Relief Spring | XL235RSSR | ||
| 8 | Rear Case (Direct Plug) | XLR6RC | ||
| 9 | Control Wire (Tweco/Miller) | XLMAK-354 | ||
| 9-1 | Control Wire (Lincoln) | XLLAK-354 | ||
| 10 | Tweco Central Connector | XL350-174H | ||
| 11 | Miller Central Connector | XL350-174MH | ||
| 12 | Lincoln Central Connector | XL350-174LH | ||
| 12-1 | Gas Tube | XLLKGAS | ||
| 13 | Euro Central Connector | XL174EX-1 | ||
| 13-1 | Cable Ball Joint & Support Spring Big | XL400.1010B | ||
| 13-2 | Euro Rear Handle | XL501.2248 | ||
| 13-3 | Euro Nut | XL174X-2 | ||
| 13-4 | Euro Body Assembly | XL174EX-1 | ||
| 13-5 | Euro Conduit Cap | XL174EX-1C |
