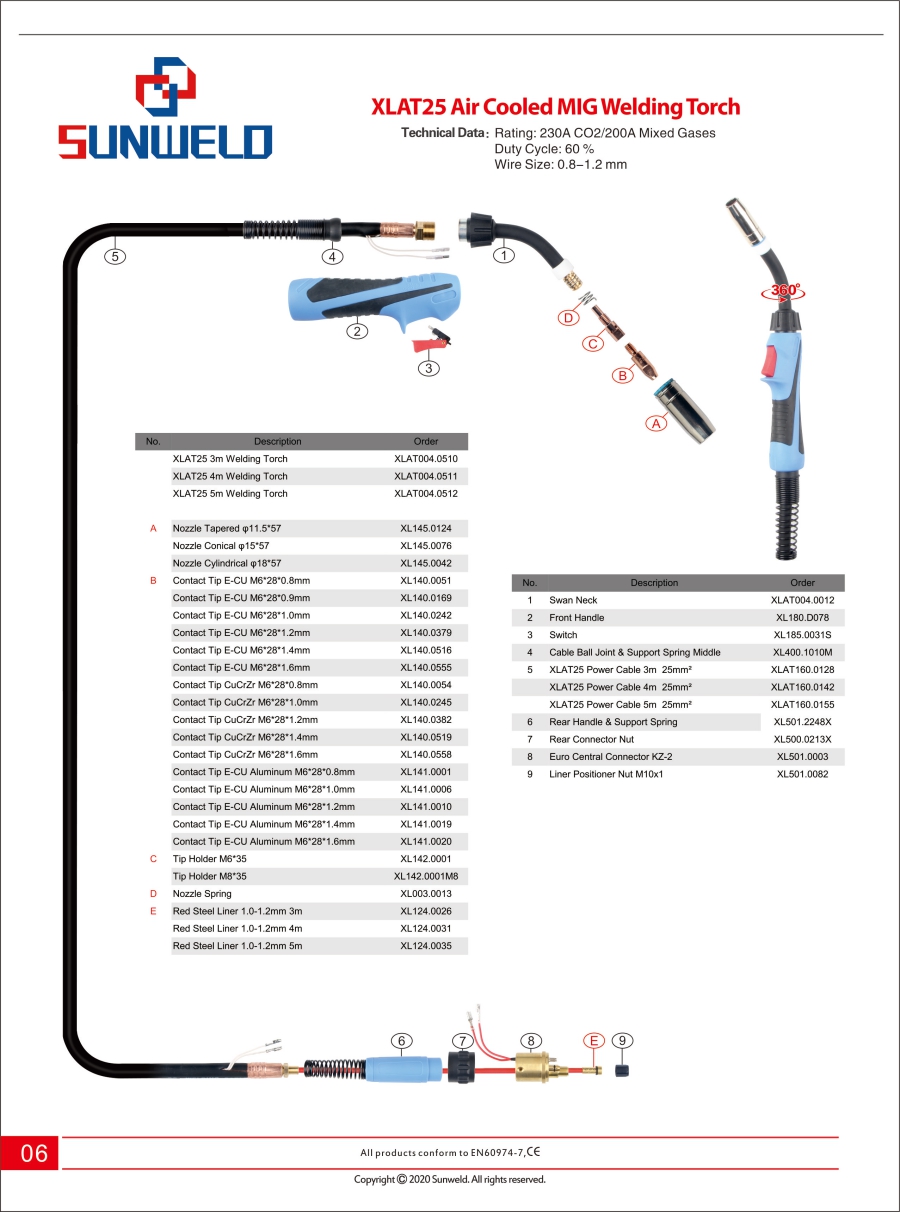

XLAT25 Air Cooled MIG Welding Torch (XLAT004.0510 XLAT004.0511 XLAT004.0512)

XLAT25 Air Cooled MIG Welding Torch Technical Data Rating: 230A CO2/200A Mixed Gases Duty Cycle: 60 % Wire Size: 0.8-1.2 mm XLAT25 3m Welding Torch XLAT004.0510 XLAT25 4m Welding Torch XLAT004.0511 XLAT25 5m Welding Torch XLAT004.0512

Products Details

XLAT25
XLAT25 Air Cooled MIG Welding Torch
Technical Data: Rating: 230A CO2/200A Mixed Gases
Duty Cycle: 60 %
Wire Size: 0.8-1.2 mm
No. Description Order
XLAT25 3m Welding Torch XLAT004.0510
XLAT25 4m Welding Torch XLAT004.0511
XLAT25 5m Welding Torch XLAT004.0512
A Nozzle Tapered φ11.5*57 XL145.0124
Nozzle Conical φ15*57 XL145.0076
Nozzle Cylindrical φ18*57 XL145.0042
B Contact Tip E-CU M6*28*0.8mm XL140.0051
Contact Tip E-CU M6*28*0.9mm XL140.0169
Contact Tip E-CU M6*28*1.0mm XL140.0242
Contact Tip E-CU M6*28*1.2mm XL140.0379
Contact Tip E-CU M6*28*1.4mm XL140.0516
Contact Tip E-CU M6*28*1.6mm XL140.0555
Contact Tip CuCrZr M6*28*0.8mm XL140.0054
Contact Tip CuCrZr M6*28*1.0mm XL140.0245
Contact Tip CuCrZr M6*28*1.2mm XL140.0382
Contact Tip CuCrZr M6*28*1.4mm XL140.0519
Contact Tip CuCrZr M6*28*1.6mm XL140.0558
Contact Tip E-CU Aluminum M6*28*0.8mm XL141.0001
Contact Tip E-CU Aluminum M6*28*1.0mm XL141.0006
Contact Tip E-CU Aluminum M6*28*1.2mm XL141.0010
Contact Tip E-CU Aluminum M6*28*1.4mm XL141.0019
Contact Tip E-CU Aluminum M6*28*1.6mm XL141.0020
C Tip Holder M6*35 XL142.0001
Tip Holder M8*35 XL142.0001M8
D Nozzle Spring XL003.0013
E Red Steel Liner 1.0-1.2mm 3m XL124.0026
Red Steel Liner 1.0-1.2mm 4m XL124.0031
Red Steel Liner 1.0-1.2mm 5m XL124.0035
1 Swan Neck XLAT004.0012
1-1 Swan neck Flexible XL004.0032
2 Front Handle XL180.D078
3 Switch XL185.0031S
4 Cable Ball Joint & Support Spring Middle XL400.1010M
5 XLAT25 Power Cable 3m  25mm² XLAT160.0128
XLAT25 Power Cable 4m  25mm² XLAT160.0142
XLAT25 Power Cable 5m  25mm² XLAT160.0155
6 Rear Handle & Support Spring XL501.2248X
7 Rear Connector Nut XL500.0213X
8 Euro Central Connector KZ-2 XL501.0003
9 Liner Positioner Nut M10x1 XL501.0082
