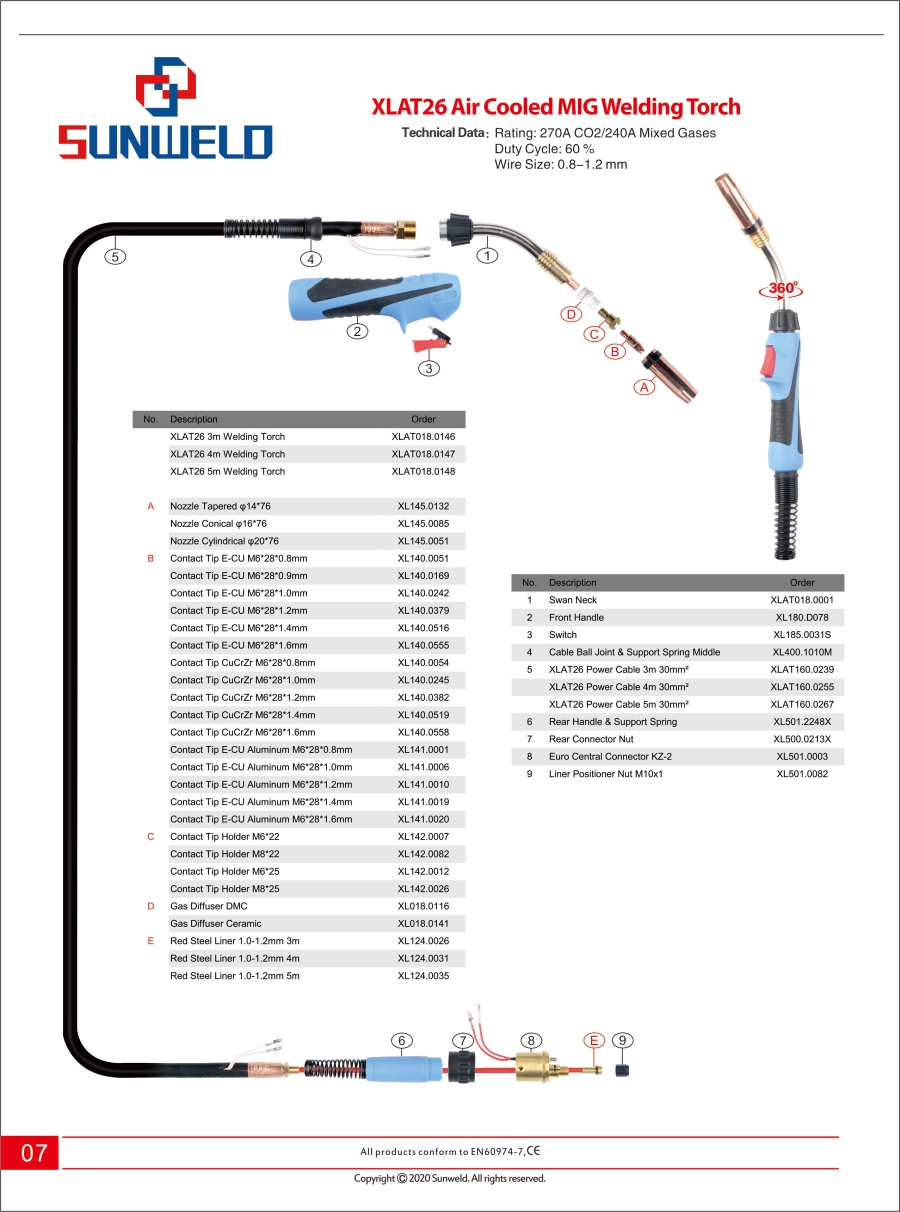

XLAT26 Air Cooled MIG Welding Torch (XLAT018.0146 XLAT018.0147 XLAT018.0148)

XLAT26 Air Cooled MIG Welding Torch Technical Data Rating: 270A CO2/240A Mixed Gases Duty Cycle: 60 % Wire Size: 0.8-1.2 mm XLAT26 3m Welding Torch XLAT018.0146 XLAT26 4m Welding Torch XLAT018.0147 XLAT26 5m Welding Torch XLAT018.0148

Products Details

XLAT26
XLAT26 Air Cooled MIG Welding Torch
Technical Data: Rating: 270A CO2/240A Mixed Gases
Duty Cycle: 60 %
Wire Size: 0.8-1.2 mm
No. Description Order
XLAT26 3m Welding Torch XLAT018.0146
XLAT26 4m Welding Torch XLAT018.0147
XLAT26 5m Welding Torch XLAT018.0148
A Nozzle Tapered φ14*76 XL145.0132
Nozzle Conical φ16*76 XL145.0085
Nozzle Cylindrical φ20*76 XL145.0051
B Contact Tip E-CU M6*28*0.8mm XL140.0051
Contact Tip E-CU M6*28*0.9mm XL140.0169
Contact Tip E-CU M6*28*1.0mm XL140.0242
Contact Tip E-CU M6*28*1.2mm XL140.0379
Contact Tip E-CU M6*28*1.4mm XL140.0516
Contact Tip E-CU M6*28*1.6mm XL140.0555
Contact Tip CuCrZr M6*28*0.8mm XL140.0054
Contact Tip CuCrZr M6*28*1.0mm XL140.0245
Contact Tip CuCrZr M6*28*1.2mm XL140.0382
Contact Tip CuCrZr M6*28*1.4mm XL140.0519
Contact Tip CuCrZr M6*28*1.6mm XL140.0558
Contact Tip E-CU Aluminum M6*28*0.8mm XL141.0001
Contact Tip E-CU Aluminum M6*28*1.0mm XL141.0006
Contact Tip E-CU Aluminum M6*28*1.2mm XL141.0010
Contact Tip E-CU Aluminum M6*28*1.4mm XL141.0019
Contact Tip E-CU Aluminum M6*28*1.6mm XL141.0020
C Contact Tip Holder M6*22 XL142.0007
Contact Tip Holder M8*22 XL142.0082
Contact Tip Holder M6*25 XL142.0012
Contact Tip Holder M8*25 XL142.0026
D Gas Diffuser DMC XL018.0116
Gas Diffuser Ceramic XL018.0141
E Red Steel Liner 1.0-1.2mm 3m XL124.0026
Red Steel Liner 1.0-1.2mm 4m XL124.0031
Red Steel Liner 1.0-1.2mm 5m XL124.0035
1 Swan Neck XLAT018.0001
2 Front Handle XL180.D078
3 Switch XL185.0031S
4 Cable Ball Joint & Support Spring Middle XL400.1010M
5 XLAT26 Power Cable 3m 30mm² XLAT160.0239
XLAT26 Power Cable 4m 30mm² XLAT160.0255
XLAT26 Power Cable 5m 30mm² XLAT160.0267
6 Rear Handle & Support Spring XL501.2248X
7 Rear Connector Nut XL500.0213X
8 Euro Central Connector KZ-2 XL501.0003
9 Liner Positioner Nut M10x1 XL501.0082
