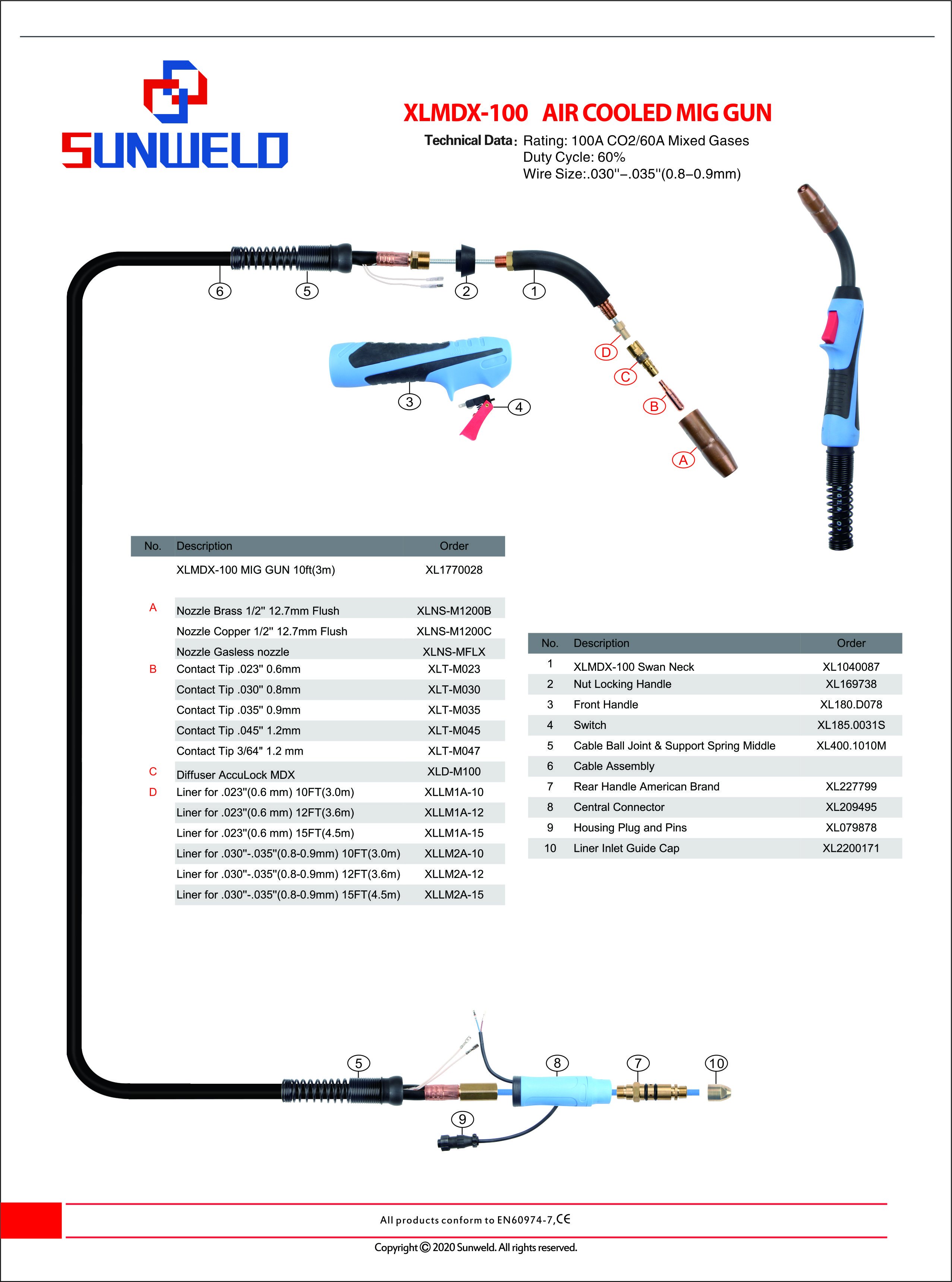

| XLMDX-100 AIR COOLED MIG GUN | ||
| Technical Data： | Rating: 100A CO2/60A Mixed Gases | |
| Duty Cycle: 60% | ||
| Wire Size:.030''-.035''(0.8-0.9mm) | ||
| No. | Description | Order |
| XLMDX-100 MIG GUN 10ft(3m) | XL1770028 | |
| A | Nozzle Brass 1/2'' 12.7mm Flush | XLNS-M1200B |
| Nozzle Copper 1/2'' 12.7mm Flush | XLNS-M1200C | |
| Nozzle Gasless nozzle | XLNS-MFLX | |
| B | Contact Tip .023'' 0.6mm | XLT-M023 |
| Contact Tip .030'' 0.8mm | XLT-M030 | |
| Contact Tip .035'' 0.9mm | XLT-M035 | |
| Contact Tip .045'' 1.2mm | XLT-M045 | |
| Contact Tip 3/64" 1.2 mm | XLT-M047 | |
| C | Diffuser AccuLock MDX | XLD-M100 |
| D | Liner for .023''(0.6 mm) 10FT(3.0m) | XLLM1A-10 |
| Liner for .023''(0.6 mm) 12FT(3.6m) | XLLM1A-12 | |
| Liner for .023''(0.6 mm) 15FT(4.5m) | XLLM1A-15 | |
| Liner for .030''-.035''(0.8-0.9mm) 10FT(3.0m) | XLLM2A-10 | |
| Liner for .030''-.035''(0.8-0.9mm) 12FT(3.6m) | XLLM2A-12 | |
| Liner for .030''-.035''(0.8-0.9mm) 15FT(4.5m) | XLLM2A-15 | |
| No. | Description | Order |
| 1 | XLMDX-100 Swan Neck | XL1040087 |
| 2 | Nut Locking Handle | XL169738 |
| 3 | Front Handle | XL180.D078 |
| 4 | Switch | XL185.0031S |
| 5 | Cable Ball Joint & Support Spring Middle | XL400.1010M |
| 6 | Cable Assembly | |
| 7 | Rear Handle American Brand | XL227799 |
| 8 | Central Connector | XL209495 |
| 9 | Housing Plug and Pins | XL079878 |
| 10 | Liner Inlet Guide Cap | XL2200171 |
