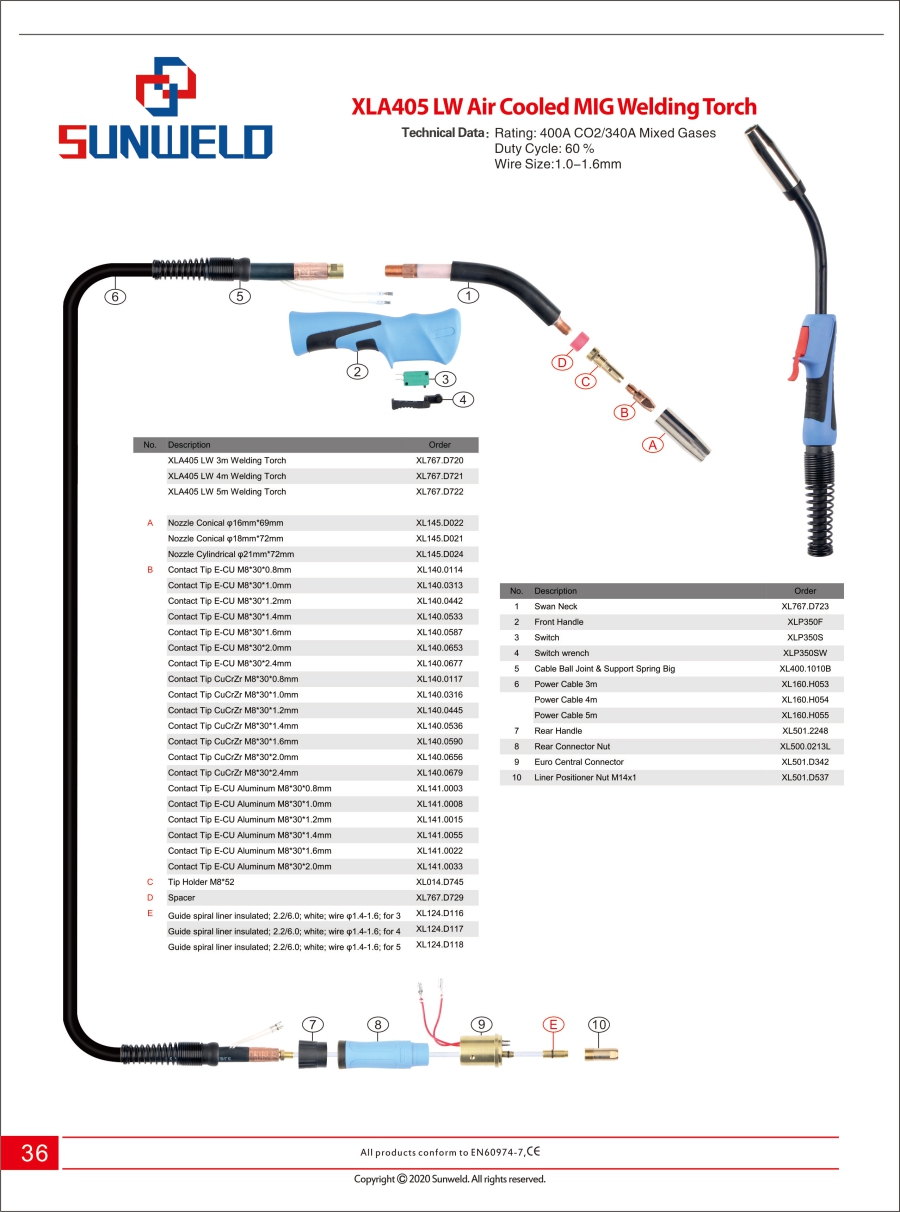

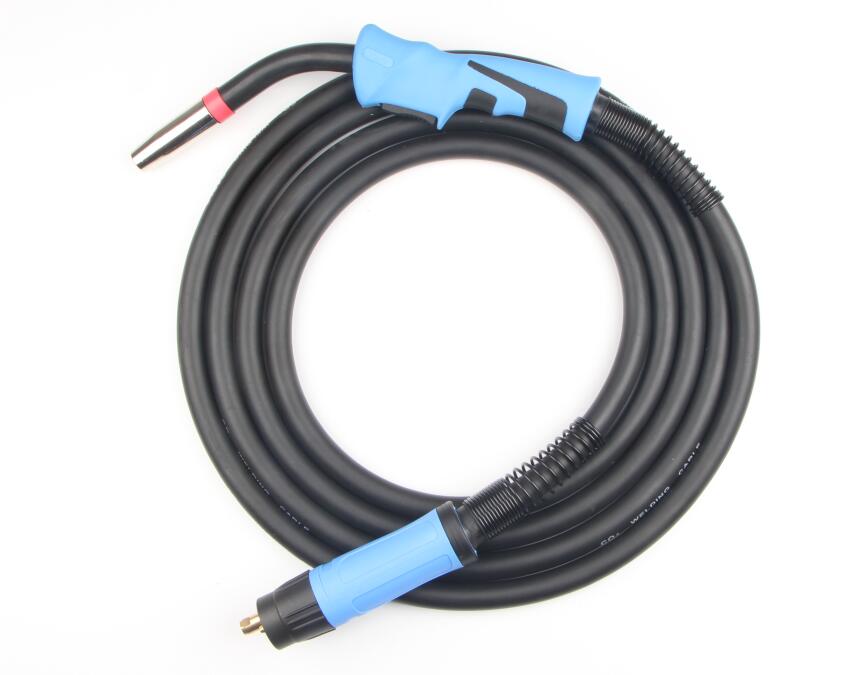

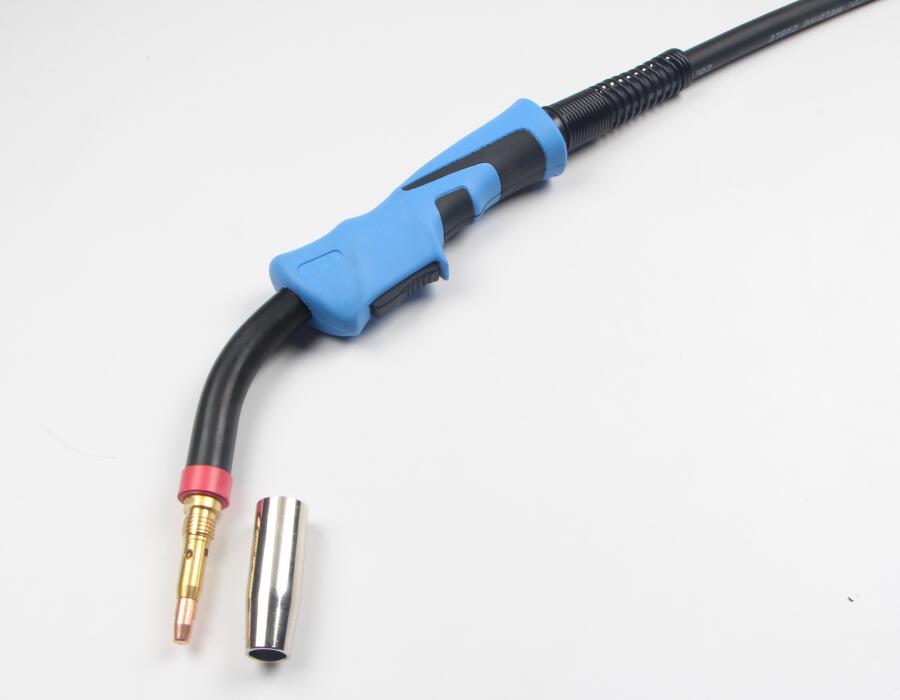

XLA405 LW Air Cooled MIG Welding Torch
Technical Data：	Rating: 400A CO2/340A Mixed Gases
	Duty Cycle:60%
	Wire Size:1.0-1.6mm
	Description	Order
	XLA405 LW 3m Welding Torch	XL767.D720
	XLA405 LW 4m Welding Torch	XL767.D721
	XLA405 LW 5m Welding Torch	XL767.D722
A	Nozzle Conical φ16mm*69mm	XL145.D022
	Nozzle Conical φ18mm*72mm	XL145.D021
	Nozzle Cylindrical φ21mm*72mm	XL145.D024
B	Contact Tip E-CU M8*30*0.8mm	XL140.0114
	Contact Tip E-CU M8*30*1.0mm	XL140.0313
	Contact Tip E-CU M8*30*1.2mm	XL140.0442
	Contact Tip E-CU M8*30*1.4mm	XL140.0533
	Contact Tip E-CU M8*30*1.6mm	XL140.0587
	Contact Tip E-CU M8*30*2.0mm	XL140.0653
	Contact Tip E-CU M8*30*2.4mm	XL140.0677
	Contact Tip CuCrZr M8*30*0.8mm	XL140.0117
	Contact Tip CuCrZr M8*30*1.0mm	XL140.0316
	Contact Tip CuCrZr M8*30*1.2mm	XL140.0445
	Contact Tip CuCrZr M8*30*1.4mm	XL140.0536
	Contact Tip CuCrZr M8*30*1.6mm	XL140.0590
	Contact Tip CuCrZr M8*30*2.0mm	XL140.0656
	Contact Tip CuCrZr M8*30*2.4mm	XL140.0679
	Contact Tip E-CU Aluminum M8*30*0.8mm	XL141.0003
	Contact Tip E-CU Aluminum M8*30*1.0mm	XL141.0008
	Contact Tip E-CU Aluminum M8*30*1.2mm	XL141.0015
	Contact Tip E-CU Aluminum M8*30*1.4mm	XL141.0055
	Contact Tip E-CU Aluminum M8*30*1.6mm	XL141.0022
	Contact Tip E-CU Aluminum M8*30*2.0mm	XL141.0033
C	Tip Holder M8*52	XL014.D745
D	Spacer	XL767.D729
E	Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 3.0m	XL124.D116
	Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 4.0m	XL124.D117
	Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 5.0m	XL124.D118
No.	Description	Order
1	Swan Neck	XL767.D723
2	Front Handle	XLP350F
3	Switch	XLP350S
4	Switch Wrench	XLP350SW
5	Cable Ball Joint & Support Spring Big	XL400.1010B
6	Power Cable 3m	XL160.H053
	Power Cable 4m	XL160.H054
	Power Cable 5m	XL160.H055
7	Rear Handle	XL501.2248
8	Rear Connector Nut	XL500.0213L
9	Euro Central Connector	XL501.D342
10	Liner Positioner Nut M14x1	XL501.D537
