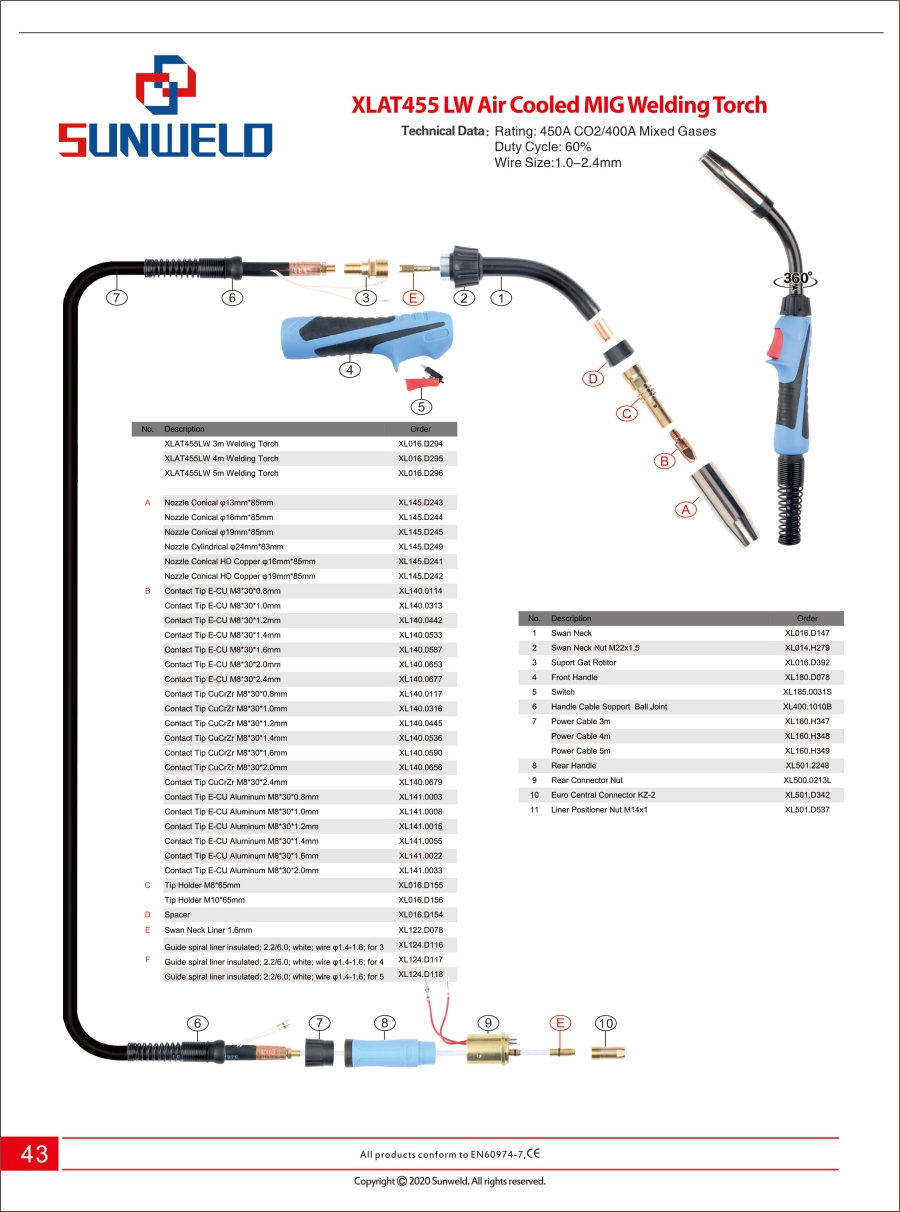

| XLAT455 LW Air Cooled MIG Welding Torch | ||
| Technical data： | Rating: 450A CO2/400A Mixed Gases | |
| Duty Cycle: 60% | ||
| Wire Size:1.0-2.4mm | ||
| No. | Description | Order |
| XLAT455LW 3m Welding Torch | XL016.D294 | |
| XLAT455LW 4m Welding Torch | XL016.D295 | |
| XLAT455LW 5m Welding Torch | XL016.D296 | |
| A | Nozzle Conical φ13mm*85mm | XL145.D243 |
| Nozzle Conical φ16mm*85mm | XL145.D244 | |
| Nozzle Conical φ19mm*85mm | XL145.D245 | |
| Nozzle Cylindrical φ24mm*83mm | XL145.D249 | |
| Nozzle Conical HD Copper φ16mm*85mm | XL145.D241 | |
| Nozzle Conical HD Copper φ19mm*85mm | XL145.D242 | |
| B | Contact Tip E-CU M8*30*0.8mm | XL140.0114 |
| Contact Tip E-CU M8*30*1.0mm | XL140.0313 | |
| Contact Tip E-CU M8*30*1.2mm | XL140.0442 | |
| Contact Tip E-CU M8*30*1.4mm | XL140.0533 | |
| Contact Tip E-CU M8*30*1.6mm | XL140.0587 | |
| Contact Tip E-CU M8*30*2.0mm | XL140.0653 | |
| Contact Tip E-CU M8*30*2.4mm | XL140.0677 | |
| Contact Tip CuCrZr M8*30*0.8mm | XL140.0117 | |
| Contact Tip CuCrZr M8*30*1.0mm | XL140.0316 | |
| Contact Tip CuCrZr M8*30*1.2mm | XL140.0445 | |
| Contact Tip CuCrZr M8*30*1.4mm | XL140.0536 | |
| Contact Tip CuCrZr M8*30*1.6mm | XL140.0590 | |
| Contact Tip CuCrZr M8*30*2.0mm | XL140.0656 | |
| Contact Tip CuCrZr M8*30*2.4mm | XL140.0679 | |
| Contact Tip E-CU Aluminum M8*30*0.8mm | XL141.0003 | |
| Contact Tip E-CU Aluminum M8*30*1.0mm | XL141.0008 | |
| Contact Tip E-CU Aluminum M8*30*1.2mm | XL141.0015 | |
| Contact Tip E-CU Aluminum M8*30*1.4mm | XL141.0055 | |
| Contact Tip E-CU Aluminum M8*30*1.6mm | XL141.0022 | |
| Contact Tip E-CU Aluminum M8*30*2.0mm | XL141.0033 | |
| C | Tip Holder M8*65mm | XL016.D155 |
| Tip Holder M10*65mm | XL016.D156 | |
| D | Spacer | XL016.D154 |
| E | Swan Neck Liner 1.6mm | XL122.D078 |
| Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 3.0m | XL124.D116 | |
| F | Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 4.0m | XL124.D117 |
| Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 5.0m | XL124.D118 | |
| No. | Description | Order |
| 1 | Swan Neck | XL016.D147 |
| 2 | Swan Neck Nut M22x1.5 | XL014.H279 |
| 3 | Suport Gat Rotitor | XL016.D392 |
| 4 | Front Handle | XL180.D078 |
| 5 | Switch | XL185.0031S |
| 6 | Handle Cable Support Ball Joint | XL400.1010B |
| 7 | Power Cable 3m | XL160.H347 |
| Power Cable 4m | XL160.H348 | |
| Power Cable 5m | XL160.H349 | |
| 8 | Rear Handle | XL501.2248 |
| 9 | Rear Connector Nut | XL500.0213L |
| 10 | Euro Central Connector KZ-2 | XL501.D342 |
| 11 | Liner Positioner Nut M14x1 | XL501.D537 |
