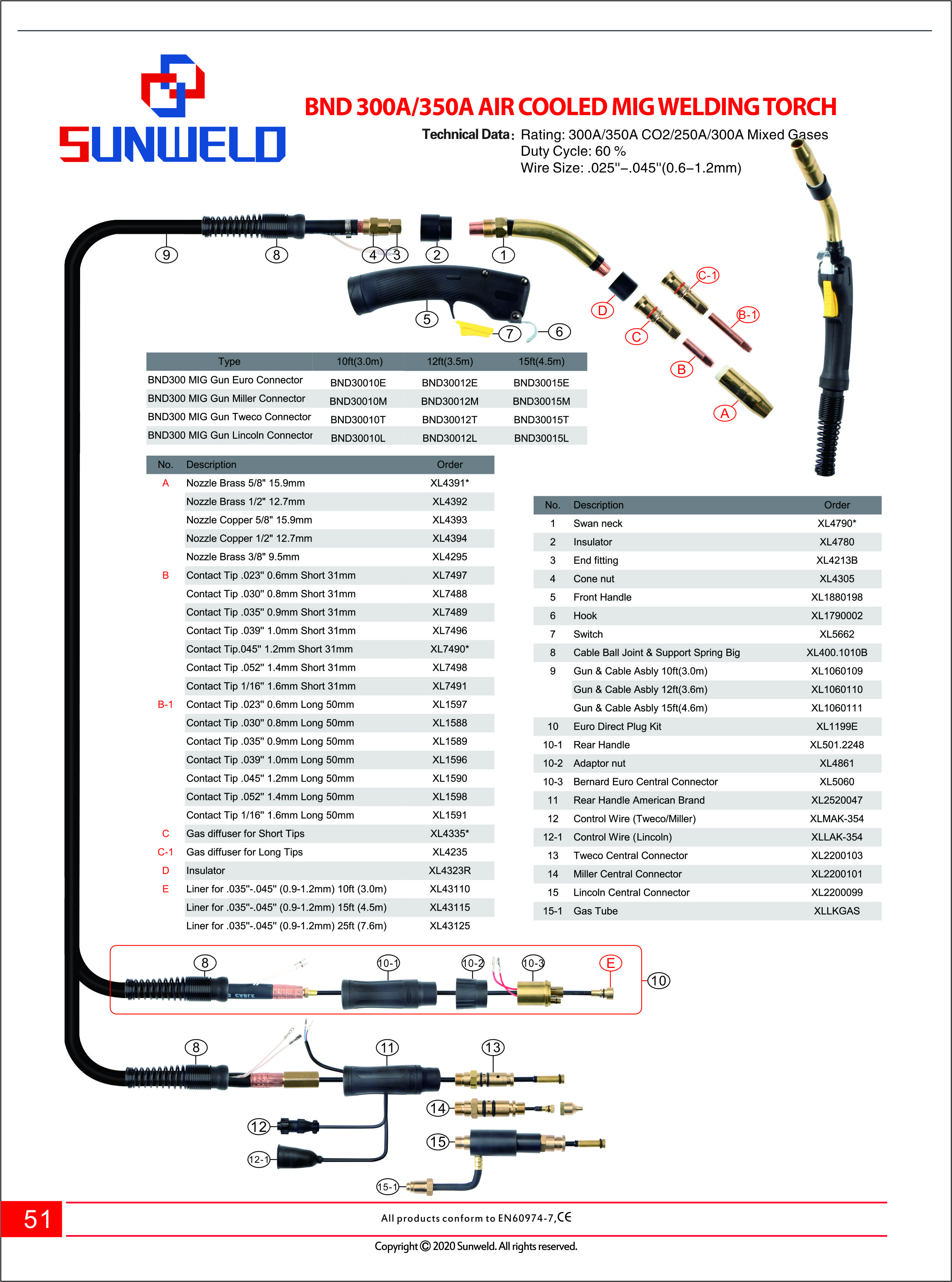

| BND 300A/350A AIR COOLED MIG WELDING TORCH | ||
| Technical Data： | Rating: 300A/350A CO2/250A/300A Mixed Gases | |
| Duty Cycle: 60 % | ||
| Wire Size: .025''-.045''(0.6-1.2mm) | ||
| Type | 10ft(3.0m) | |
| BND300 MIG Gun Euro Connector | XLBND30010E | |
| BND300 MIG Gun Miller Connector | XLBND30010M | |
| BND300 MIG Gun Tweco Connector | XLBND30010T | |
| BND300 MIG Gun Lincoln Connector | XLBND30010L | |
| No. | Description | Order |
| A | Nozzle Brass 5/8" 15.9mm | XL4391* |
| Nozzle Brass 1/2" 12.7mm | XL4392 | |
| Nozzle Copper 5/8" 15.9mm | XL4393 | |
| Nozzle Copper 1/2" 12.7mm | XL4394 | |
| Nozzle Brass 3/8" 9.5mm | XL4295 | |
| B | Contact Tip .023'' 0.6mm Short 31mm | XL7497 |
| Contact Tip .030'' 0.8mm Short 31mm | XL7488 | |
| Contact Tip .035'' 0.9mm Short 31mm | XL7489 | |
| Contact Tip .039'' 1.0mm Short 31mm | XL7496 | |
| Contact Tip.045'' 1.2mm Short 31mm | XL7490* | |
| Contact Tip .052'' 1.4mm Short 31mm | XL7498 | |
| Contact Tip 1/16'' 1.6mm Short 31mm | XL7491 | |
| B-1 | Contact Tip .023'' 0.6mm Long 50mm | XL1597 |
| Contact Tip .030'' 0.8mm Long 50mm | XL1588 | |
| Contact Tip .035'' 0.9mm Long 50mm | XL1589 | |
| Contact Tip .039'' 1.0mm Long 50mm | XL1596 | |
| Contact Tip .045'' 1.2mm Long 50mm | XL1590 | |
| Contact Tip .052'' 1.4mm Long 50mm | XL1598 | |
| Contact Tip 1/16'' 1.6mm Long 50mm | XL1591 | |
| C | Gas diffuser for Short Tips | XL4335* |
| C-1 | Gas diffuser for Long Tips | XL4235 |
| D | Insulator | XL4323R |
| E | Liner for .035''-.045'' (0.9-1.2mm) 10ft (3.0m) | XL43110 |
| Liner for .035''-.045'' (0.9-1.2mm) 15ft (4.5m) | XL43115 | |
| Liner for .035''-.045'' (0.9-1.2mm) 25ft (7.6m) | XL43125 | |
| No. | Description | Order |
| 1 | Swan neck | XL4790* |
| 2 | Insulator | XL4780 |
| 3 | End fitting | XL4213B |
| 4 | Cone nut | XL4305 |
| 5 | Front Handle | XL1880198 |
| 6 | Hook | XL1790002 |
| 7 | Switch | XL5662 |
| 8 | Cable Ball Joint & Support Spring Big | XL400.1010B |
| 9 | Gun & Cable Asbly 10ft(3.0m) | XL1060109 |
| Gun & Cable Asbly 12ft(3.6m) | XL1060110 | |
| Gun & Cable Asbly 15ft(4.6m) | XL1060111 | |
| 10 | Euro Direct Plug Kit | XL1199E |
| 10-1 | Rear Handle | XL501.2248 |
| 10-2 | Adaptor nut | XL4861 |
| 10-3 | Bernard Euro Central Connector | XL5060 |
| 11 | Rear Handle American Brand | XL2520047 |
| 12 | Control Wire (Tweco/Miller) | XLMAK-354 |
| 12-1 | Control Wire (TLincoln) | XLLAK-354 |
| 13 | Tweco Central Connector | XL2200103 |
| 14 | Miller Central Connector | XL2200101 |
| 15 | Lincoln Central Connector | XL2200099 |
| 15-1 | Gas Tube | XLLKGAS |
