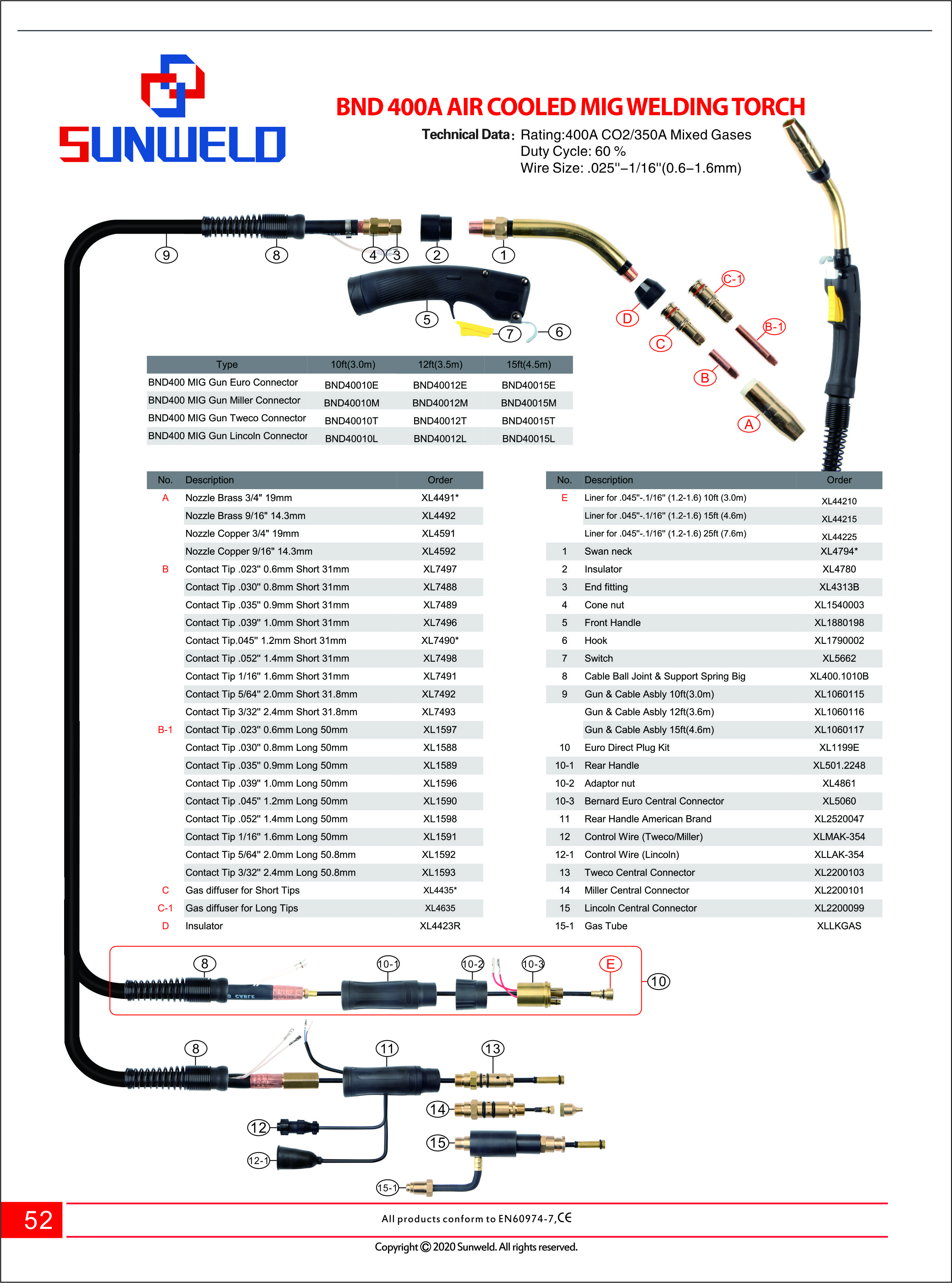

| Type | 10ft(3.0m) | |
| BND400 MIG Gun Euro Connector | XLBND40010E | |
| BND400 MIG Gun Miller Connector | XLBND40010M | |
| BND400 MIG Gun Tweco Connector | XLBND40010T | |
| BND400 MIG Gun Lincoln Connector | XLBND40010L | |
| No. | Description | Order |
| A | Nozzle Brass 3/4" 19mm | XL4491* |
| Nozzle Brass 9/16" 14.3mm | XL4492 | |
| Nozzle Copper 3/4" 19mm | XL4591 | |
| Nozzle Copper 9/16" 14.3mm | XL4592 | |
| B | Contact Tip .023'' 0.6mm Short 31mm | XL7497 |
| Contact Tip .030'' 0.8mm Short 31mm | XL7488 | |
| Contact Tip .035'' 0.9mm Short 31mm | XL7489 | |
| Contact Tip .039'' 1.0mm Short 31mm | XL7496 | |
| Contact Tip.045'' 1.2mm Short 31mm | XL7490* | |
| Contact Tip .052'' 1.4mm Short 31mm | XL7498 | |
| Contact Tip 1/16'' 1.6mm Short 31mm | XL7491 | |
| Contact Tip 5/64'' 2.0mm Short 31.8mm | XL7492 | |
| Contact Tip 3/32'' 2.4mm Short 31.8mm | XL7493 | |
| B-1 | Contact Tip .023'' 0.6mm Long 50mm | XL1597 |
| Contact Tip .030'' 0.8mm Long 50mm | XL1588 | |
| Contact Tip .035'' 0.9mm Long 50mm | XL1589 | |
| Contact Tip .039'' 1.0mm Long 50mm | XL1596 | |
| Contact Tip .045'' 1.2mm Long 50mm | XL1590 | |
| Contact Tip .052'' 1.4mm Long 50mm | XL1598 | |
| Contact Tip 1/16'' 1.6mm Long 50mm | XL1591 | |
| Contact Tip 5/64'' 2.0mm Long 50.8mm | XL1592 | |
| Contact Tip 3/32'' 2.4mm Long 50.8mm | XL1593 | |
| C | Gas diffuser for Short Tips | XL4435* |
| C-1 | Gas diffuser for Long Tips | XL4635 |
| D | Insulator | XL4423R |
| E | Liner for .045''-.1/16'' (1.2-1.6) 10ft (3.0m) | XL44210 |
| Liner for .045''-.1/16'' (1.2-1.6) 15ft (4.6m) | XL44215 | |
| Liner for .045''-.1/16'' (1.2-1.6) 25ft (7.6m) | XL44225 | |
| No. | Description | Order |
| 1 | Swan neck | XL4794* |
| 2 | Insulator | XL4780 |
| 3 | End fitting | XL4313B |
| 4 | Cone nut | XL1540003 |
| 5 | Front Handle | XL1880198 |
| 6 | Hook | XL1790002 |
| 7 | Switch | XL5662 |
| 8 | Cable Ball Joint & Support Spring Big | XL400.1010B |
| 9 | Gun & Cable Asbly 10ft(3.0m) | XL1060115 |
| Gun & Cable Asbly 12ft(3.6m) | XL1060116 | |
| Gun & Cable Asbly 15ft(4.6m) | XL1060117 | |
| 10 | Euro Direct Plug Kit | XL1199E |
| 10-1 | Rear Handle | XL501.2248 |
| 10-2 | Adaptor nut | XL4861 |
| 10-3 | Bernard Euro Central Connector | XL5060 |
| 11 | Rear Handle American Brand | XL2520047 |
| 12 | Control Wire (Tweco/Miller) | XLMAK-354 |
| 12-1 | Control Wire (TLincoln) | XLLAK-354 |
| 13 | Tweco Central Connector | XL2200103 |
| 14 | Miller Central Connector | XL2200101 |
| 15 | Lincoln Central Connector | XL2200099 |
| 15-1 | Gas Tube | XLLKGAS |
