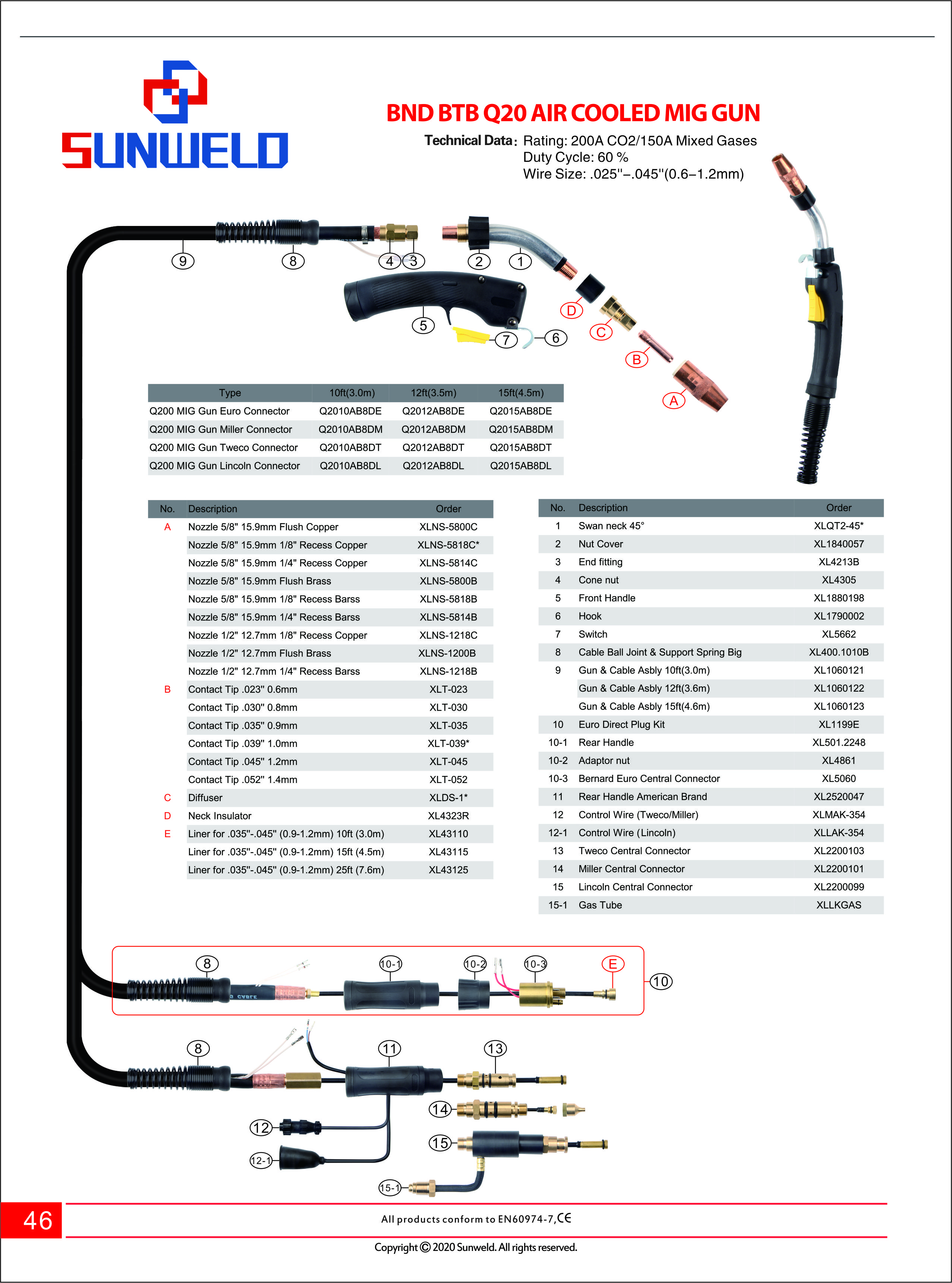

BND BTB Q20 AIR COOLED MIG GUN
Technical Data：	Rating: 200A CO2/150A Mixed Gases
	Duty Cycle: 60%
	Wire Size: .025''-.045''(0.6-1.2mm)
	Type	10ft(3.0m)
	Q200 MIG Gun Euro Connector	Q2010AB8DE
	Q200 MIG Gun Miller Connector	Q2010AB8DM
	Q200 MIG Gun Tweco Connector	Q2010AB8DT
	Q200 MIG Gun Lincoln Connector	Q2010AB8DL
No.	Description	Order
A	Nozzle 5/8" 15.9mm Flush Copper	XLNS-5800C
	Nozzle 5/8" 15.9mm 1/8" Recess Copper	XLNS-5818C*
	Nozzle 5/8" 15.9mm 1/4" Recess Copper	XLNS-5814C
	Nozzle 5/8" 15.9mm Flush Brass	XLNS-5800B
	Nozzle 5/8" 15.9mm 1/8" Recess Barss	XLNS-5818B
	Nozzle 5/8" 15.9mm 1/4" Recess Barss	XLNS-5814B
	Nozzle 1/2" 12.7mm 1/8" Recess Copper	XLNS-1218C
	Nozzle 1/2" 12.7mm Flush Brass	XLNS-1200B
	Nozzle 1/2" 12.7mm 1/4" Recess Barss	XLNS-1218B
B	Contact Tip .023'' 0.6mm	XLT-023
	Contact Tip .030'' 0.8mm	XLT-030
	Contact Tip .035'' 0.9mm	XLT-035
	Contact Tip .039'' 1.0mm	XLT-039*
	Contact Tip .045'' 1.2mm	XLT-045
	Contact Tip .052'' 1.4mm	XLT-052
C	Diffuser	XLDS-1*
D	Neck Insulator	XL4323R
E	Liner for .035''-.045'' (0.9-1.2mm) 10ft (3.0m)	XL43110
	Liner for .035''-.045'' (0.9-1.2mm) 15ft (4.5m)	XL43115
	Liner for .035''-.045'' (0.9-1.2mm) 25ft (7.6m)	XL43125
No.	Description	Order
1	Swan neck 45°	XLQT2-45*
2	Nut Cover	XL1840057
3	End fitting	XL4213B
4	Cone nut	XL4305
5	Front Handle	XL1880198
6	Hook	XL1790002
7	Switch	XL5662
8	Cable Ball Joint & Support Spring Big	XL400.1010B
9	Gun & Cable Asbly 10ft(3.0m)	XL1060121
	Gun & Cable Asbly 12ft(3.6m)	XL1060122
	Gun & Cable Asbly 15ft(4.6m)	XL1060123
10	Euro Direct Plug Kit	XL1199E
10-1	Rear Handle	XL501.2248
10-2	Adaptor nut	XL4861
10-3	Bernard Euro Central Connector	XL5060
11	Rear Handle American Brand	XL2520047
12	Control Wire (Tweco/Miller)	XLMAK-354
12-1	Control Wire (TLincoln)	XLLAK-354
13	Tweco Central Connector	XL2200103
14	Miller Central Connector	XL2200101
15	Lincoln Central Connector	XL2200099
15-1	Gas Tube	XLLKGAS
