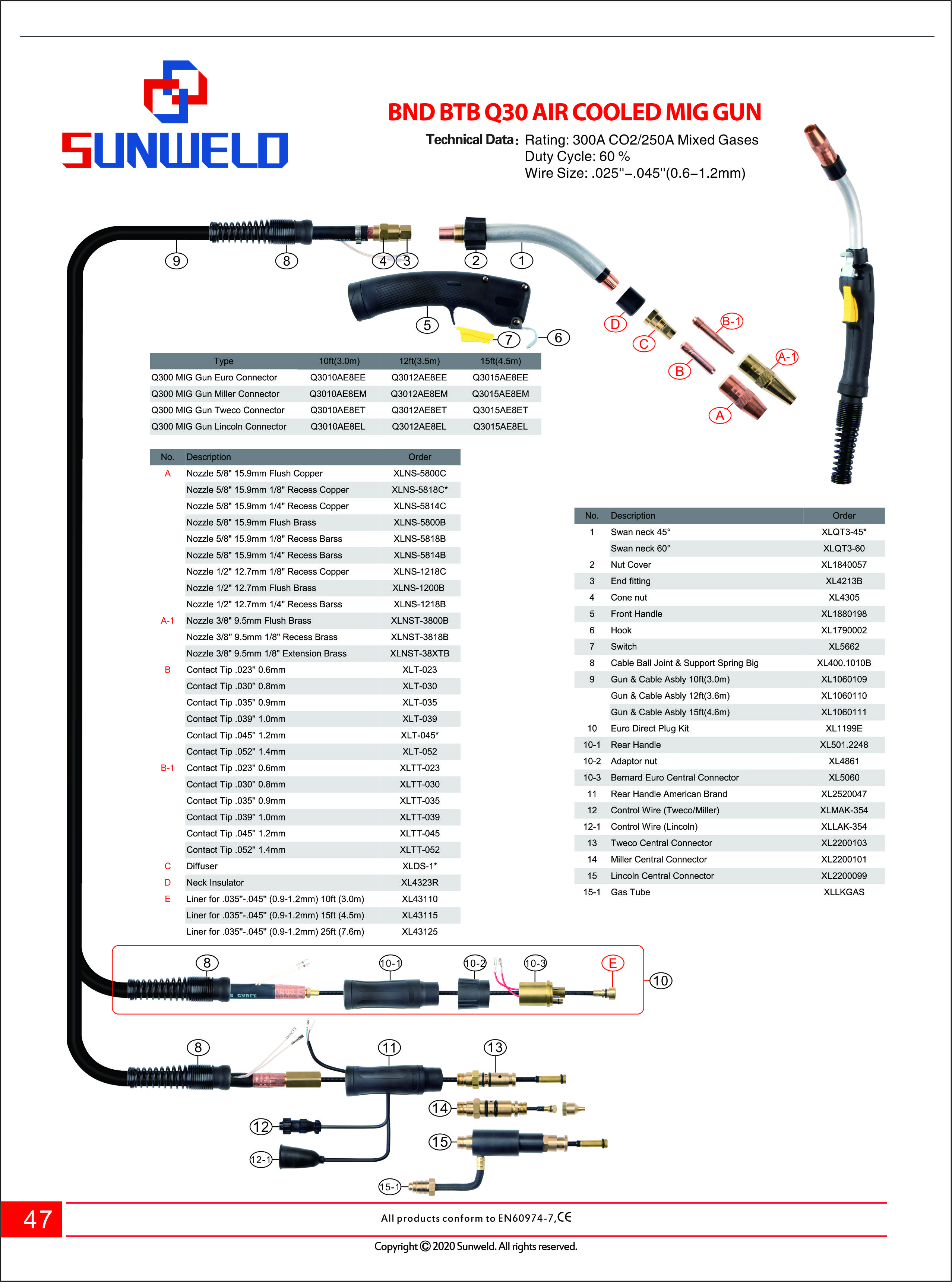

| BND BTB Q30 AIR COOLED MIG GUN | ||
| Technical Data： | Rating: 300A CO2/250A Mixed Gases | |
| Duty Cycle: 60% | ||
| Wire Size: .025''-.045''(0.6-1.2mm) | ||
| Type | 10ft(3.0m) | |
| Q300 MIG Gun Euro Connector | Q3010AE8EE | |
| Q300 MIG Gun Miller Connector | Q3010AE8EM | |
| Q300 MIG Gun Tweco Connector | Q3010AE8ET | |
| Q300 MIG Gun Lincoln Connector | Q3010AE8EL | |
| No. | Description | Order |
| A | Nozzle 5/8" 15.9mm Flush Copper | XLNS-5800C |
| Nozzle 5/8" 15.9mm 1/8" Recess Copper | XLNS-5818C* | |
| Nozzle 5/8" 15.9mm 1/4" Recess Copper | XLNS-5814C | |
| Nozzle 5/8" 15.9mm Flush Brass | XLNS-5800B | |
| Nozzle 5/8" 15.9mm 1/8" Recess Barss | XLNS-5818B | |
| Nozzle 5/8" 15.9mm 1/4" Recess Barss | XLNS-5814B | |
| Nozzle 1/2" 12.7mm 1/8" Recess Copper | XLNS-1218C | |
| Nozzle 1/2" 12.7mm Flush Brass | XLNS-1200B | |
| Nozzle 1/2" 12.7mm 1/4" Recess Barss | XLNS-1218B | |
| A-1 | Nozzle 3/8" 9.5mm Flush Brass | XLNST-3800B |
| Nozzle 3/8'' 9.5mm 1/8" Recess Brass | XLNST-3818B | |
| Nozzle 3/8" 9.5mm 1/8" Extension Brass | XLNST-38XTB | |
| B | Contact Tip .023'' 0.6mm | XLT-023 |
| Contact Tip .030'' 0.8mm | XLT-030 | |
| Contact Tip .035'' 0.9mm | XLT-035 | |
| Contact Tip .039'' 1.0mm | XLT-039 | |
| Contact Tip .045'' 1.2mm | XLT-045* | |
| Contact Tip .052'' 1.4mm | XLT-052 | |
| B-1 | Contact Tip .023'' 0.6mm | XLTT-023 |
| Contact Tip .030'' 0.8mm | XLTT-030 | |
| Contact Tip .035'' 0.9mm | XLTT-035 | |
| Contact Tip .039'' 1.0mm | XLTT-039 | |
| Contact Tip .045'' 1.2mm | XLTT-045 | |
| Contact Tip .052'' 1.4mm | XLTT-052 | |
| C | Diffuser | XLDS-1* |
| D | Neck Insulator | XL4323R |
| E | Liner for .035''-.045'' (0.9-1.2mm) 10ft (3.0m) | XL44110 |
| Liner for .035''-.045'' (0.9-1.2mm) 15ft (4.5m) | XL44115 | |
| Liner for .035''-.045'' (0.9-1.2mm) 25ft (7.6m) | XL44125 | |
| No. | Description | Order |
| 1 | Swan neck 45° | XLQT3-45* |
| Swan neck 60° | XLQT3-60 | |
| 2 | Nut Cover | XL1840057 |
| 3 | End fitting | XL4213B |
| 4 | Cone nut | XL4305 |
| 5 | Front Handle | XL1880198 |
| 6 | Hook | XL1790002 |
| 7 | Switch | XL5662 |
| 8 | Cable Ball Joint & Support Spring Big | XL400.1010B |
| 9 | Gun & Cable Asbly 10ft(3.0m) | XL1060109 |
| Gun & Cable Asbly 12ft(3.6m) | XL1060110 | |
| Gun & Cable Asbly 15ft(4.6m) | XL1060111 | |
| 10 | Euro Direct Plug Kit | XL1199E |
| 10-1 | Rear Handle | XL501.2248 |
| 10-2 | Adaptor nut | XL4861 |
| 10-3 | Bernard Euro Central Connector | XL5060 |
| 11 | Rear Handle American Brand | XL2520047 |
| 12 | Control Wire (Tweco/Miller) | XLMAK-354 |
| 12-1 | Control Wire (TLincoln) | XLLAK-354 |
| 13 | Tweco Central Connector | XL2200103 |
| 14 | Miller Central Connector | XL2200101 |
| 15 | Lincoln Central Connector | XL2200099 |
| 15-1 | Gas Tube | XLLKGAS |
