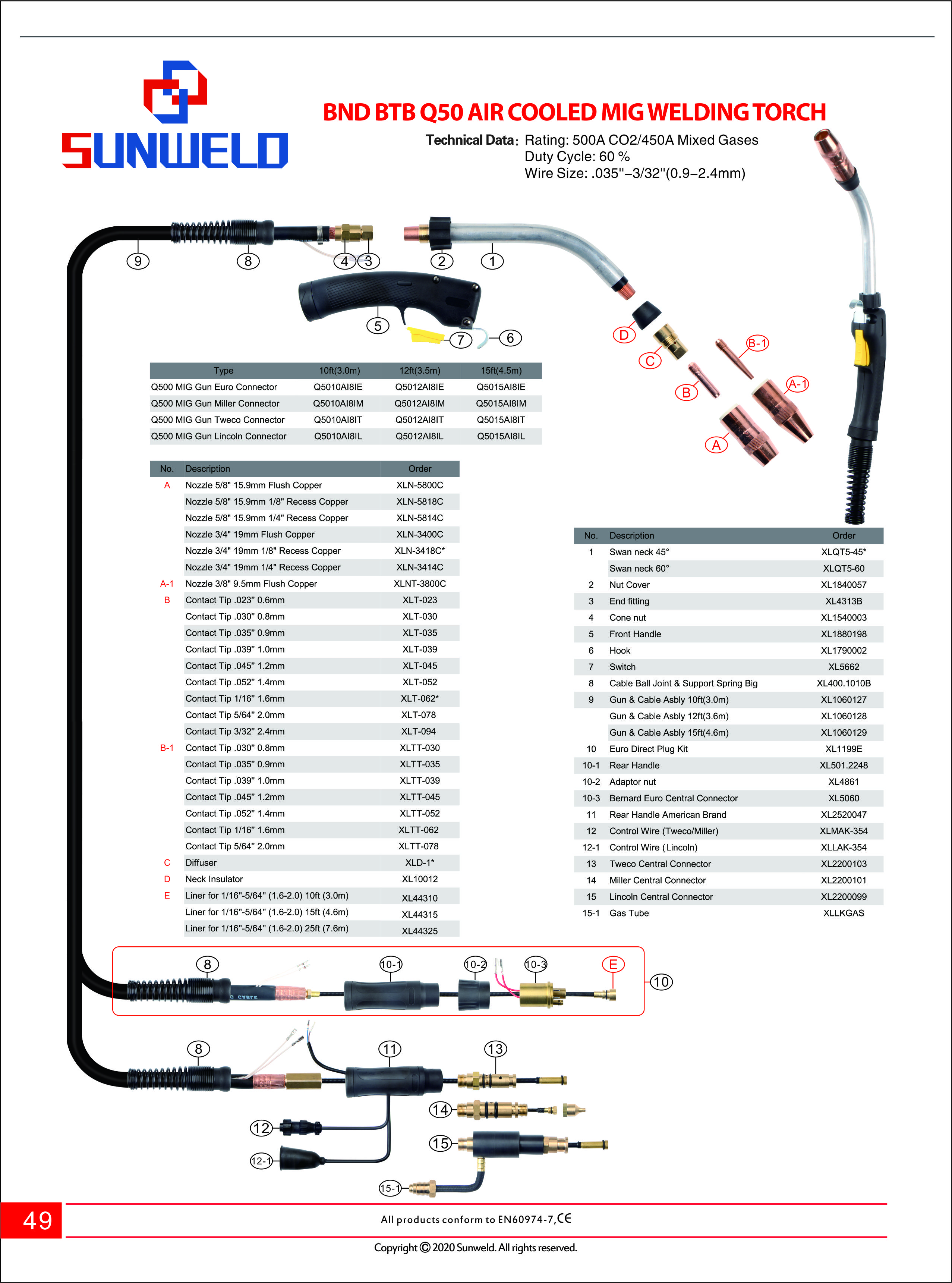

| BND BTB Q50 AIR COOLED MIG WELDING TORCH | ||
| Technical Data： | Rating: 500A CO2/450A Mixed Gases | |
| Duty Cycle: 60% | ||
| Wire Size: .035''-3/32''(0.9-2.4mm) | ||
| Type | 10ft(3.0m) | |
| Q500 MIG Gun Euro Connector | Q5010AI8IE | |
| Q500 MIG Gun Miller Connector | Q5010AI8IM | |
| Q500 MIG Gun Tweco Connector | Q5010AI8IT | |
| Q500 MIG Gun Lincoln Connector | Q5010AI8IL | |
| No. | Description | Order |
| A | Nozzle 5/8" 15.9mm Flush Copper | XLN-5800C |
| Nozzle 5/8" 15.9mm 1/8" Recess Copper | XLN-5818C | |
| Nozzle 5/8" 15.9mm 1/4" Recess Copper | XLN-5814C | |
| Nozzle 3/4" 19mm Flush Copper | XLN-3400C | |
| Nozzle 3/4" 19mm 1/8" Recess Copper | XLN-3418C* | |
| Nozzle 3/4" 19mm 1/4" Recess Copper | XLN-3414C | |
| A-1 | Nozzle 3/8" 9.5mm Flush Copper | XLNT-3800C |
| B | Contact Tip .023'' 0.6mm | XLT-023 |
| Contact Tip .030'' 0.8mm | XLT-030 | |
| Contact Tip .035'' 0.9mm | XLT-035 | |
| Contact Tip .039'' 1.0mm | XLT-039 | |
| Contact Tip .045'' 1.2mm | XLT-045 | |
| Contact Tip .052'' 1.4mm | XLT-052 | |
| Contact Tip 1/16'' 1.6mm | XLT-062* | |
| Contact Tip 5/64'' 2.0mm | XLT-078 | |
| Contact Tip 3/32'' 2.4mm | XLT-094 | |
| B-1 | Contact Tip .030'' 0.8mm | XLTT-030 |
| Contact Tip .035'' 0.9mm | XLTT-035 | |
| Contact Tip .039'' 1.0mm | XLTT-039 | |
| Contact Tip .045'' 1.2mm | XLTT-045 | |
| Contact Tip .052'' 1.4mm | XLTT-052 | |
| Contact Tip 1/16'' 1.6mm | XLTT-062 | |
| Contact Tip 5/64'' 2.0mm | XLTT-078 | |
| C | Diffuser | XLD-1* |
| D | Neck Insulator | XL10012 |
| E | Liner for 1/16''-5/64'' (1.6-2.0) 10ft (3.0m) | XL44310 |
| Liner for 1/16''-5/64'' (1.6-2.0) 15ft (4.6m) | XL44315 | |
| Liner for 1/16''-5/64'' (1.6-2.0) 25ft (7.6m) | XL44325 | |
| No. | Description | Order |
| 1 | Swan neck 45° | XLQT5-45* |
| Swan neck 60° | XLQT5-60 | |
| 2 | Nut Cover | XL1840057 |
| 3 | End fitting | XL4313B |
| 4 | Cone nut | XL1540003 |
| 5 | Front Handle | XL1880198 |
| 6 | Hook | XL1790002 |
| 7 | Switch | XL5662 |
| 8 | Cable Ball Joint & Support Spring Big | XL400.1010B |
| 9 | Gun & Cable Asbly 10ft(3.0m) | XL1060127 |
| Gun & Cable Asbly 12ft(3.6m) | XL1060128 | |
| Gun & Cable Asbly 15ft(4.6m) | XL1060129 | |
| 10 | Euro Direct Plug Kit | XL1199E |
| 10-1 | Rear Handle | XL501.2248 |
| 10-2 | Adaptor nut | XL4861 |
| 10-3 | Bernard Euro Central Connector | XL5060 |
| 11 | Rear Handle American Brand | XL2520047 |
| 12 | Control Wire (Tweco/Miller) | XLMAK-354 |
| 12-1 | Control Wire (TLincoln) | XLLAK-354 |
| 13 | Tweco Central Connector | XL2200103 |
| 14 | Miller Central Connector | XL2200101 |
| 15 | Lincoln Central Connector | XL2200099 |
| 15-1 | Gas Tube | XLLKGAS |
