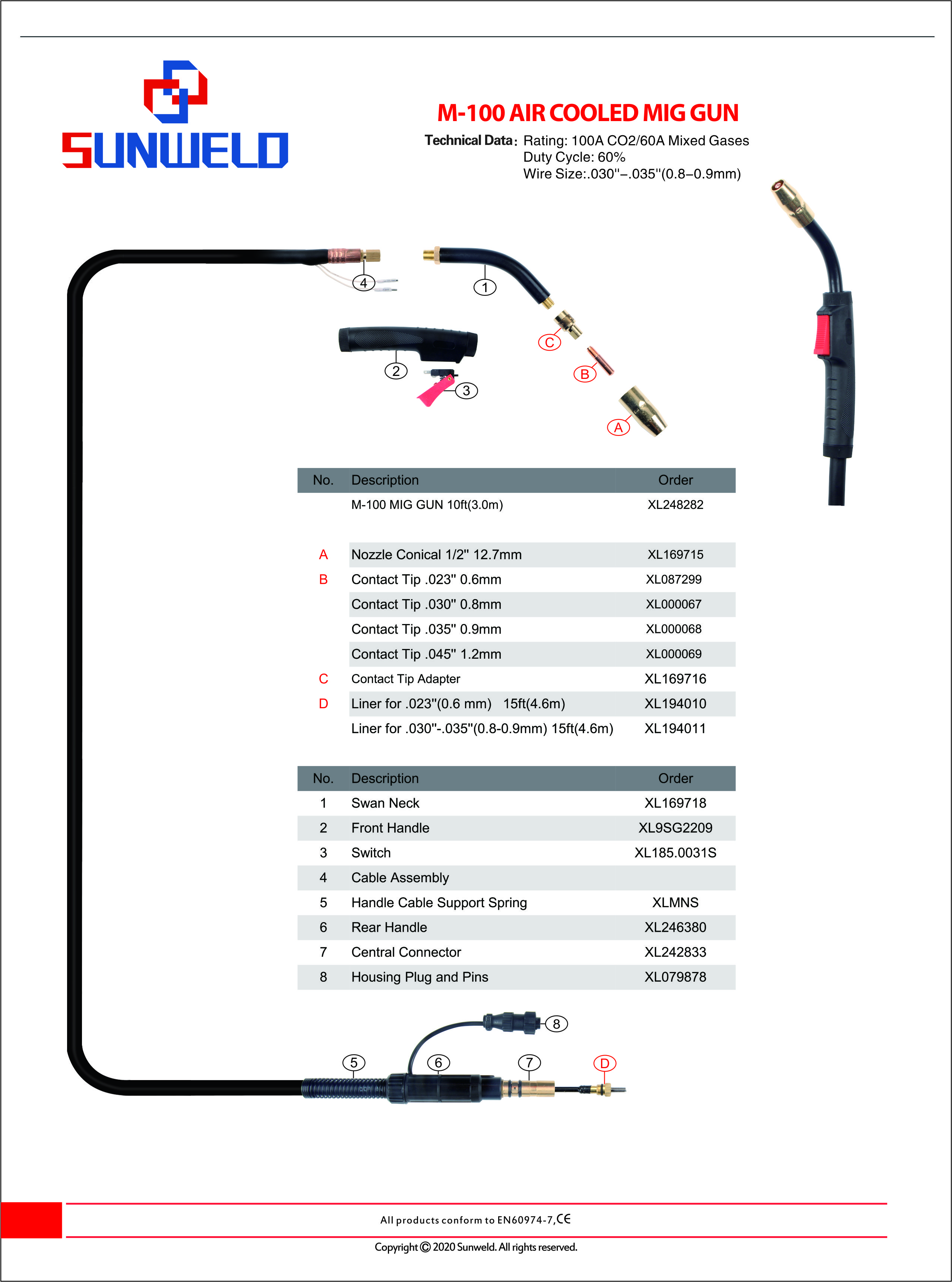

| M-100 AIR COOLED MIG GUN | ||
| Technical Data： | Rating: 100A CO2/60A Mixed Gases | |
| Duty Cycle: 60% | ||
| Wire Size:.030''-.035''(0.8-0.9mm) | ||
| No. | Description | Order |
| M-100 MIG GUN 10ft(3.0m) | XL248282 | |
| A | Nozzle Conical 1/2'' 12.7mm | XL169715 |
| B | Contact Tip .023'' 0.6mm | XL087299 |
| Contact Tip .030'' 0.8mm | XL000067 | |
| Contact Tip .035'' 0.9mm | XL000068 | |
| Contact Tip .045'' 1.2mm | XL000069 | |
| C | Contact Tip Adapter | XL169716 |
| D | Liner for .023''(0.6 mm) 15ft(4.6m) | XL194010 |
| Liner for .030''-.035''(0.8-0.9mm) 15ft(4.6m) | XL194011 | |
| No. | Description | Order |
| 1 | Swan Neck | XL169718 |
| 2 | Front Handle | XL9SG2209 |
| 3 | Switch | XL185.0031S |
| 4 | Cable Assembly | |
| 5 | Handle Cable Support Spring | XLMNS |
| 6 | Rear Handle | XL246380 |
| 7 | Central Connector | XL242833 |
| 8 | Housing Plug and Pins | XL079878 |
