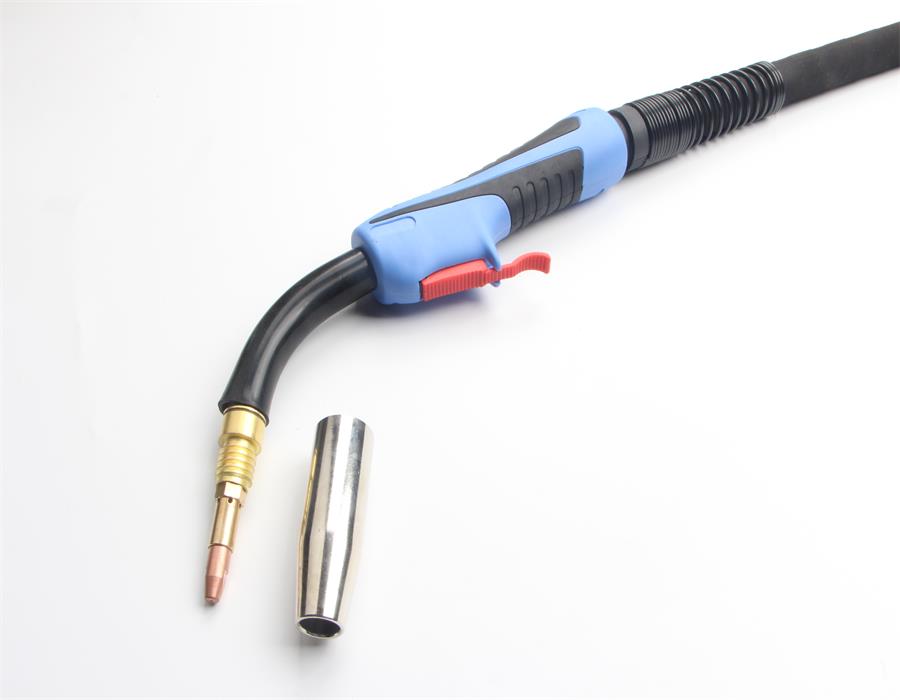

| MAXI450 Air Cooled MIG Welding Torch | ||
| Technical Data： | Rating: 500 CO2/400A Mixed Gases | |
| Duty Cycle:60% | ||
| Wire Size:0.8-2.0mm | ||
| No. | Description | Order |
| XLMAXI450 3m Welding Torch | XLMA6465 | |
| XLMAXI450 4m Welding Torch | XLMA6466 | |
| XLMAXI450 5m Welding Torch | XLMA6467 | |
| A | Nozzle φ14*82mm | XLMC0298 |
| Nozzle φ18*82mm | XLMC0012 | |
| Nozzle φ20*82mm | XLMC0013 | |
| B | Contact tip M8*30*1.0mm | XLMD0005-10 |
| Contact tip M8*30*1.2mm | XLMD0005-12 | |
| Contact tip M8*30*1.4mm | XLMD0005-14 | |
| Contact tip M8*30*1.6mm | XLMD0005-16 | |
| Contact tip M8*30*2.0mm | XLMD0005-20 | |
| Contact tip M8*30*2.4mm | XLMD0005-24 | |
| C | Tip Holder | XLME0006 |
| D | Insulator | XLMQ0186 |
| E | Steel Liner 1.2-1.6mm 3m | XLGM0013-3 |
| Steel Liner 1.2-1.6mm 4m | XLGM0013-4 | |
| Steel Liner 1.2-1.6mm 5m | XLGM0013-5 | |
| No. | Description | Order |
| 1 | Swan Neck | XLMF0086 |
| 2 | Front Handle | XLMP0160 |
| 3 | Switch | XLBX0068 |
| 4 | Cable Assembly 3m | XLMH0249 |
| Cable Assembly 4m | XLMH0250 | |
| Cable Assembly 5m | XLMH0251 | |
| 5 | Cable Ball Joint & Support Spring Big | XL400.1010B |
| 6 | Rear Handle | XL501.2248 |
| 7 | Rear Connector Nut | XL500.0213L |
| 8 | Euro Central Connector | XLAR0083 |
| 9 | Liner Positioner Nut | XLFA0227 |
