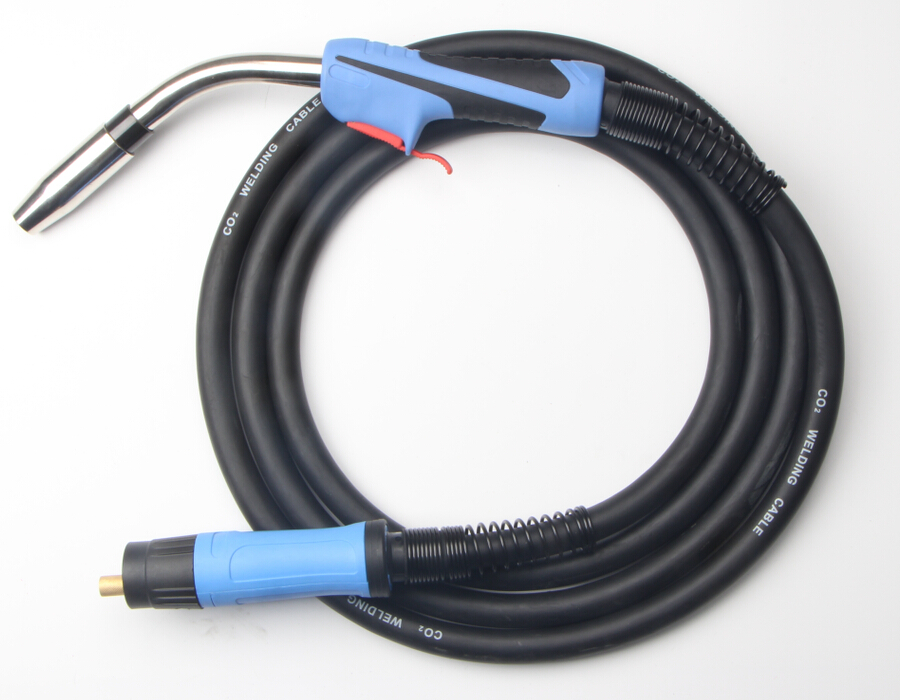

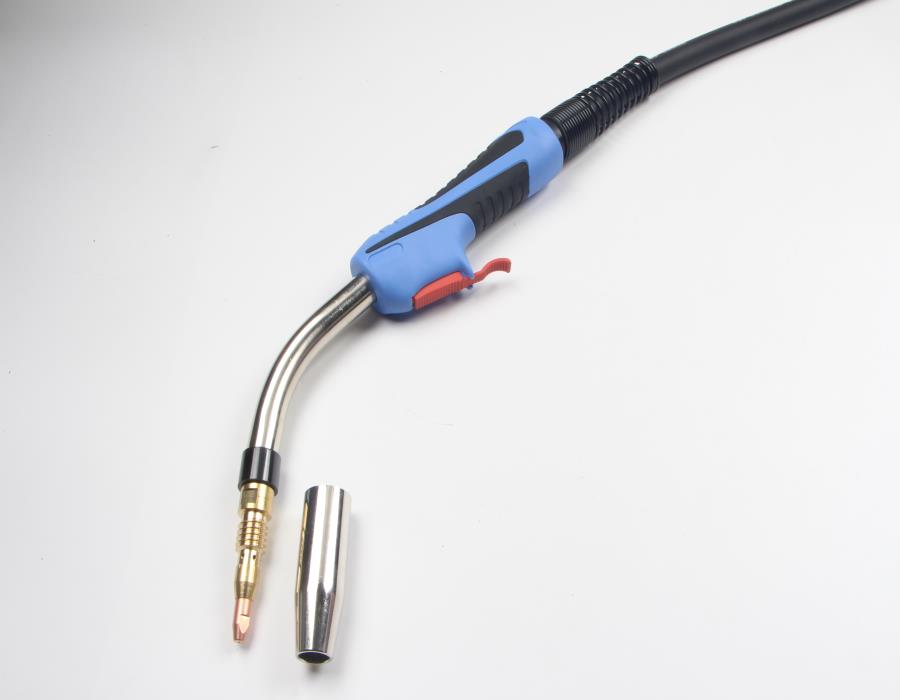

| MAXI4000 Water Cooled MIG Welding Torch | ||
| Technical Data： | Rating: 500 CO2/450A Mixed Gases | |
| Duty Cycle:100% | ||
| Wire Size:1.0-2.4mm | ||
| No. | Description | Order |
| XLMAXI4000 3m Water Welding Torch | XL2343 | |
| XLMAXI4000 4m Water Welding Torch | XL2344 | |
| XLMAXI4000 5m Water Welding Torch | XL2345 | |
| A | Nozzle φ14*82mm | XLMC0298 |
| Nozzle φ18*82mm | XLMC0012 | |
| Nozzle φ20*82mm | XLMC0013 | |
| B | Contact tip M8*30*1.0mm | XLMD0005-10 |
| Contact tip M8*30*1.2mm | XLMD0005-12 | |
| Contact tip M8*30*1.4mm | XLMD0005-14 | |
| Contact tip M8*30*1.6mm | XLMD0005-16 | |
| Contact tip M8*30*2.0mm | XLMD0005-20 | |
| Contact tip M8*30*2.4mm | XLMD0005-24 | |
| C | Tip Holder | XLME0009 |
| E | Steel Liner 1.2-1.6mm 3m | XLGM0540 |
| Steel Liner 1.2-1.6mm 4m | XLGM0541 | |
| Steel Liner 1.2-1.6mm 5m | XLGM0542 | |
| No. | Description | Order |
| 1 | Swan Neck | XLMG0016 |
| 2 | Swan Neck Holder | XLMT0072 |
| 3 | Front Handle | XLMP0160 |
| 4 | Switch | XLBX0068 |
| 5 | Cable Ball Joint & Support Spring Water | XL500.0233 |
| 6 | Water Hose Blue φ5*8 Units:100m | XLQB007X |
| 6-1 | Hose Clamp φ9.0mm | XLEA0282 |
| 7 | Wire/Gas Conduit 3m | XLQB0090 |
| Wire/Gas Conduit 4m | XLQB0091 | |
| Wire/Gas Conduit 5m | XLQB0092 | |
| 8 | Power Cable 3m | XLQA0019 |
| Power Cable 4m | XLQA0020 | |
| Power Cable 5m | XLQA0021 | |
| 9 | Control Cable 2-pole Units:200m | XLBX015X |
| 10 | Outer Cover φ25x1.5 Units:20 m | XLMQ020X |
| 11 | Water Outlet Hose Red φ5*8 With Plug Nipple | XLMH0272 |
| 12 | Plug Nipple ND 5mm | XLFA3020 |
| 13 | Fastener Cap Red | XL501.2423 |
| 13-1 | Fastener Cap Blue | XL501.2424 |
| 14 | Rear Handle Water | XLBW0328 |
| 15 | Adaptor Nut M33x2 | XLBW0480 |
| 16 | Water Central Adaptor | XLAR0102 |
| 17 | Liner Positioner Nut M10x1 | XLFA0026 |
