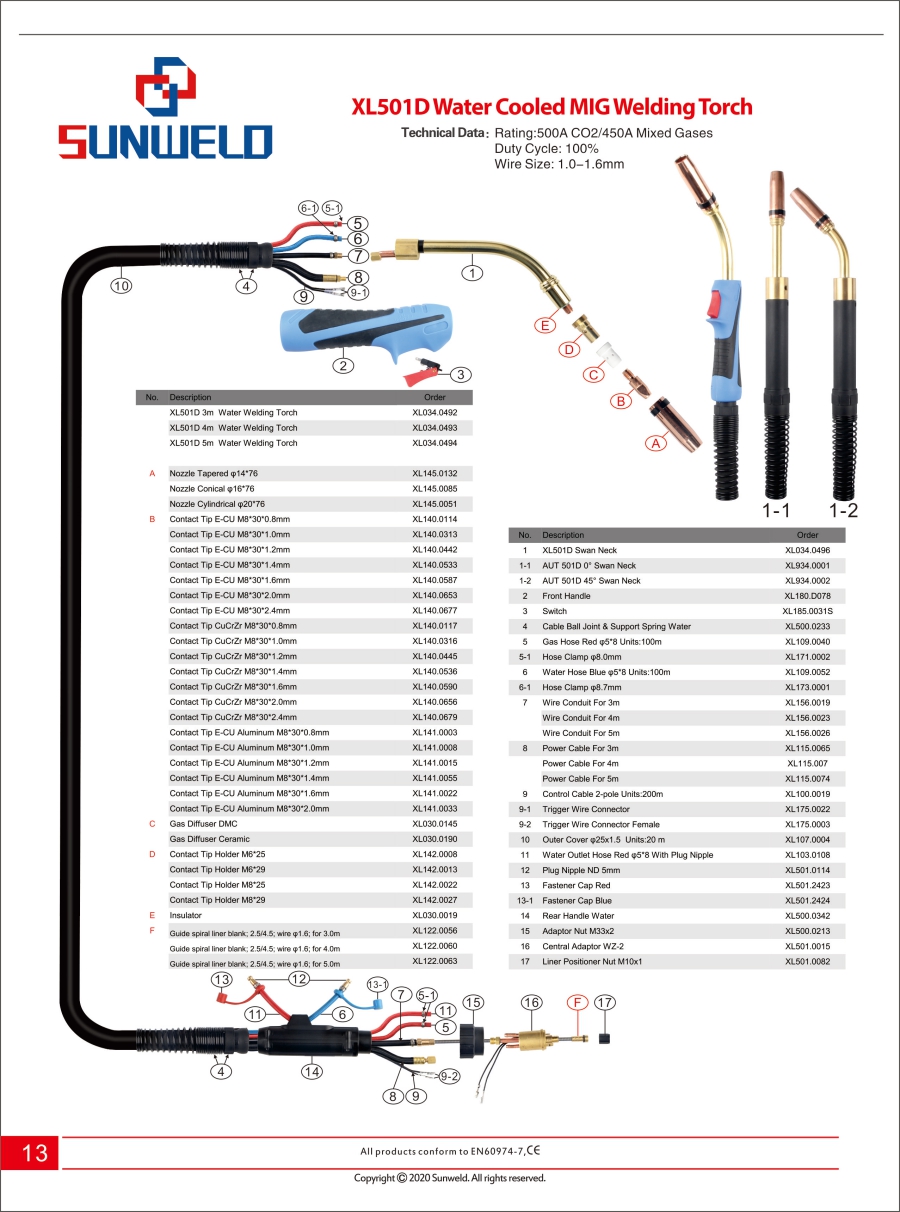

| XL501D Water Cooled MIG Welding Torch | ||
| Technical Data： | Rating:500A CO2/450A Mixed Gases | |
| Duty Cycle: 100% | ||
| Wire Size: 1.0-1.6mm | ||
| No. | Description | Order |
| XL501D 3m Water Welding Torch | XL034.0492 | |
| XL501D 4m Water Welding Torch | XL034.0493 | |
| XL501D 5m Water Welding Torch | XL034.0494 | |
| A | Nozzle Tapered φ14*76 | XL145.0132 |
| Nozzle Conical φ16*76 | XL145.0085 | |
| Nozzle Cylindrical φ20*76 | XL145.0051 | |
| B | Contact Tip E-CU M8*30*0.8mm | XL140.0114 |
| Contact Tip E-CU M8*30*1.0mm | XL140.0313 | |
| Contact Tip E-CU M8*30*1.2mm | XL140.0442 | |
| Contact Tip E-CU M8*30*1.4mm | XL140.0533 | |
| Contact Tip E-CU M8*30*1.6mm | XL140.0587 | |
| Contact Tip E-CU M8*30*2.0mm | XL140.0653 | |
| Contact Tip E-CU M8*30*2.4mm | XL140.0677 | |
| Contact Tip CuCrZr M8*30*0.8mm | XL140.0117 | |
| Contact Tip CuCrZr M8*30*1.0mm | XL140.0316 | |
| Contact Tip CuCrZr M8*30*1.2mm | XL140.0445 | |
| Contact Tip CuCrZr M8*30*1.4mm | XL140.0536 | |
| Contact Tip CuCrZr M8*30*1.6mm | XL140.0590 | |
| Contact Tip CuCrZr M8*30*2.0mm | XL140.0656 | |
| Contact Tip CuCrZr M8*30*2.4mm | XL140.0679 | |
| Contact Tip E-CU Aluminum M8*30*0.8mm | XL141.0003 | |
| Contact Tip E-CU Aluminum M8*30*1.0mm | XL141.0008 | |
| Contact Tip E-CU Aluminum M8*30*1.2mm | XL141.0015 | |
| Contact Tip E-CU Aluminum M8*30*1.4mm | XL141.0055 | |
| Contact Tip E-CU Aluminum M8*30*1.6mm | XL141.0022 | |
| Contact Tip E-CU Aluminum M8*30*2.0mm | XL141.0033 | |
| C | Gas Diffuser DMC | XL030.0145 |
| Gas Diffuser Ceramic | XL030.0190 | |
| D | Contact Tip Holder M6*25 | XL142.0008 |
| Contact Tip Holder M6*29 | XL142.0013 | |
| Contact Tip Holder M8*25 | XL142.0022 | |
| Contact Tip Holder M8*29 | XL142.0027 | |
| E | Insulator | XL030.0019 |
| F | Guide spiral liner blank; 2.5/4.5; wire φ1.6; for 3.0m | XL122.0056 |
| Guide spiral liner blank; 2.5/4.5; wire φ1.6; for 4.0m | XL122.0060 | |
| Guide spiral liner blank; 2.5/4.5; wire φ1.6; for 5.0m | XL122.0063 | |
| No. | Description | Order |
| 1 | XL501D Swan Neck | XL034.0496 |
| 1-1 | AUT 501D 0° Swan Neck | XL934.0001 |
| 1-2 | AUT 501D 45° Swan Neck | XL934.0002 |
| 2 | Front Handle | XL180.D078 |
| 3 | Switch | XL185.0031S |
| 4 | Cable Ball Joint & Support Spring Water | XL500.0233 |
| 5 | Gas Hose Red φ5*8 Units:100m | XL109.0040 |
| 5-1 | Hose Clamp φ8.0mm | XL171.0002 |
| 6 | Water Hose Blue φ5*8 Units:100m | XL109.0052 |
| 6-1 | Hose Clamp φ8.7mm | XL173.0001 |
| 7 | Wire Conduit For 3m | XL156.0019 |
| Wire Conduit For 4m | XL156.0023 | |
| Wire Conduit For 5m | XL156.0026 | |
| 8 | Power Cable For 3m | XL115.0065 |
| Power Cable For 4m | XL115.007 | |
| Power Cable For 5m | XL115.0074 | |
| 9 | Control Cable 2-pole Units:200m | XL100.0019 |
| 9-1 | Trigger Wire Connector | XL175.0022 |
| 9-2 | Trigger Wire Connector Female | XL175.0003 |
| 10 | Outer Cover φ25x1.5 Units:20 m | XL107.0004 |
| 11 | Water Outlet Hose Red φ5*8 With Plug Nipple | XL103.0108 |
| 12 | Plug Nipple ND 5mm | XL501.0114 |
| 13 | Fastener Cap Red | XL501.2423 |
| 13-1 | Fastener Cap Blue | XL501.2424 |
| 14 | Rear Handle Water | XL500.0342 |
| 15 | Adaptor Nut M33x2 | XL500.0213 |
| 16 | Central Adaptor WZ-2 | XL501.0015 |
| 17 | Liner Positioner Nut M10x1 | XL501.0082 |
