MB EVO 36 320Amp MIG/MAG Welding Torch Air Cooled (XL014.0526 XL014.0527 XL014.0528)

XLMB EVO 36 Air Cooled MIG Welding Torch Technical Data: Rating: 320A CO2/290A Mixed Gases Duty Cycle: 60% Wire Size: 0.8-1.2mm XLMB EVO 36 3m Welding Torch XL014.0526 XLMB EVO 36 4m Welding Torch XL014.0527 XLMB EVO 36 5m Welding Torch XL014.0528

Products Details

EVO36
XLMB EVO 36 Air Cooled MIG Welding Torch
Technical Data: Rating: 320A CO2/290A Mixed Gases
Duty Cycle: 60%
Wire Size: 0.8-1.2mm

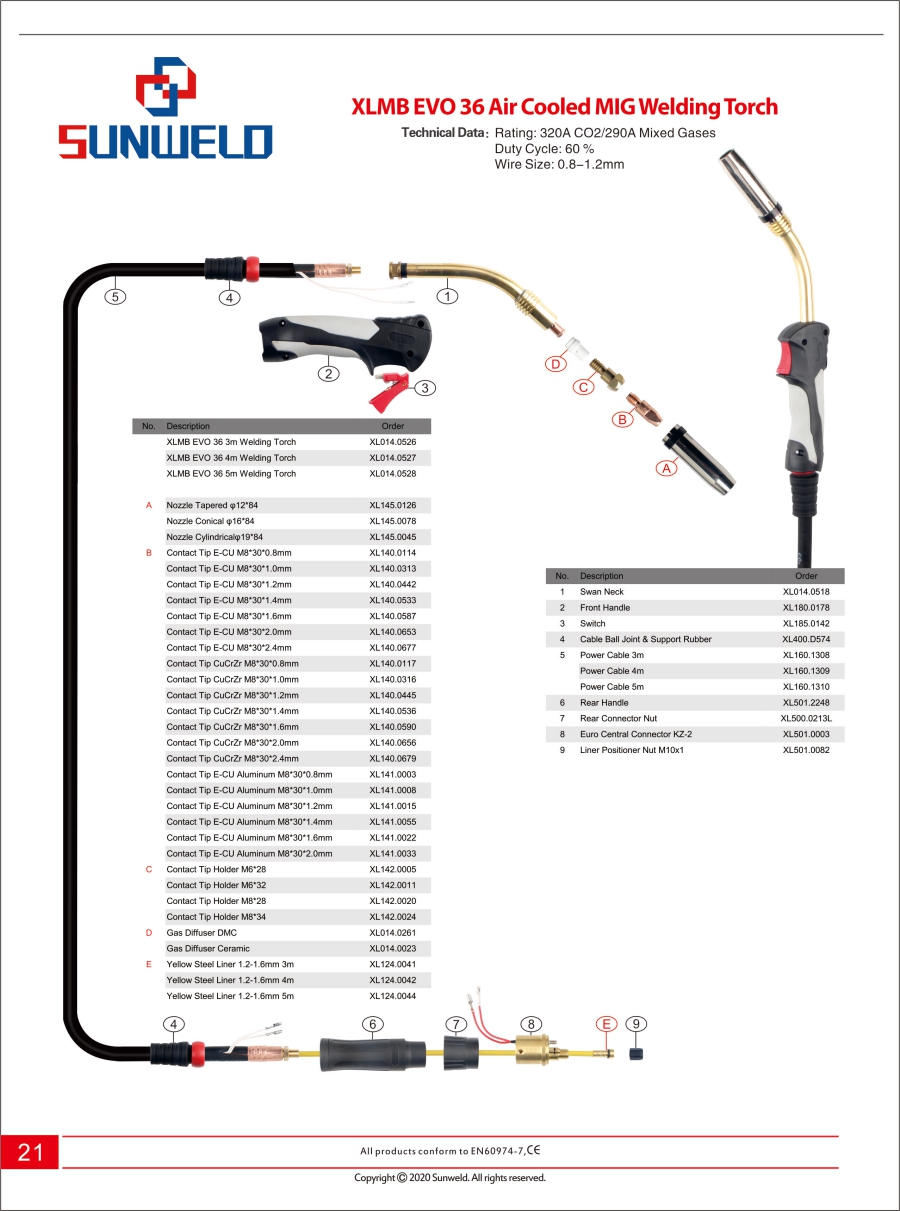

No. Description Order
XLMB EVO 36 3m Welding Torch XL014.0526
XLMB EVO 36 4m Welding Torch XL014.0527
XLMB EVO 36 5m Welding Torch XL014.0528
A Nozzle Tapered φ12*84 XL145.0126
Nozzle Conical φ16*84 XL145.0078
Nozzle Cylindrical φ19*84 XL145.0045
B Contact Tip E-CU M8*30*0.8mm XL140.0114
Contact Tip E-CU M8*30*1.0mm XL140.0313
Contact Tip E-CU M8*30*1.2mm XL140.0442
Contact Tip E-CU M8*30*1.4mm XL140.0533
Contact Tip E-CU M8*30*1.6mm XL140.0587
Contact Tip E-CU M8*30*2.0mm XL140.0653
Contact Tip E-CU M8*30*2.4mm XL140.0677
Contact Tip CuCrZr M8*30*0.8mm XL140.0117
Contact Tip CuCrZr M8*30*1.0mm XL140.0316
Contact Tip CuCrZr M8*30*1.2mm XL140.0445
Contact Tip CuCrZr M8*30*1.4mm XL140.0536
Contact Tip CuCrZr M8*30*1.6mm XL140.0590
Contact Tip CuCrZr M8*30*2.0mm XL140.0656
Contact Tip CuCrZr M8*30*2.4mm XL140.0679
Contact Tip E-CU Aluminum M8*30*0.8mm XL141.0003
Contact Tip E-CU Aluminum M8*30*1.0mm XL141.0008
Contact Tip E-CU Aluminum M8*30*1.2mm XL141.0015
Contact Tip E-CU Aluminum M8*30*1.4mm XL141.0055
Contact Tip E-CU Aluminum M8*30*1.6mm XL141.0022
Contact Tip E-CU Aluminum M8*30*2.0mm XL141.0033
C Contact Tip Holder M6*28 XL142.0005
Contact Tip Holder M6*32 XL142.0011
Contact Tip Holder M8*28 XL142.0020
Contact Tip Holder M8*34 XL142.0024
D Gas Diffuser DMC XL014.0261
Gas Diffuser Ceramic XL014.0023
E Yellow Steel Liner 1.2-1.6mm 3m XL124.0041
Yellow Steel Liner 1.2-1.6mm 4m XL124.0042
Yellow Steel Liner 1.2-1.6mm 5m XL124.0044
No. Description Order
1 Swan Neck XL014.0518
2 Front Handle XL180.0178
3 Switch XL185.0142
4 Cable Ball Joint & Support Rubber XL400.D574
5 Power Cable 3m XL160.1308
Power Cable 4m XL160.1309
Power Cable 5m XL160.1310
6 Rear Handle XL501.2248
7 Rear Connector Nut XL500.0213L
8 Euro Central Connector KZ-2 XL501.0003
9 Liner Positioner Nut M10x1 XL501.0082
