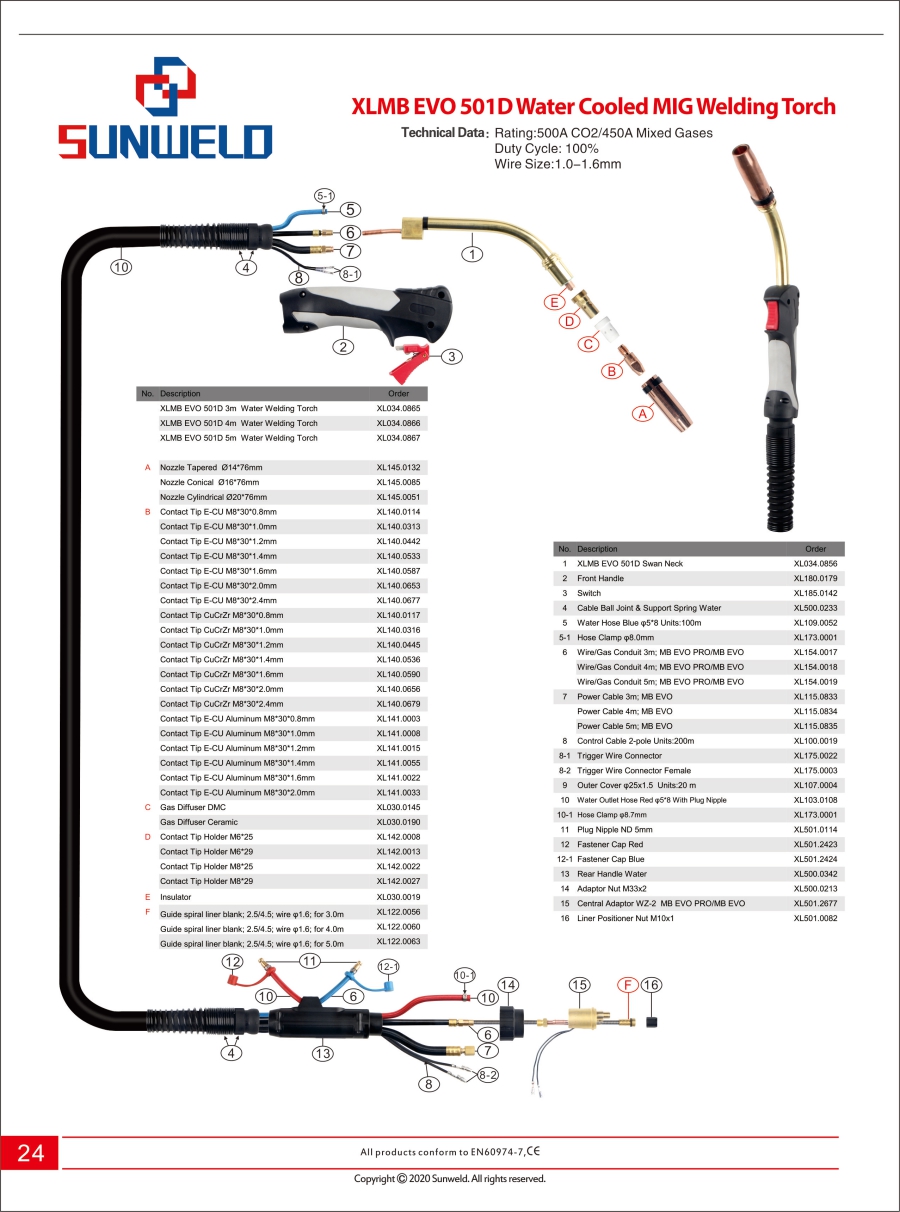

| XLMB EVO 501D Water Cooled MIG Welding Torch | ||
| Technical Data： | Rating:500A CO2/450A Mixed Gases | |
| Duty Cycle: 100% | ||
| Wire Size:1.0-1.6mm | ||
| No. | Description | Order |
| XLMB EVO 501D 3m Water Welding Torch | XL034.0865 | |
| XLMB EVO 501D 4m Water Welding Torch | XL034.0866 | |
| XLMB EVO 501D 5m Water Welding Torch | XL034.0867 | |
| A | Nozzle Cylindrical Ø20*76mm | XL145.0051 |
| Nozzle Conical Ø16*76mm | XL145.0085 | |
| Nozzle Tapered Ø14*76mm | XL145.0132 | |
| B | Contact Tip E-CU M8*30*0.8mm | XL140.0114 |
| Contact Tip E-CU M8*30*1.0mm | XL140.0313 | |
| Contact Tip E-CU M8*30*1.2mm | XL140.0442 | |
| Contact Tip E-CU M8*30*1.4mm | XL140.0533 | |
| Contact Tip E-CU M8*30*1.6mm | XL140.0587 | |
| Contact Tip E-CU M8*30*2.0mm | XL140.0653 | |
| Contact Tip E-CU M8*30*2.4mm | XL140.0677 | |
| Contact Tip CuCrZr M8*30*0.8mm | XL140.0117 | |
| Contact Tip CuCrZr M8*30*1.0mm | XL140.0316 | |
| Contact Tip CuCrZr M8*30*1.2mm | XL140.0445 | |
| Contact Tip CuCrZr M8*30*1.4mm | XL140.0536 | |
| Contact Tip CuCrZr M8*30*1.6mm | XL140.0590 | |
| Contact Tip CuCrZr M8*30*2.0mm | XL140.0656 | |
| Contact Tip CuCrZr M8*30*2.4mm | XL140.0679 | |
| Contact Tip E-CU Aluminum M8*30*0.8mm | XL141.0003 | |
| Contact Tip E-CU Aluminum M8*30*1.0mm | XL141.0008 | |
| Contact Tip E-CU Aluminum M8*30*1.2mm | XL141.0015 | |
| Contact Tip E-CU Aluminum M8*30*1.4mm | XL141.0055 | |
| Contact Tip E-CU Aluminum M8*30*1.6mm | XL141.0022 | |
| Contact Tip E-CU Aluminum M8*30*2.0mm | XL141.0033 | |
| C | Gas Diffuser DMC | XL030.0145 |
| Gas Diffuser Ceramic | XL030.0190 | |
| D | Contact Tip Holder M6*25 | XL142.0008 |
| Contact Tip Holder M6*29 | XL142.0013 | |
| Contact Tip Holder M8*25 | XL142.0022 | |
| Contact Tip Holder M8*29 | XL142.0027 | |
| E | Insulator | XL030.0019 |
| F | Guide spiral liner blank; 2.5/4.5; wire φ1.6; for 3.0m | XL122.0056 |
| Guide spiral liner blank; 2.5/4.5; wire φ1.6; for 4.0m | XL122.0060 | |
| Guide spiral liner blank; 2.5/4.5; wire φ1.6; for 5.0m | XL122.0063 | |
| No. | Description | Order |
| 1 | XLMB EVO 501D Swan Neck | XL034.0856 |
| 2 | Front Handle | XL180.0179 |
| 3 | Switch | XL185.0142 |
| 4 | Cable Ball Joint & Support Spring Water | XL500.0233 |
| 5 | Water Hose Blue φ5*8 Units:100m | XL109.0052 |
| 5-1 | Hose Clamp φ8.0mm | XL173.0001 |
| 6 | Wire/Gas Conduit 3m; MB EVO PRO/MB EVO | XL154.0017 |
| Wire/Gas Conduit 4m; MB EVO PRO/MB EVO | XL154.0018 | |
| Wire/Gas Conduit 5m; MB EVO PRO/MB EVO | XL154.0019 | |
| 7 | Power Cable 3m; MB EVO | XL115.0833 |
| Power Cable 4m; MB EVO | XL115.0834 | |
| Power Cable 5m; MB EVO | XL115.0835 | |
| 8 | Control Cable 2-pole Units:200m | XL100.0019 |
| 8-1 | Trigger Wire Connector | XL175.0022 |
| 8-2 | Trigger Wire Connector Female | XL175.0003 |
| 9 | Outer Cover φ25x1.5 Units:20 m | XL107.0004 |
| 10 | Water Outlet Hose Red φ5*8 With Plug Nipple | XL103.0108 |
| 10-1 | Hose Clamp φ8.7mm | XL173.0001 |
| 11 | Plug Nipple ND 5mm | XL501.0114 |
| 12 | Fastener Cap Red | XL501.2423 |
| 12-1 | Fastener Cap Blue | XL501.2424 |
| 13 | Rear Handle Water | XL500.0342 |
| 14 | Adaptor Nut M33x2 | XL500.0213 |
| 15 | Central Adaptor WZ-2 MB EVO PRO/MB EVO | XL501.2677 |
| 16 | Liner Positioner Nut M10x1 | XL501.0082 |
