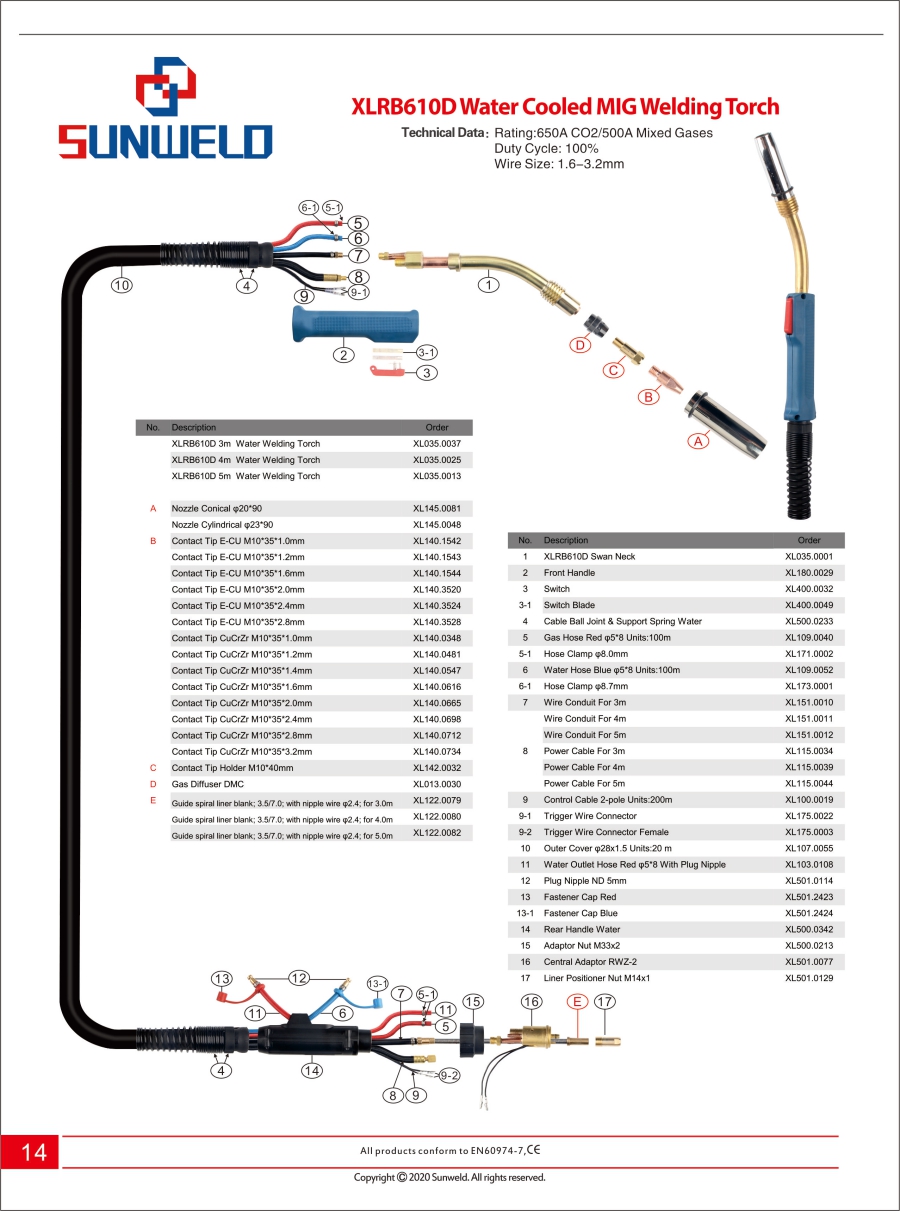

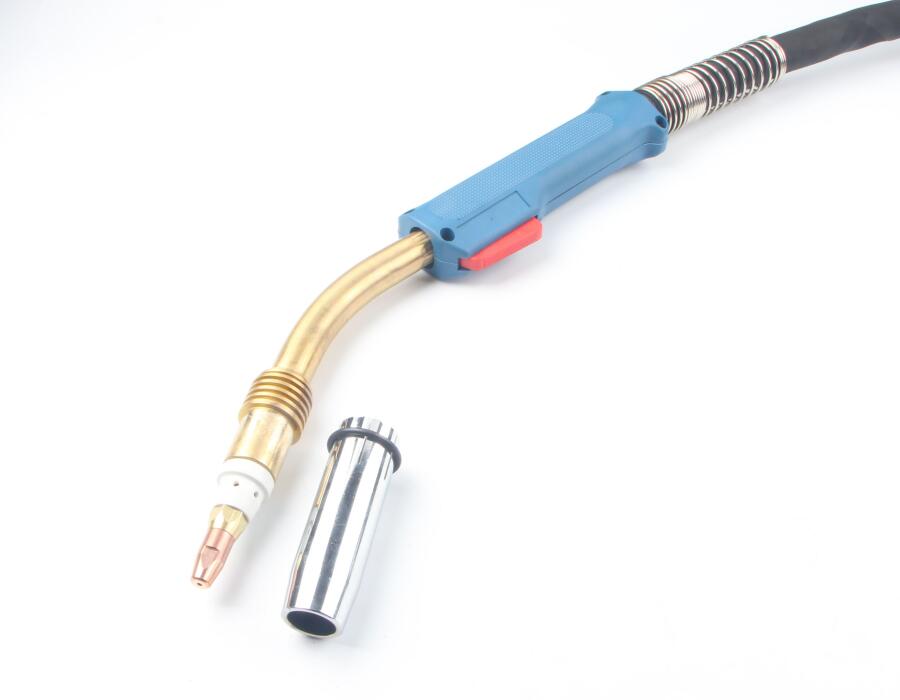

| XLRB610D Water Cooled MIG Welding Torch | ||
| Technical Data： | Rating:650A CO2/500A Mixed Gases | |
| Duty Cycle: 100% | ||
| Wire Size: 1.6-3.2mm | ||
| No. | Description | Order |
| XLRB610D 3m Water Welding Torch | XL035.0037 | |
| XLRB610D 4m Water Welding Torch | XL035.0025 | |
| XLRB610D 5m Water Welding Torch | XL035.0013 | |
| A | Nozzle Conical φ20*90 | XL145.0081 |
| Nozzle Cylindrical φ23*90 | XL145.0048 | |
| B | Contact Tip E-CU M10*35*1.0mm | XL140.1542 |
| Contact Tip E-CU M10*35*1.2mm | XL140.1543 | |
| Contact Tip E-CU M10*35*1.6mm | XL140.1544 | |
| Contact Tip E-CU M10*35*2.0mm | XL140.3520 | |
| Contact Tip E-CU M10*35*2.4mm | XL140.3524 | |
| Contact Tip E-CU M10*35*2.8mm | XL140.3528 | |
| Contact Tip CuCrZr M10*35*1.0mm | XL140.0348 | |
| Contact Tip CuCrZr M10*35*1.2mm | XL140.0481 | |
| Contact Tip CuCrZr M10*35*1.4mm | XL140.0547 | |
| Contact Tip CuCrZr M10*35*1.6mm | XL140.0616 | |
| Contact Tip CuCrZr M10*35*2.0mm | XL140.0665 | |
| Contact Tip CuCrZr M10*35*2.4mm | XL140.0698 | |
| Contact Tip CuCrZr M10*35*2.8mm | XL140.0712 | |
| Contact Tip CuCrZr M10*35*3.2mm | XL140.0734 | |
| C | Contact Tip Holder M10*40 | XL142.0032 |
| D | Gas Diffuser DMC | XL013.0030 |
| E | Guide spiral liner blank; 3.5/7.0; with nipple wire φ2.4; for 3.0m | XL122.0079 |
| Guide spiral liner blank; 3.5/7.0; with nipple wire φ2.4; for 4.0m | XL122.0080 | |
| Guide spiral liner blank; 3.5/7.0; with nipple wire φ2.4; for 5.0m | XL122.0082 | |
| No. | Description | Order |
| 1 | XLRB610D Swan Neck | XL035.0001 |
| 2 | Front Handle | XL180.0029 |
| 3 | Switch | XL400.0032 |
| 3-1 | Switch Blade | XL400.0049 |
| 4 | Cable Ball Joint & Support Spring Water | XL500.0233 |
| 5 | Gas Hose Red φ5*8 Units:100m | XL109.0040 |
| 5-1 | Hose Clamp φ8.0mm | XL171.0002 |
| 6 | Water Hose Blue φ5*8 Units:100m | XL109.0052 |
| 6-1 | Hose Clamp φ8.7mm | XL173.0001 |
| 7 | Wire Conduit For 3m | XL151.0010 |
| Wire Conduit For 4m | XL151.0011 | |
| Wire Conduit For 5m | XL151.0012 | |
| 8 | Power Cable For 3m | XL115.0034 |
| Power Cable For 4m | XL115.0039 | |
| Power Cable For 5m | XL115.0044 | |
| 9 | Control Cable 2-pole Units:200m | XL100.0019 |
| 9-1 | Trigger Wire Connector | XL175.0022 |
| 9-2 | Trigger Wire Connector Female | XL175.0003 |
| 10 | Outer Cover φ28x1.5 Units:20 m | XL107.0055 |
| 11 | Water Outlet Hose Red φ5*8 With Plug Nipple | XL103.0108 |
| 12 | Plug Nipple ND 5mm | XL501.0114 |
| 13 | Fastener Cap Red | XL501.2423 |
| 13-1 | Fastener Cap Blue | XL501.2424 |
| 14 | Rear Handle Water | XL500.0342 |
| 15 | Adaptor Nut M33x2 | XL500.0213 |
| 16 | Central Adaptor RWZ-2 | XL501.0077 |
| 17 | Liner Positioner Nut M14x1 | XL501.0129 |
