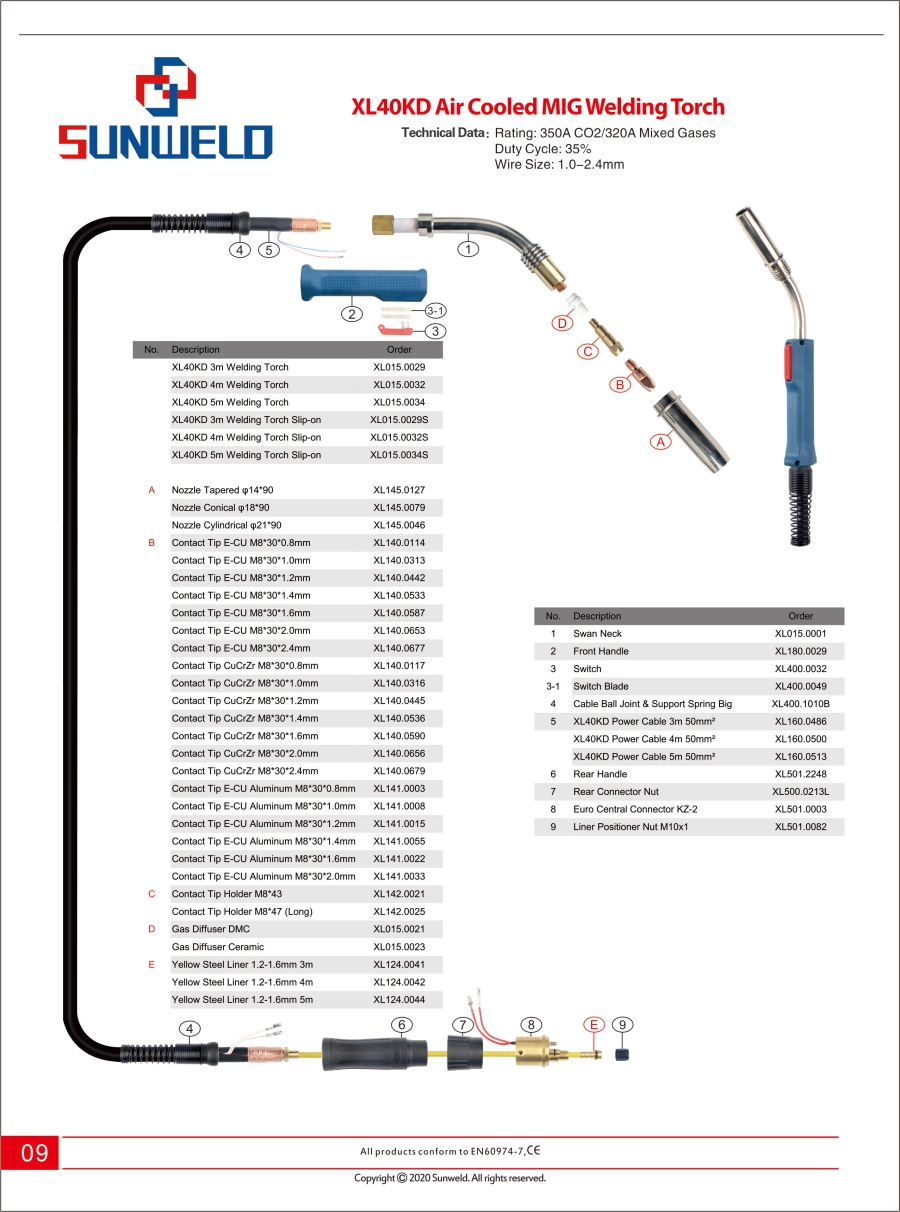

| XL40KD Air Cooled MIG Welding Torch | ||
| Technical Data: | Rating: 350A CO2/320A Mixed Gases | |
| Duty Cycle: 35% | ||
| Wire Size: 1.0-2.4mm | ||
| No. | Description | Order |
| XL40KD 3m Welding Torch | XL015.0029 | |
| XL40KD 4m Welding Torch | XL015.0032 | |
| XL40KD 5m Welding Torch | XL015.0034 | |
| XL40KD 3m Welding Torch Slip-on | XL015.0029S | |
| XL40KD 4m Welding Torch Slip-on | XL015.0032S | |
| XL40KD 5m Welding Torch Slip-on | XL015.0034S | |
| A | Nozzle Tapered φ14*90 | XL145.0127 |
| Nozzle Conical φ18*90 | XL145.0079 | |
| Nozzle Cylindrical φ21*90 | XL145.0046 | |
| B | Contact Tip E-CU M8*30*0.8mm | XL140.0114 |
| Contact Tip E-CU M8*30*1.0mm | XL140.0313 | |
| Contact Tip E-CU M8*30*1.2mm | XL140.0442 | |
| Contact Tip E-CU M8*30*1.4mm | XL140.0533 | |
| Contact Tip E-CU M8*30*1.6mm | XL140.0587 | |
| Contact Tip E-CU M8*30*2.0mm | XL140.0653 | |
| Contact Tip E-CU M8*30*2.4mm | XL140.0677 | |
| Contact Tip CuCrZr M8*30*0.8mm | XL140.0117 | |
| Contact Tip CuCrZr M8*30*1.0mm | XL140.0316 | |
| Contact Tip CuCrZr M8*30*1.2mm | XL140.0445 | |
| Contact Tip CuCrZr M8*30*1.4mm | XL140.0536 | |
| Contact Tip CuCrZr M8*30*1.6mm | XL140.0590 | |
| Contact Tip CuCrZr M8*30*2.0mm | XL140.0656 | |
| Contact Tip CuCrZr M8*30*2.4mm | XL140.0679 | |
| Contact Tip E-CU Aluminum M8*30*0.8mm | XL141.0003 | |
| Contact Tip E-CU Aluminum M8*30*1.0mm | XL141.0008 | |
| Contact Tip E-CU Aluminum M8*30*1.2mm | XL141.0015 | |
| Contact Tip E-CU Aluminum M8*30*1.4mm | XL141.0055 | |
| Contact Tip E-CU Aluminum M8*30*1.6mm | XL141.0022 | |
| Contact Tip E-CU Aluminum M8*30*2.0mm | XL141.0033 | |
| C | Contact Tip Holder M8*43 | XL142.0021 |
| Contact Tip Holder M8*47 (Long) | XL142.0025 | |
| D | Gas Diffuser DMC | XL015.0021 |
| Gas Diffuser Ceramic | XL015.0023 | |
| E | Yellow Steel Liner 1.2-1.6mm 3m | XL124.0041 |
| Yellow Steel Liner 1.2-1.6mm 4m | XL124.0042 | |
| Yellow Steel Liner 1.2-1.6mm 5m | XL124.0044 | |
| No. | Description | Order |
| 1 | Swan Neck | XL015.0001 |
| 2 | Front Handle | XL180.0029 |
| 3 | Switch | XL400.0032 |
| 3-1 | Switch Blade | XL400.0049 |
| 4 | Cable Ball Joint & Support Spring Big | XL400.1010B |
| 5 | XL40KD Power Cable 3m 50mm² | XL160.0486 |
| XL40KD Power Cable 4m 50mm² | XL160.0500 | |
| XL40KD Power Cable 5m 50mm² | XL160.0513 | |
| 6 | Rear Handle | XL501.2248 |
| 7 | Rear Connector Nut | XL500.0213L |
| 8 | Euro Central Connector KZ-2 | XL501.0003 |
| 9 | Liner Positioner Nut M10x1 | XL501.0082 |
