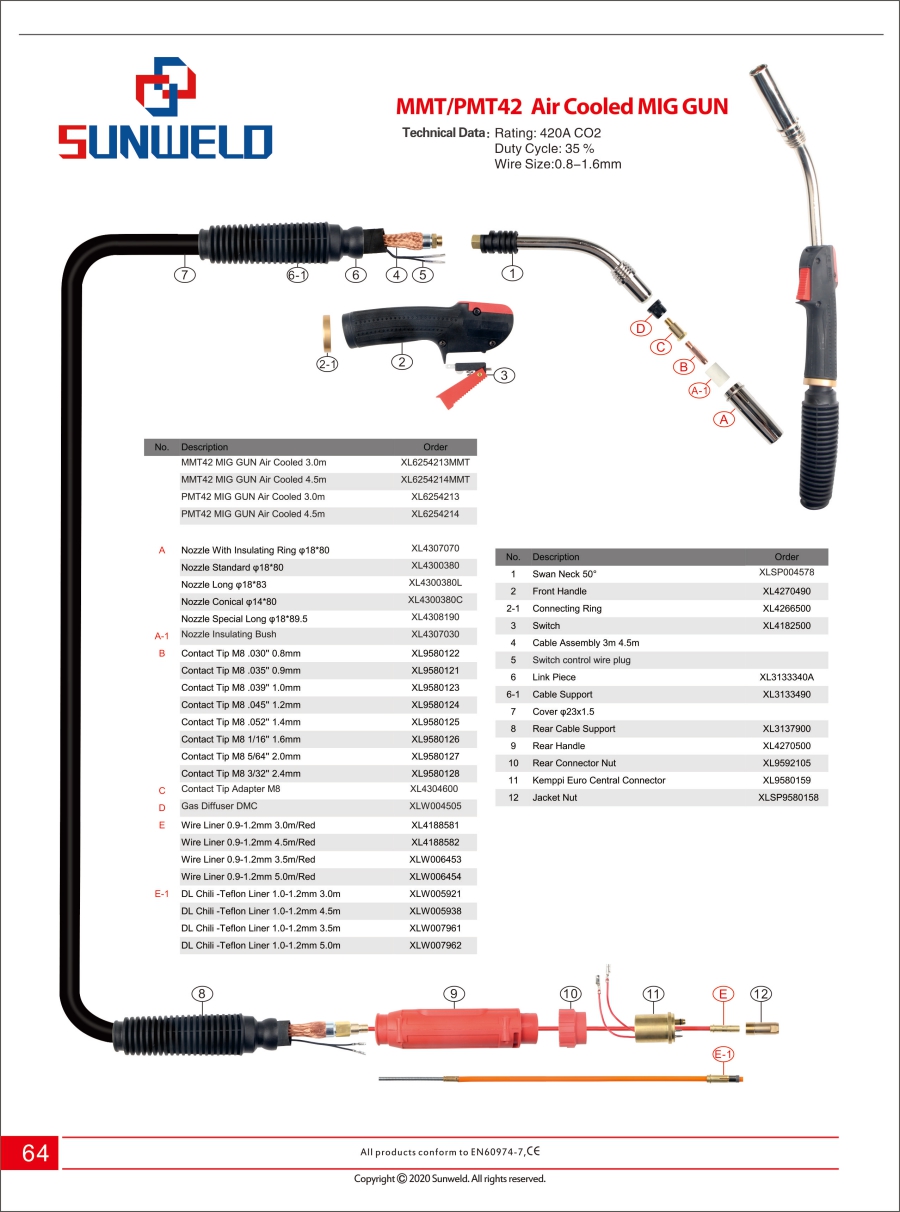

MMT/PMT42  Air Cooled MIG GUN
Technical Data：	Rating: 420A CO2
	Duty Cycle:35%
	Wire Size:0.8-1.6mm
No.	Description	Order
	MMT42 MIG GUN Air Cooled 3.0m	XL6254213MMT
	MMT42 MIG GUN Air Cooled 4.5m	XL6254214MMT
	PMT42 MIG GUN Air Cooled 3.0m	XL6254213
	PMT42 MIG GUN Air Cooled 4.5m	XL6254214
A	Nozzle With Insulating Ring φ18*80	XL4307070
	Nozzle Standard φ18*80	XL4300380
	Nozzle Long φ18*83	XL4300380L
	Nozzle Conical φ14*80	XL4300380C
	Nozzle Special Long φ18*89.5	XL4308190
A-1	Nozzle Insulating Bush	XL4307030
B	Contact Tip M8 .030'' 0.8mm	XL9580122
	Contact Tip M8 .035'' 0.9mm	XL9580121
	Contact Tip M8 .039'' 1.0mm	XL9580123
	Contact Tip M8 .045'' 1.2mm	XL9580124
	Contact Tip M8 .052'' 1.4mm	XL9580125
	Contact Tip M8 1/16'' 1.6mm	XL9580126
	Contact Tip M8 5/64'' 2.0mm	XL9580127
	Contact Tip M8 3/32'' 2.4mm	XL9580128
C	Contact Tip Adapter M8	XL4304600
D	Gas Diffuser DMC	XLW004505
E	Wire Liner 0.9-1.2mm 3.0m/Red	XL4188581
	Wire Liner 0.9-1.2mm 4.5m/Red	XL4188582
	Wire Liner 0.9-1.2mm 3.5m/Red	XLW006453
	Wire Liner 0.9-1.2mm 5.0m/Red	XLW006454
E-1	DL Chili -Teflon Liner 1.0-1.2mm 3.0m	XLW005921
	DL Chili -Teflon Liner 1.0-1.2mm 4.5m	XLW005938
	DL Chili -Teflon Liner 1.0-1.2mm 3.5m	XLW007961
	DL Chili -Teflon Liner 1.0-1.2mm 5.0m	XLW007962
No.	Description	Order
1	Swan Neck 50°	XLSP004578
2	Front Handle	XL4270490
2-1	Connecting Ring	XL4266500
3	Switch	XL4182500
4	Cable Assembly 3m 4.5m
5	Switch control wire plug
6	Link Piece	XL3146280A
6-1	Cable Support	XL3133490
7	Cover φ23x1.5
8	Rear Cable Support	XL3137900
9	Rear Handle	XL4270500
10	Rear Connector Nut	XL9592105
11	Kemppi Euro Central Connector	XL9580159
12	Jacket Nut	XLSP9580158
