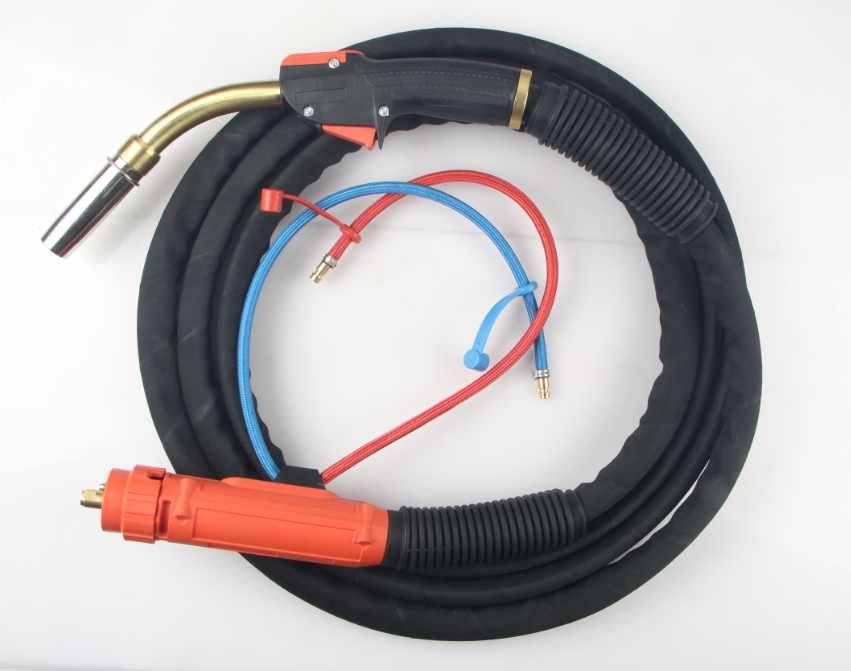

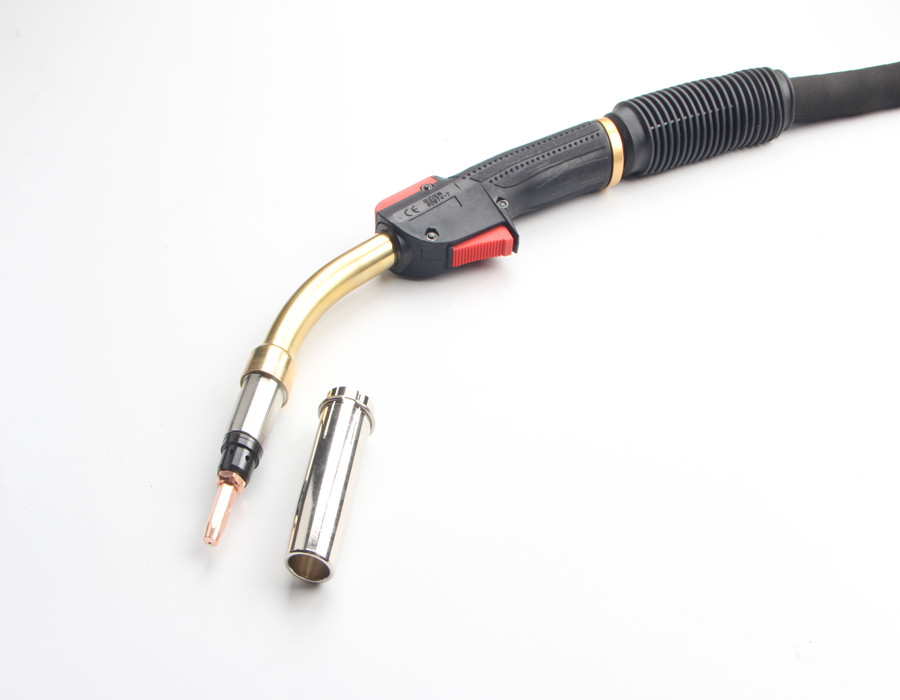

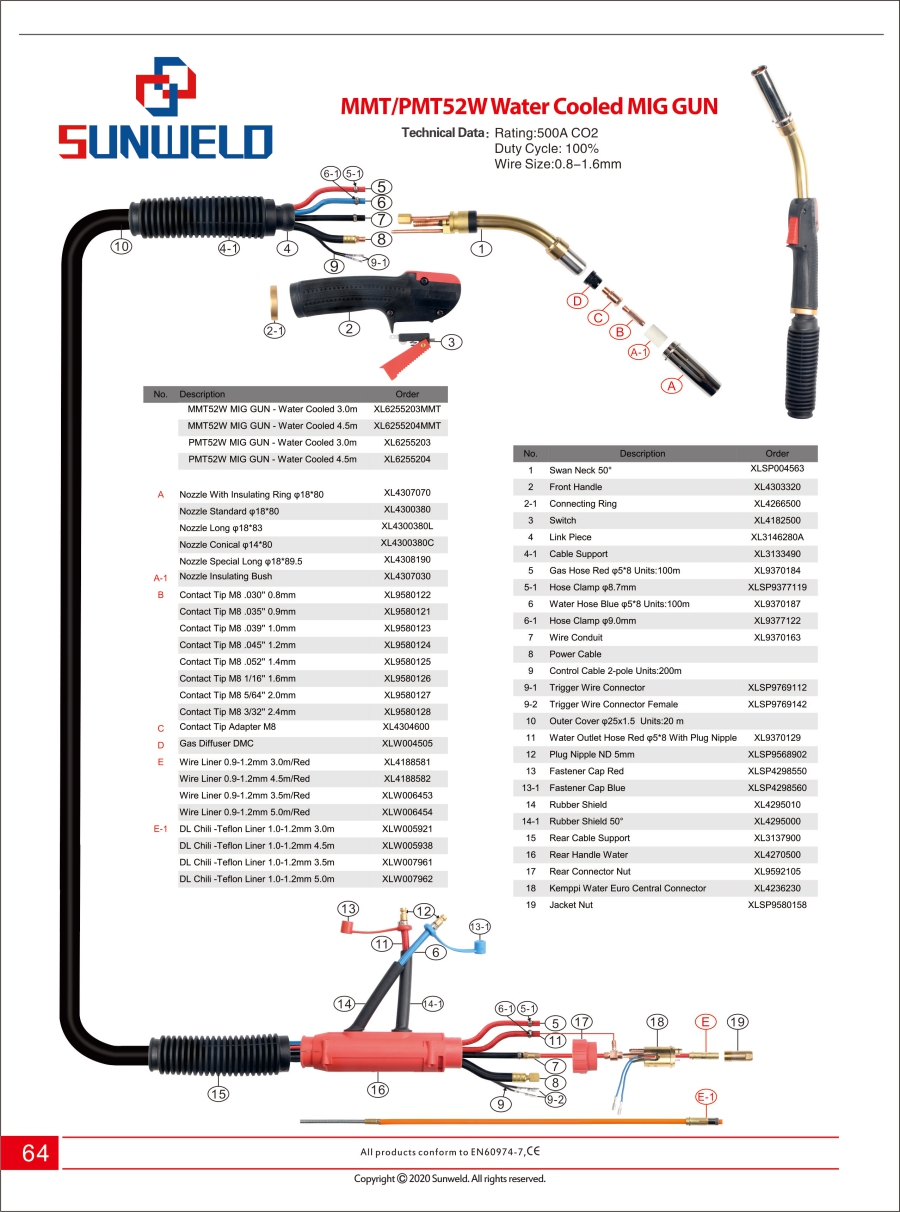

| MMT/PMT52W Water Cooled MIG GUN | ||
| Technical Data： | Rating:500A CO2 | |
| Duty Cycle:100% | ||
| Wire Size:0.8-1.6mm | ||
| No. | Description | Order |
| MMT52W MIG GUN - Water Cooled 3.0m | XL6255203MMT | |
| MMT52W MIG GUN - Water Cooled 4.5m | XL6255204MMT | |
| PMT52W MIG GUN - Water Cooled 3.0m | XL6255203 | |
| PMT52W MIG GUN - Water Cooled 4.5m | XL6255204 | |
| A | Nozzle With Insulating Ring φ18*80 | XL4307070 |
| Nozzle Standard φ18*80 | XL4300380 | |
| Nozzle Long φ18*83 | XL4300380L | |
| Nozzle Conical φ14*80 | XL4300380C | |
| Nozzle Special Long φ18*89.5 | XL4308190 | |
| A-1 | Nozzle Insulating Bush | XL4307030 |
| B | Contact Tip M8 .030'' 0.8mm | XL9580122 |
| Contact Tip M8 .035'' 0.9mm | XL9580121 | |
| Contact Tip M8 .039'' 1.0mm | XL9580123 | |
| Contact Tip M8 .045'' 1.2mm | XL9580124 | |
| Contact Tip M8 .052'' 1.4mm | XL9580125 | |
| Contact Tip M8 1/16'' 1.6mm | XL9580126 | |
| Contact Tip M8 5/64'' 2.0mm | XL9580127 | |
| Contact Tip M8 3/32'' 2.4mm | XL9580128 | |
| C | Contact Tip Adapter M8 | XL4304600 |
| D | Gas Diffuser DMC | XLW004505 |
| E | Wire Liner 0.9-1.2mm 3.0m/Red | XL4188581 |
| Wire Liner 0.9-1.2mm 4.5m/Red | XL4188582 | |
| Wire Liner 0.9-1.2mm 3.5m/Red | XLW006453 | |
| Wire Liner 0.9-1.2mm 5.0m/Red | XLW006454 | |
| E-1 | DL Chili -Teflon Liner 1.0-1.2mm 3.0m | XLW005921 |
| DL Chili -Teflon Liner 1.0-1.2mm 4.5m | XLW005938 | |
| DL Chili -Teflon Liner 1.0-1.2mm 3.5m | XLW007961 | |
| DL Chili -Teflon Liner 1.0-1.2mm 5.0m | XLW007962 | |
| No. | Description | Order |
| 1 | Swan Neck 50° | XLSP004563 |
| 2 | Front Handle | XL4303320 |
| 2-1 | Connecting Ring | XL4266500 |
| 3 | Switch | XL4182500 |
| 4 | Link Piece | XL3146280A |
| 4-1 | Cable Support | XL3133490 |
| 5 | Gas Hose Red φ5*8 Units:100m | XL9370184 |
| 5-1 | Hose Clamp φ8.7mm | XLSP9377119 |
| 6 | Water Hose Blue φ5*8 Units:100m | XL9370187 |
| 6-1 | Hose Clamp φ9.0mm | XL9377122 |
| 7 | Wire Conduit | XL9370163 |
| 8 | Power Cable | |
| 9 | Control Cable 2-pole Units:200m | |
| 9-1 | Trigger Wire Connector | XLSP9769112 |
| 9-2 | Trigger Wire Connector Female | XLSP9769142 |
| 10 | Outer Cover φ25x1.5 Units:20 m | |
| 11 | Water Outlet Hose Red φ5*8 With Plug Nipple ND 5mm L=0.6m | XL9370129 |
| 12 | Plug Nipple ND 5mm | XLSP9568902 |
| 13 | Fastener Cap Red | XLSP4298550 |
| 13-1 | Fastener Cap Blue | XLSP4298560 |
| 14 | Rubber Shield | XL4295010 |
| 14-1 | Rubber Shield 50° | XL4295000 |
| 15 | Rear Cable Support | XL3137900 |
| 16 | Rear Handle Water | XL4270500 |
| 17 | Rear Connector Nut | XL9592105 |
| 18 | Kemppi Water Euro Central Connector | XL4236230 |
| 19 | Jacket Nut | XLSP9580158 |
