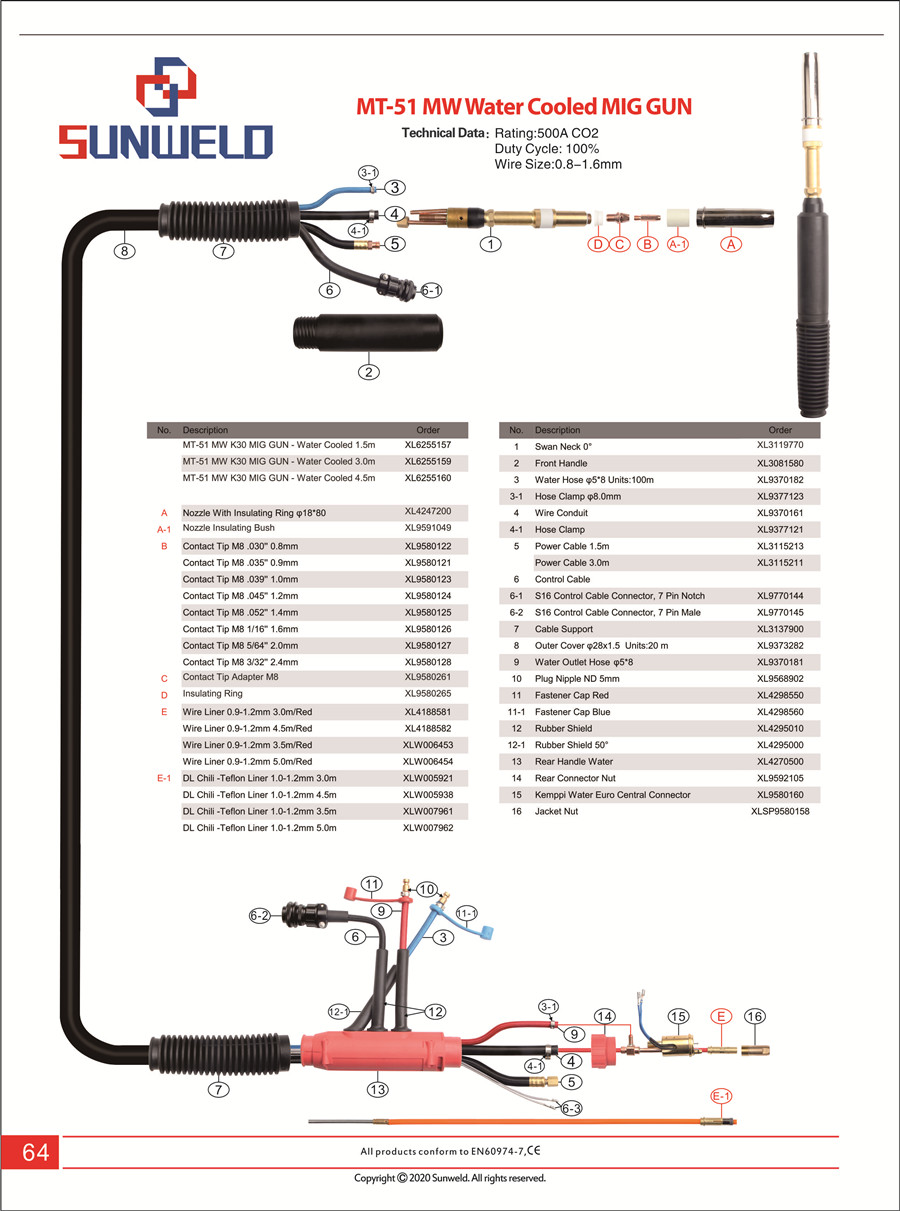

MT-51 MW Water Cooled MIG GUN
Technical Data：	Rating:500A CO2
	Duty Cycle:100%
	Wire Size:0.8-1.6mm
No.	Description	Order
	MT-51 MW K30 MIG GUN - Water Cooled 1.5m	XL6255157
	MT-51 MW K30 MIG GUN - Water Cooled 3.0m	XL6255159
	MT-51 MW K30 MIG GUN - Water Cooled 4.5m	XL6255160
A	Nozzle With Insulating Ring φ18*80	XL4247200
A-1	Nozzle Insulating Bush	XL9591049
B	Contact Tip M8 .030'' 0.8mm	XL9580122
	Contact Tip M8 .035'' 0.9mm	XL9580121
	Contact Tip M8 .039'' 1.0mm	XL9580123
	Contact Tip M8 .045'' 1.2mm	XL9580124
	Contact Tip M8 .052'' 1.4mm	XL9580125
	Contact Tip M8 1/16'' 1.6mm	XL9580126
	Contact Tip M8 5/64'' 2.0mm	XL9580127
	Contact Tip M8 3/32'' 2.4mm	XL9580128
C	Contact Tip Adapter M8	XL9580261
D	Insulating Ring	XL9580265
E	Wire Liner 0.9-1.2mm 3.0m/Red	XL4188581
	Wire Liner 0.9-1.2mm 4.5m/Red	XL4188582
	Wire Liner 0.9-1.2mm 3.5m/Red	XLW006453
	Wire Liner 0.9-1.2mm 5.0m/Red	XLW006454
E-1	DL Chili -Teflon Liner 1.0-1.2mm 3.0m	XLW005921
	DL Chili -Teflon Liner 1.0-1.2mm 4.5m	XLW005938
	DL Chili -Teflon Liner 1.0-1.2mm 3.5m	XLW007961
	DL Chili -Teflon Liner 1.0-1.2mm 5.0m	XLW007962
No.	Description	Order
1	Swan Neck 50°	XL3119770
2	Front Handle	XL3081580
3	Water Hose Black φ5*8 Units:100m	XL9370182
3-1	Hose Clamp φ9.0mm	XL9377123
4	Wire Conduit	XL9370161
4-1	Hose Clamp	XL9377121
5	Power Cable 1.5m	XL3115213
	Power Cable 3.0m	XL3115211
6	Control Cable
6-1	S16 Control Cable Connector, 7 Pin Notch	XL9770144
6-2	S16 Control Cable Connector, 7 Pin Male	XL9770145
7	Cable Support	XL3137900
8	Outer Cover φ28x1.5  Units:20 m	XL9373282
9	Water Outlet Hose Black φ5*8	XL9370181
10	Plug Nipple ND 5mm	XL9568902
11	Fastener Cap Red	XL4298550
11-1	Fastener Cap Blue	XL4298560
12	Rubber Shield	XL4295010
12-1	Rubber Shield 50°	XL4295000
13	Rear Handle Water	XL4270500
14	Rear Connector Nut	XL9592105
15	Kemppi Water Euro Central Connector	XL9580160
16	Jacket Nut	XLSP9580158
