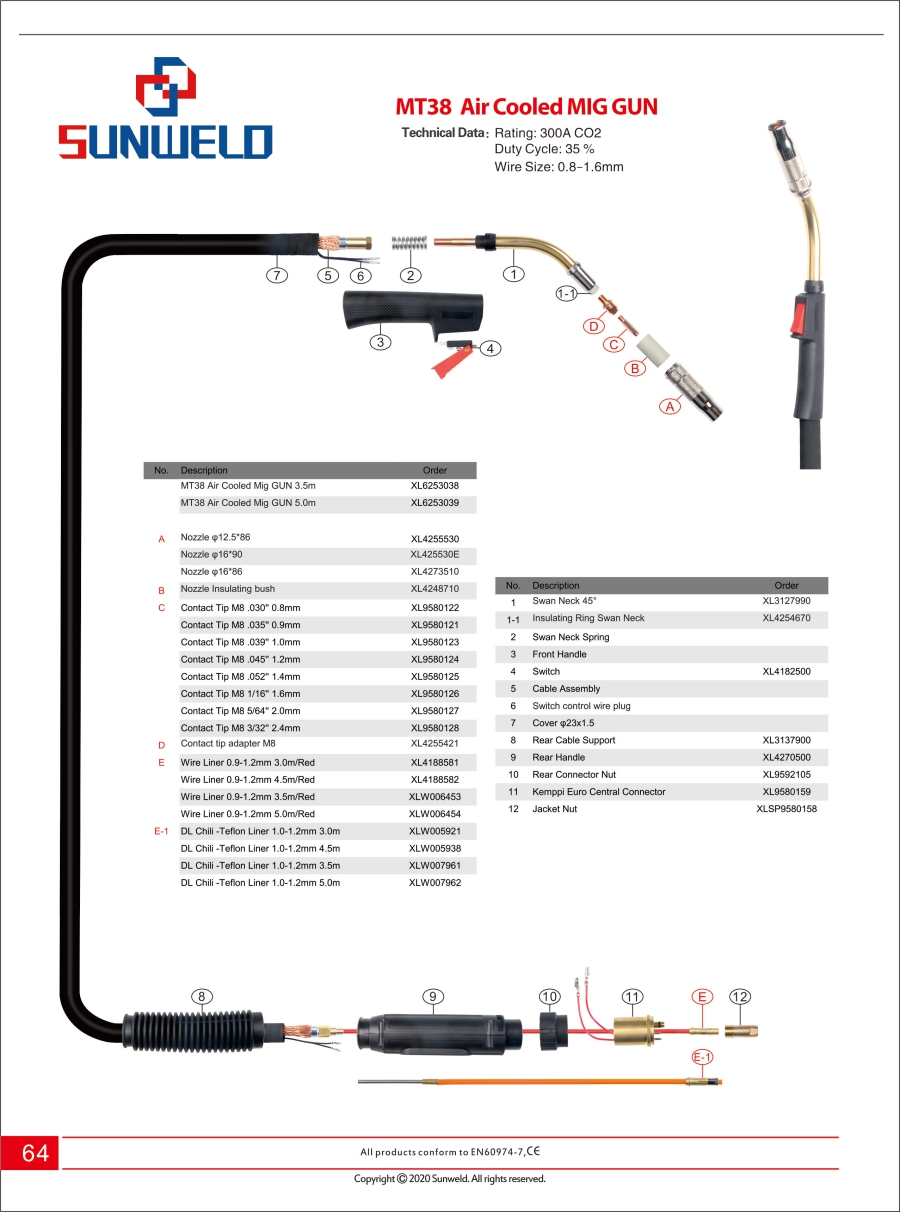

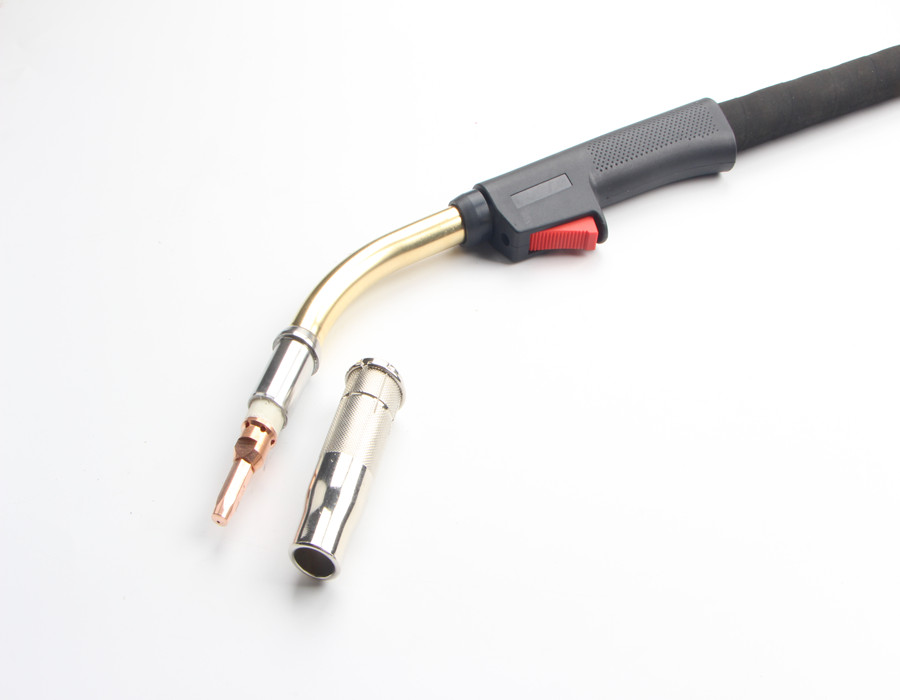

MT38 Air Cooled MIG GUN (XL6253038 XL6253039)

MT38 Air Cooled MIG GUN Technical Data: Rating: 300A CO2 Duty Cycle:35% Wire Size: 0.8–1.6mm MT38 Air Cooled Mig GUN 3.5m XL6253038 MT38 Air Cooled Mig GUN 5.0m XL6253039

Products Details

MT38
 MT38  Air Cooled MIG GUN
Technical Data Rating: 300A CO2
Duty Cycle:35%
Wire Size: 0.8–1.6mm
No. Description Order
MT38 Air Cooled Mig GUN 3.5m XL6253038
MT38 Air Cooled Mig GUN 5.0m XL6253039
A Nozzle φ12.5*86 XL4255530
Nozzle φ16*90 XL425530E
Nozzle φ16*86 XL4273510
B Nozzle Insulating bush XL4248710
C Contact Tip M8 .030'' 0.8mm XL9580122
Contact Tip M8 .035'' 0.9mm XL9580121
Contact Tip M8 .039'' 1.0mm XL9580123
Contact Tip M8 .045'' 1.2mm XL9580124
Contact Tip M8 .052'' 1.4mm XL9580125
Contact Tip M8 1/16'' 1.6mm XL9580126
Contact Tip M8 5/64'' 2.0mm XL9580127
Contact Tip M8 3/32'' 2.4mm XL9580128
D Contact tip adapter M8 XL4255421
E Neck Insulating bush XL4254670
F Wire Liner 0.9-1.2mm 3.0m/Red XL4188581
Wire Liner 0.9-1.2mm 4.5m/Red XL4188582
Wire Liner 0.9-1.2mm 3.5m/Red XLW006453
Wire Liner 0.9-1.2mm 5.0m/Red XLW006454
F-1 DL Chili -Teflon Liner 1.0-1.2mm 3.0m XLW005921
DL Chili -Teflon Liner 1.0-1.2mm 4.5m XLW005938
DL Chili -Teflon Liner 1.0-1.2mm 3.5m XLW007961
DL Chili -Teflon Liner 1.0-1.2mm 5.0m XLW007962
No. Description Order
1 Swan Neck 45° XL3127990
1-1 Insulating Ring Swan Neck XL4254670
2 Swan Neck Spring
3 Front Handle
4 Switch XL4182500
5 Cable Assembly
6 Switch control wire plug
7 Cover φ23x1.5
8 Rear Cable Support XL3137900
9 Rear Handle XL4270500
10 Rear Connector Nut XL9592105
11 Kemppi Euro Central Connector XL9580159
12 Jacket Nut XLSP9580158
