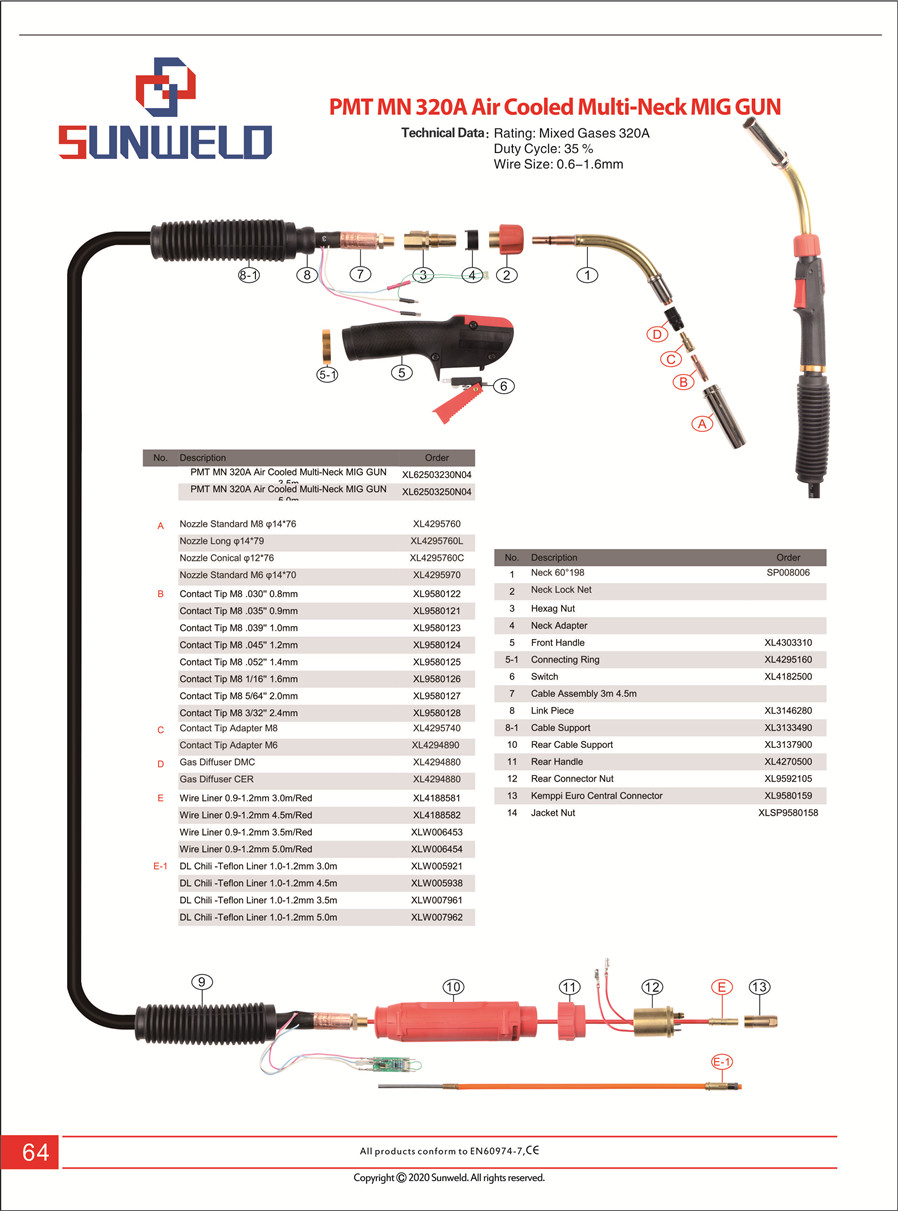

PMT MN 320A Air Cooled Multi-Neck MIG GUN
Technical Data：	Rating: Mixed Gases 320A
	Duty Cycle: 35 %
	Wire Size: 0.6-1.6mm
	PMT MN 320A Air Cooled Multi-Neck MIG GUN 3.5m	XL62503230N04
	PMT MN 320A Air Cooled Multi-Neck MIG GUN 5.0m	XL62503250N04
No.	Description	Order
A	Nozzle Standard M8 φ14*76	XL4295760
	Nozzle Long φ14*79	XL4295760L
	Nozzle Conical φ12*76	XL4295760C
	Nozzle Standard M6 φ14*70	XL4295970
B	Contact Tip M8 .030'' 0.8mm	XL9580122
	Contact Tip M8 .035'' 0.9mm	XL9580121
	Contact Tip M8 .039'' 1.0mm	XL9580123
	Contact Tip M8 .045'' 1.2mm	XL9580124
	Contact Tip M8 .052'' 1.4mm	XL9580125
	Contact Tip M8 1/16'' 1.6mm	XL9580126
	Contact Tip M8 5/64'' 2.0mm	XL9580127
	Contact Tip M8 3/32'' 2.4mm	XL9580128
C	Contact Tip Adapter M8	XL4295740
	Contact Tip Adapter M6	XL4294890
D	Gas Diffuser DMC	XL4294880
	Gas Diffuser CER	XL4294880
E	Wire Liner 0.9-1.2mm 3.0m/Red	XL4188581
	Wire Liner 0.9-1.2mm 4.5m/Red	XL4188582
	Wire Liner 0.9-1.2mm 3.5m/Red	XLW006453
	Wire Liner 0.9-1.2mm 5.0m/Red	XLW006454
E-1	DL Chili -Teflon Liner 1.0-1.2mm 3.0m	XLW005921
	DL Chili -Teflon Liner 1.0-1.2mm 4.5m	XLW005938
	DL Chili -Teflon Liner 1.0-1.2mm 3.5m	XLW007961
	DL Chili -Teflon Liner 1.0-1.2mm 5.0m	XLW007962
No.	Description	Order
1	Neck 60°198	SP008006
2	Neck Lock Net
3	Hexag Nut
4	Neck Adapter
5	Front Handle	XL4303310
5-1	Connecting Ring	XL4295160
6	Switch	XL4182500
7	Cable Assembly 3m 4.5m
8	Link Piece	XL3146280
8-1	Cable Support	XL3133490
10	Rear Cable Support	XL3137900
11	Rear Handle	XL4270500
12	Rear Connector Nut	XL9592105
13	Kemppi Euro Central Connector	XL9580159
14	Jacket Nut	XLSP9580158
