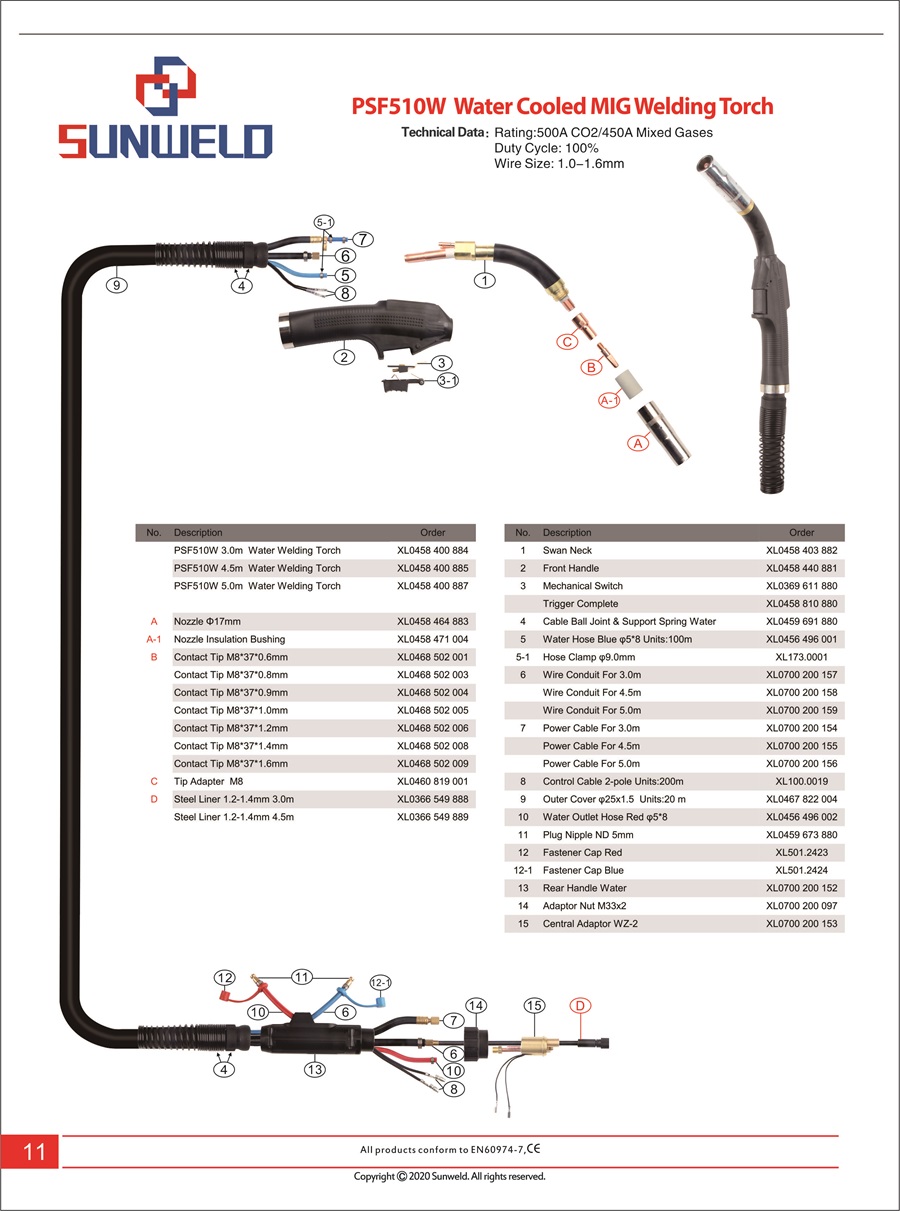

PSF510W Water Cooled MIG Welding Torch(XL0458 400 884 XL0458 400 885 XL0458 400 887)

PSF510W Water Cooled MIG Welding Torch Technical Data: Rating:500A CO2/450A Mixed Gases Duty Cycle: 100% Wire Size: 1.0-1.6mm PSF510W 3.0m  Water Welding Torch XL0458 400 884 PSF510W 4.5m  Water Welding Torch XL0458 400 885 PSF510W 5.0m  Water Welding Torch XL0458 400 887

Products Details

510W
PSF510W Water Cooled MIG Welding Torch
Technical Data Rating:500A CO2/450A Mixed Gases
Duty Cycle: 100%
Wire Size: 1.0-1.6mm
No. Description Order
PSF510W 3.0m  Water Welding Torch XL0458 400 884
PSF510W 4.5m  Water Welding Torch XL0458 400 885
PSF510W 5.0m  Water Welding Torch XL0458 400 887
A Nozzle Φ17mm   XL0458 464 883
A-1 Nozzle Insulation Bushing XL0458 471 004
B Contact Tip M8*37*0.6mm XL0468 502 001
Contact Tip M8*37*0.8mm XL0468 502 003
Contact Tip M8*37*0.9mm XL0468 502 004
Contact Tip M8*37*1.0mm XL0468 502 005
Contact Tip M8*37*1.2mm XL0468 502 006
Contact Tip M8*37*1.4mm XL0468 502 008
Contact Tip M8*37*1.6mm XL0468 502 009
C Tip Adapter  M8 XL0460 819 001
D Steel Liner 1.2-1.4mm 3.0m XL0366 549 888
Steel Liner 1.2-1.4mm 4.5m XL0366 549 889
No. Description Order
1 Swan Neck XL0458 403 882
2 Front Handle XL0458 440 881
3 Mechanical Switch XL0369 611 880
Trigger Complete XL0458 810 880
4 Cable Ball Joint & Support Spring Water XL0459 691 880
5 Water Hose Blue φ5*8 Units:100m XL0456 496 001
5-1 Hose Clamp φ9.0mm XL173.0001
6 Wire Conduit For 3.0m XL0700 200 157
Wire Conduit For 4.5m XL0700 200 158
Wire Conduit For 5.0m XL0700 200 159
7 Power Cable For 3.0m XL0700 200 154
Power Cable For 4.5m XL0700 200 155
Power Cable For 5.0m XL0700 200 156
8 Control Cable 2-pole Units:200m XL100.0019
9 Outer Cover φ25x1.5  Units:20 m XL0467 822 004
10 Water Outlet Hose Red φ5*8 XL0456 496 002
11 Plug Nipple ND 5mm XL0459 673 880
12 Fastener Cap Red XL501.2423
12-1 Fastener Cap Blue XL501.2424
13 Rear Handle Water XL0700 200 152
14 Adaptor Nut M33x2 XL0700 200 097
15 Central Adaptor WZ-2 XL0700 200 153
