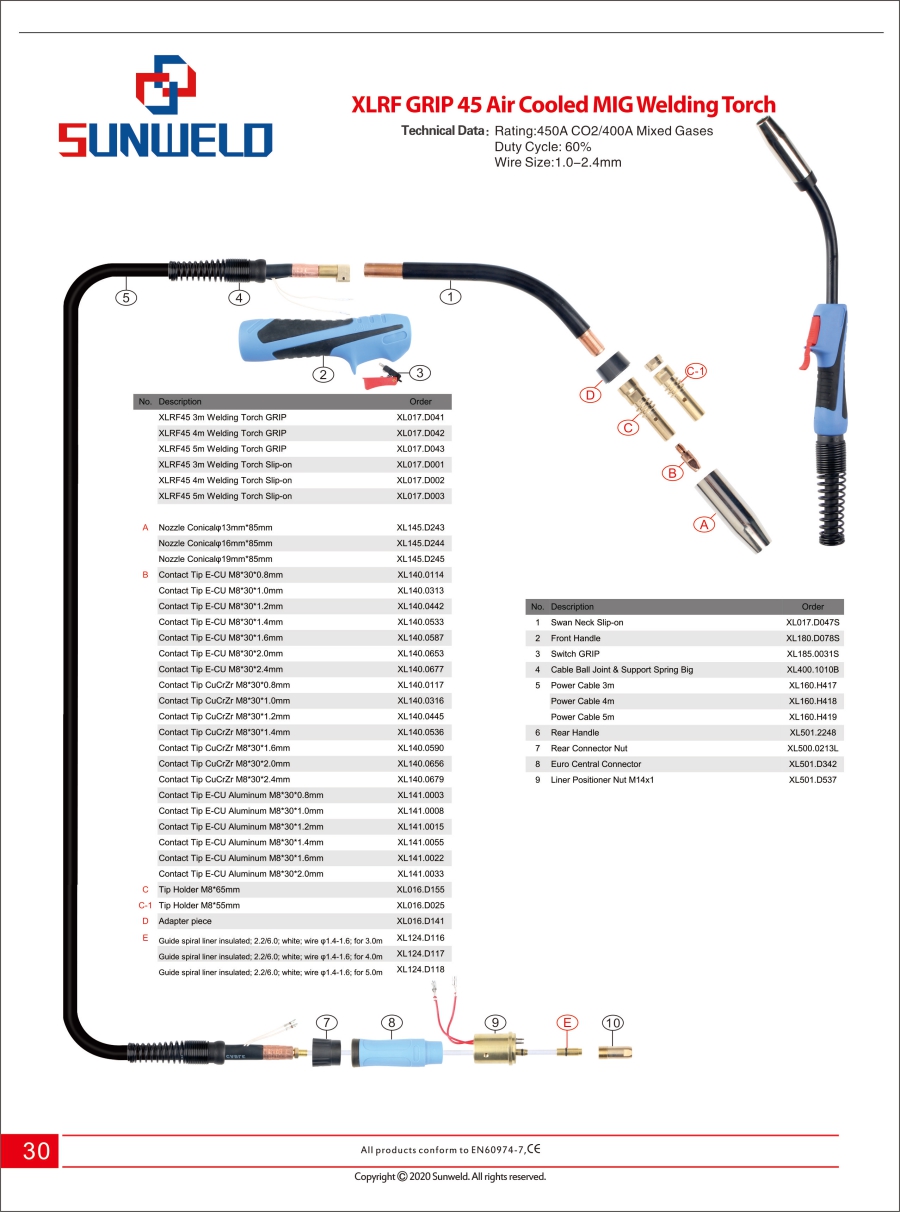

| XLRF GRIP 45 Air Cooled MIG Welding Torch | ||
| Technical Data： | Rating:450A CO2/400A Mixed Gases | |
| Duty Cycle:60% | ||
| Wire Size:1.0-2.4mm | ||
| No. | Description | Order |
| XLRF45 3m Welding Torch GRIP | XL017.D041 | |
| XLRF45 4m Welding Torch GRIP | XL017.D042 | |
| XLRF45 5m Welding Torch GRIP | XL017.D043 | |
| XLRF45 3m Welding Torch Slip-on | XL017.D001 | |
| XLRF45 4m Welding Torch Slip-on | XL017.D002 | |
| XLRF45 5m Welding Torch Slip-on | XL017.D003 | |
| A | Nozzle Conical φ13mm*85mm | XL145.D243 |
| Nozzle Conical φ16mm*85mm | XL145.D244 | |
| Nozzle Cylindrical φ19mm*85mm | XL145.D245 | |
| B | Contact Tip E-CU M8*30*0.8mm | XL140.0114 |
| Contact Tip E-CU M8*30*1.0mm | XL140.0313 | |
| Contact Tip E-CU M8*30*1.2mm | XL140.0442 | |
| Contact Tip E-CU M8*30*1.4mm | XL140.0533 | |
| Contact Tip E-CU M8*30*1.6mm | XL140.0587 | |
| Contact Tip E-CU M8*30*2.0mm | XL140.0653 | |
| Contact Tip E-CU M8*30*2.4mm | XL140.0677 | |
| Contact Tip CuCrZr M8*30*0.8mm | XL140.0117 | |
| Contact Tip CuCrZr M8*30*1.0mm | XL140.0316 | |
| Contact Tip CuCrZr M8*30*1.2mm | XL140.0445 | |
| Contact Tip CuCrZr M8*30*1.4mm | XL140.0536 | |
| Contact Tip CuCrZr M8*30*1.6mm | XL140.0590 | |
| Contact Tip CuCrZr M8*30*2.0mm | XL140.0656 | |
| Contact Tip CuCrZr M8*30*2.4mm | XL140.0679 | |
| Contact Tip E-CU Aluminum M8*30*0.8mm | XL141.0003 | |
| Contact Tip E-CU Aluminum M8*30*1.0mm | XL141.0008 | |
| Contact Tip E-CU Aluminum M8*30*1.2mm | XL141.0015 | |
| Contact Tip E-CU Aluminum M8*30*1.4mm | XL141.0055 | |
| Contact Tip E-CU Aluminum M8*30*1.6mm | XL141.0022 | |
| Contact Tip E-CU Aluminum M8*30*2.0mm | XL141.0033 | |
| C | Tip Holder M8*65mm | XL016.D155 |
| C-1 | Tip Holder M8*55mm | XL016.D025 |
| D | Adapter piece | XL016.D141 |
| E | Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 3.0m | XL124.D042 |
| Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 4.0m | XL124.D043 | |
| Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 5.0m | XL124.D044 | |
| No. | Description | Order |
| 1 | Swan Neck Slip-on | XL017.D047S |
| 2 | Front Handle | XL180.D078S |
| 3 | Switch GRIP | XL185.0031S |
| 4 | Cable Ball Joint & Support Spring Big | XL400.1010B |
| 5 | Power Cable 3m | XL160.H417 |
| Power Cable 4m | XL160.H418 | |
| Power Cable 5m | XL160.H419 | |
| 6 | Rear Handle | XL501.2248 |
| 7 | Rear Connector Nut | XL500.0213L |
| 8 | Euro Central Connector | XL501.D342 |
| 9 | Liner Positioner Nut M14x1 | XL501.D537 |
