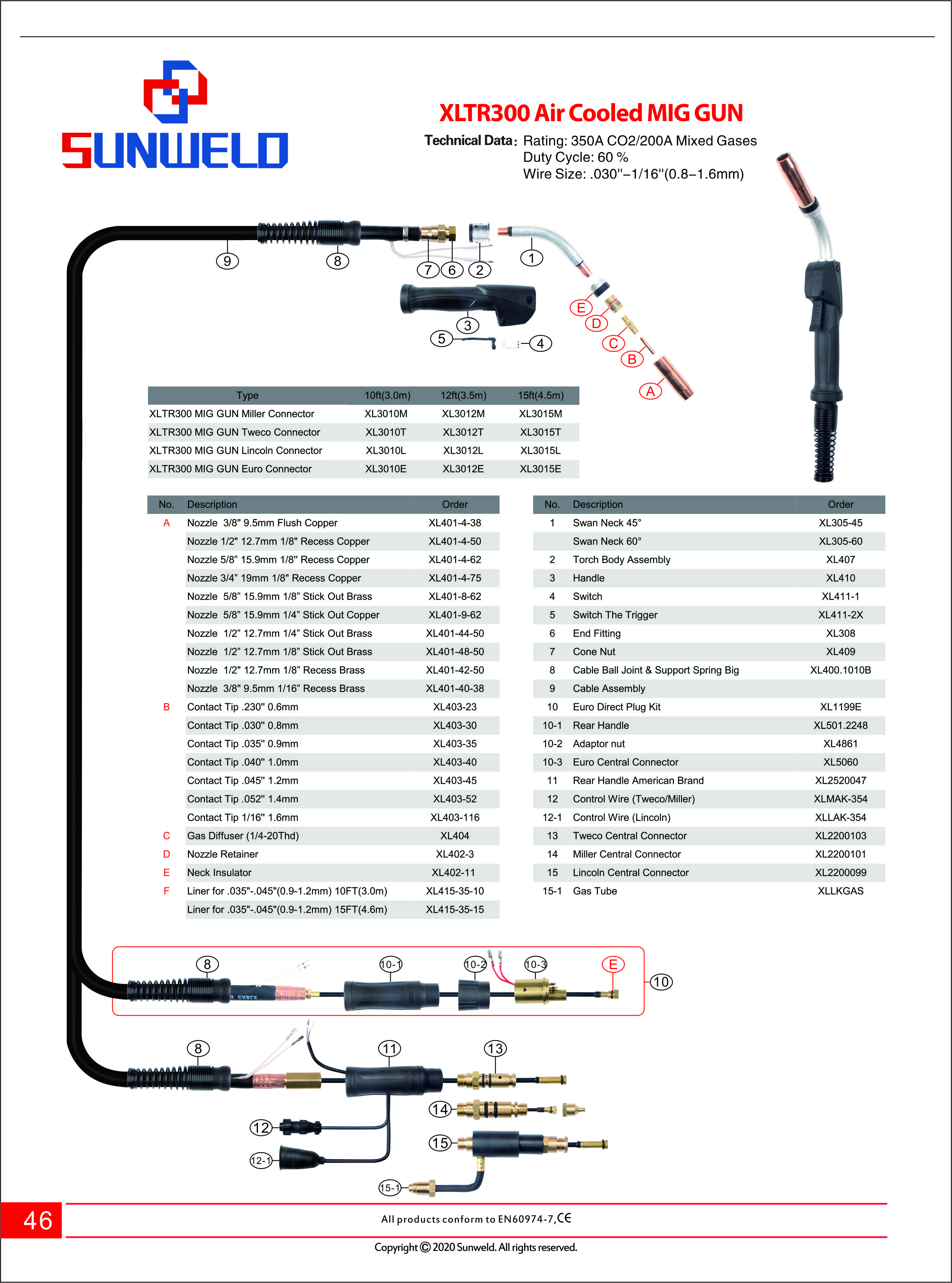

XLTR300 Air Cooled MIG GUN
Technical Data：	Rating: 350A CO2/200A Mixed Gases
	Duty Cycle: 60%
	Wire Size: .030''-1/16''(0.8-1.6mm)
	Type	10ft(3.0m)	12ft(3.5m)	15ft(4.5m)
	XLTR300 MIG GUN Miller Connector	XL3010M	XL3012M	XL3015M
	XLTR300 MIG GUN Tweco Connector	XL3010T	XL3012T	XL3015T
	XLTR300 MIG GUN Lincoln Connector	XL3010L	XL3012L	XL3015L
	XLTR300 MIG GUN Euro Connector	XL3010E	XL3012E	XL3015E
No.	Description	Order
A	Nozzle 3/8" 9.5mm Flush Copper	XL401-4-38
	Nozzle 1/2" 12.7mm 1/8" Recess Copper	XL401-4-50
	Nozzle 5/8” 15.9mm 1/8'' Recess Copper	XL401-4-62
	Nozzle 3/4” 19mm 1/8" Recess Copper	XL401-4-75
	Nozzle 5/8” 15.9mm 1/8” Stick Out Brass	XL401-8-62
	Nozzle 5/8” 15.9mm 1/4” Stick Out Copper	XL401-9-62
	Nozzle 1/2” 12.7mm 1/4” Stick Out Brass	XL401-44-50
	Nozzle 1/2” 12.7mm 1/8” Stick Out Brass	XL401-48-50
	Nozzle 1/2" 12.7mm 1/8” Recess Brass	XL401-42-50
	Nozzle  3/8" 9.5mm 1/16” Recess Brass	XL401-40-38
B	Contact Tip .230'' 0.6mm	XL403-23
	Contact Tip .030'' 0.8mm	XL403-30
	Contact Tip .035'' 0.9mm	XL403-35
	Contact Tip .040'' 1.0mm	XL403-40
	Contact Tip .045'' 1.2mm	XL403-45
	Contact Tip .052'' 1.4mm	XL403-52
	Contact Tip 1/16'' 1.6mm	XL403-116
C	Gas Diffuser (1/4-20Thd)	XL404
D	Nozzle Retainer	XL402-3
E	Neck Insulator	XL402-11
F	Liner for .035"-.045"(0.9-1.2mm) 10FT(3.0m)	XL415-35-10
	Liner for .035"-.045"(0.9-1.2mm) 15FT(4.6m)	XL415-35-15
No.	Description	Order
1	Swan Neck 45°	XL305-45
	Swan Neck 60°	XL305-60
2	Torch Body Assembly	XL407
3	Handle	XL410
4	Switch	XL411-1
5	Switch The Trigger	XL411-2X
6	End Fitting	XL308
7	Cone Nut	XL409
8	Cable Ball Joint & Support Spring Big	XL400.1010B
9	Cable Assembly
10	Euro Direct Plug Kit	XL1199E
10-1	Rear Handle	XL501.2248
10-2	Adaptor nut	XL4861
10-3	Euro Central Connector	XL5060
11	Rear Handle American Brand	XL2520047
12	Control Wire (Tweco/Miller)	XLMAK-354
12-1	Control Wire (Lincoln)	XLLAK-354
13	Tweco Central Connector	XL2200103
14	Miller Central Connector	XL2200101
15	Lincoln Central Connector	XL2200099
15-1	Gas Tube	XLLKGAS
