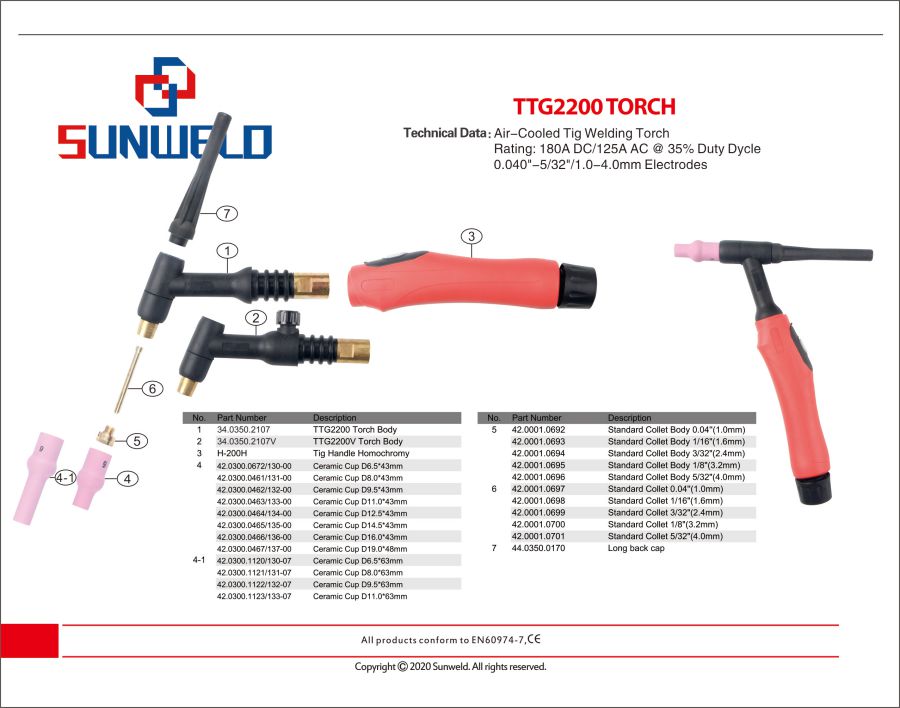

| TTG2200 TORCH | ||
| Air-Cooled Tig Welding Torch | ||
| Rating: 180A DC/125A AC @ 35% Duty Dycle | ||
| 0.040"-5/32"/1.0-4.0mm Electrodes | ||
| 1 | 34.0350.2107 | TTG2200 Torch Body |
| 2 | 34.0350.2107V | TTG2200V Torch Body |
| 3 | H-200H | Tig Handle Homochromy |
| 4 | 42.0300.0672/130-00 | Ceramic Cup D6.5*43mm |
| 42.0300.0461/131-00 | Ceramic Cup D8.0*43mm | |
| 42.0300.0462/132-00 | Ceramic Cup D9.5*43mm | |
| 42.0300.0463/133-00 | Ceramic Cup D11.0*43mm | |
| 42.0300.0464/134-00 | Ceramic Cup D12.5*43mm | |
| 42.0300.0465/135-00 | Ceramic Cup D14.5*43mm | |
| 42.0300.0466/136-00 | Ceramic Cup D16.0*43mm | |
| 42.0300.0467/137-00 | Ceramic Cup D19.0*48mm | |
| 4-1 | 42.0300.1120/130-07 | Ceramic Cup D6.5*63mm |
| 42.0300.1121/131-07 | Ceramic Cup D8.0*63mm | |
| 42.0300.1122/132-07 | Ceramic Cup D9.5*63mm | |
| 42.0300.1123/133-07 | Ceramic Cup D11.0*63mm | |
| 5 | 42.0001.0692 | Standard Collet Body 0.04''(1.0mm) |
| 42.0001.0693 | Standard Collet Body 1/16"(1.6mm) | |
| 42.0001.0694 | Standard Collet Body 3/32"(2.4mm) | |
| 42.0001.0695 | Standard Collet Body 1/8"(3.2mm) | |
| 42.0001.0696 | Standard Collet Body 5/32"(4.0mm) | |
| 6 | 42.0001.0697 | Standard Collet 0.04''(1.0mm) |
| 42.0001.0698 | Standard Collet 1/16"(1.6mm) | |
| 42.0001.0699 | Standard Collet 3/32"(2.4mm) | |
| 42.0001.0700 | Standard Collet 1/8"(3.2mm) | |
| 42.0001.0701 | Standard Collet 5/32"(4.0mm) | |
| 7 | 44.0350.0170 | Long back cap |
