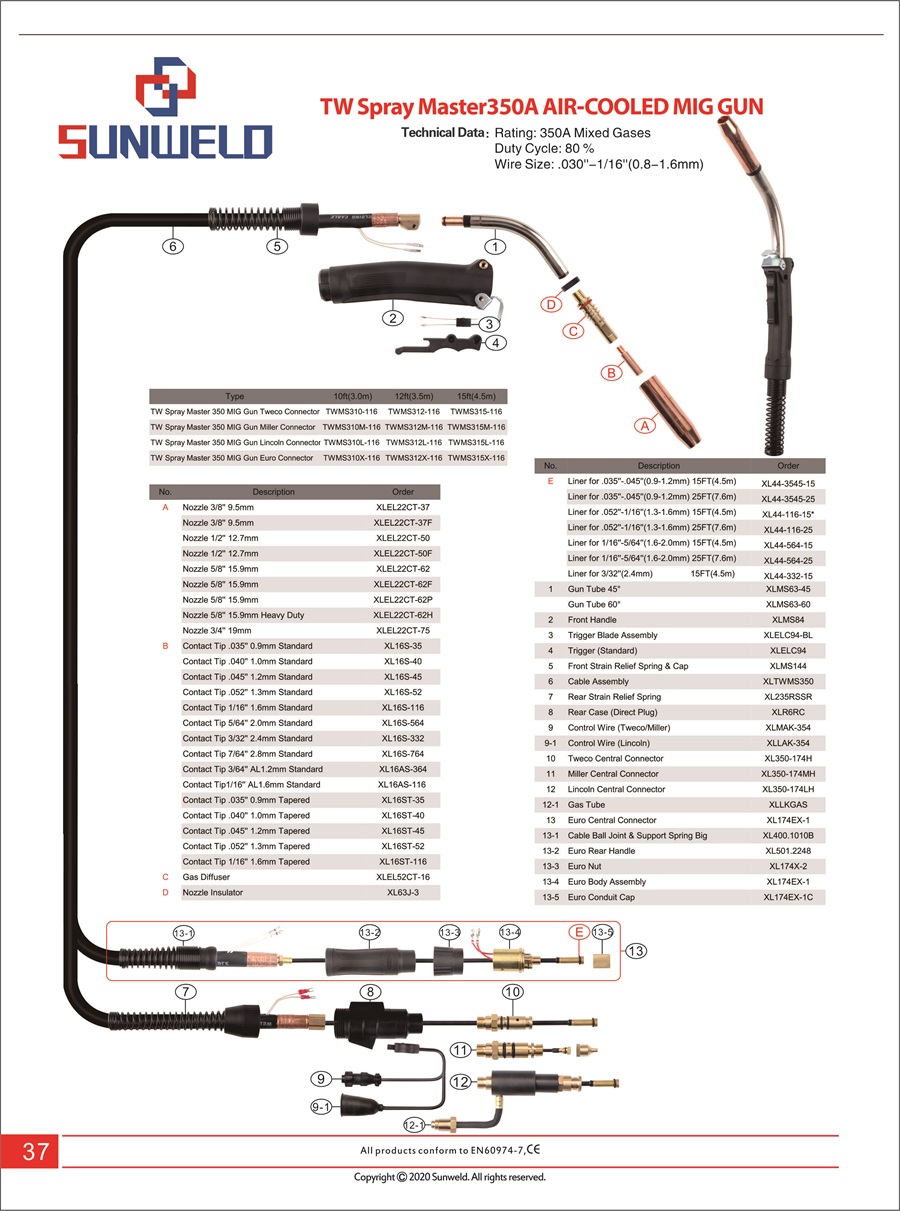

| TW Spray Master 350A AIR-COOLED MIG GUN | ||||
| Rating: 350A Mixed Gases | ||||
| Duty Cycle: 80 % | ||||
| Wire Size: .030''-1/16''(0.8-1.6mm) | ||||
| Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) | |
| TW Spray Master 350 MIG Gun Tweco Connector | TWMS310-116 | TWMS312-116 | TWMS315-116 | |
| TW Spray Master 350 MIG Gun Miller Connector | TWMS310M-116 | TWMS312M-116 | TWMS315M-116 | |
| TW Spray Master 350 MIG Gun Lincoln Connector | TWMS310L-116 | TWMS312L-116 | TWMS315L-116 | |
| TW Spray Master 350 MIG Gun Euro Connector | TWMS310X-116 | TWMS312X-116 | TWMS315X-116 | |
| No. | Description | Order | ||
| A | Nozzle 3/8'' 9.5mm | XLEL22CT-37 | ||
| Nozzle 3/8'' 9.5mm | XLEL22CT-37F | |||
| Nozzle 1/2'' 12.7mm | XLEL22CT-50 | |||
| Nozzle 1/2'' 12.7mm | XLEL22CT-50F | |||
| Nozzle 5/8'' 15.9mm | XLEL22CT-62 | |||
| Nozzle 5/8'' 15.9mm | XLEL22CT-62F | |||
| Nozzle 5/8'' 15.9mm | XLEL22CT-62P | |||
| Nozzle 5/8'' 15.9mm Heavy Duty | XLEL22CT-62H | |||
| Nozzle 3/4'' 19mm | XLEL22CT-75 | |||
| B | Contact Tip .035'' 0.9mm Standard | XL16S-35 | ||
| Contact Tip .040'' 1.0mm Standard | XL16S-40 | |||
| Contact Tip .045'' 1.2mm Standard | XL16S-45 | |||
| Contact Tip .052'' 1.3mm Standard | XL16S-52 | |||
| Contact Tip 1/16'' 1.6mm Standard | XL16S-116 | |||
| Contact Tip 5/64'' 2.0mm Standard | XL16S-564 | |||
| Contact Tip 3/32'' 2.4mm Standard | XL16S-332 | |||
| Contact Tip 7/64'' 2.8mm Standard | XL16S-764 | |||
| Contact Tip 3/64'' AL1.2mm Standard | XL16AS-364 | |||
| Contact Tip1/16'' AL1.6mm Standard | XL16AS-116 | |||
| Contact Tip .035'' 0.9mm Tapered | XL16ST-35 | |||
| Contact Tip .040'' 1.0mm Tapered | XL16ST-40 | |||
| Contact Tip .045'' 1.2mm Tapered | XL16ST-45 | |||
| Contact Tip .052'' 1.3mm Tapered | XL16ST-52 | |||
| Contact Tip 1/16'' 1.6mm Tapered | XL16ST-116 | |||
| C | Gas Diffuser | XLEL52CT-16 | ||
| D | Nozzle Insulator | XL63J-3 | ||
| E | Liner for .035''-.045''(0.9-1.2mm) 15FT(4.5m) | XL44-3545-15 | ||
| Liner for .035''-.045''(0.9-1.2mm) 25FT(7.6m) | XL44-3545-25 | |||
| Liner for .052''-1/16''(1.3-1.6mm) 15FT(4.5m) | XL44-116-15* | |||
| Liner for .052''-1/16''(1.3-1.6mm) 25FT(7.6m) | XL44-116-25 | |||
| Liner for 1/16''-5/64''(1.6-2.0mm) 15FT(4.5m) | XL44-564-15 | |||
| Liner for 1/16''-5/64''(1.6-2.0mm) 25FT(7.6m) | XL44-564-25 | |||
| Liner for 3/32''(2.4mm) 15FT(4.5m) | XL44-332-15 | |||
| No. | Description | Order | ||
| 1 | Gun Tube 45° | XLMS63-45 | ||
| Gun Tube 60° | XLMS63-60 | |||
| 2 | Front Handle | XLMS84 | ||
| 3 | Trigger Blade Assembly | XLELC94-BL | ||
| 4 | Trigger (Standard) | XLELC94 | ||
| 5 | Front Strain Relief Spring & Cap | XLMS144 | ||
| 6 | Cable Assembly | XLTWMS350 | ||
| 7 | Rear Strain Relief Spring | XL235RSSR | ||
| 8 | Rear Case (Direct Plug) | XLR6RC | ||
| 9 | Control Wire (Tweco/Miller) | XLMAK-354 | ||
| 9-1 | Control Wire (Lincoln) | XLLAK-354 | ||
| 10 | Tweco Central Connector | XL350-174H | ||
| 11 | Miller Central Connector | XL350-174MH | ||
| 12 | Lincoln Central Connector | XL350-174LH | ||
| 12-1 | Gas Tube | XLLKGAS | ||
| 13 | Euro Central Connector | XL174EX-1 | ||
| 13-1 | Cable Ball Joint & Support Spring Big | XL400.1010B | ||
| 13-2 | Euro Rear Handle | XL501.2248 | ||
| 13-3 | Euro Nut | XL174X-2 | ||
| 13-4 | Euro Body Assembly | XL174EX-1 | ||
| 13-5 | Euro Conduit Cap | XL174EX-1C | ||
