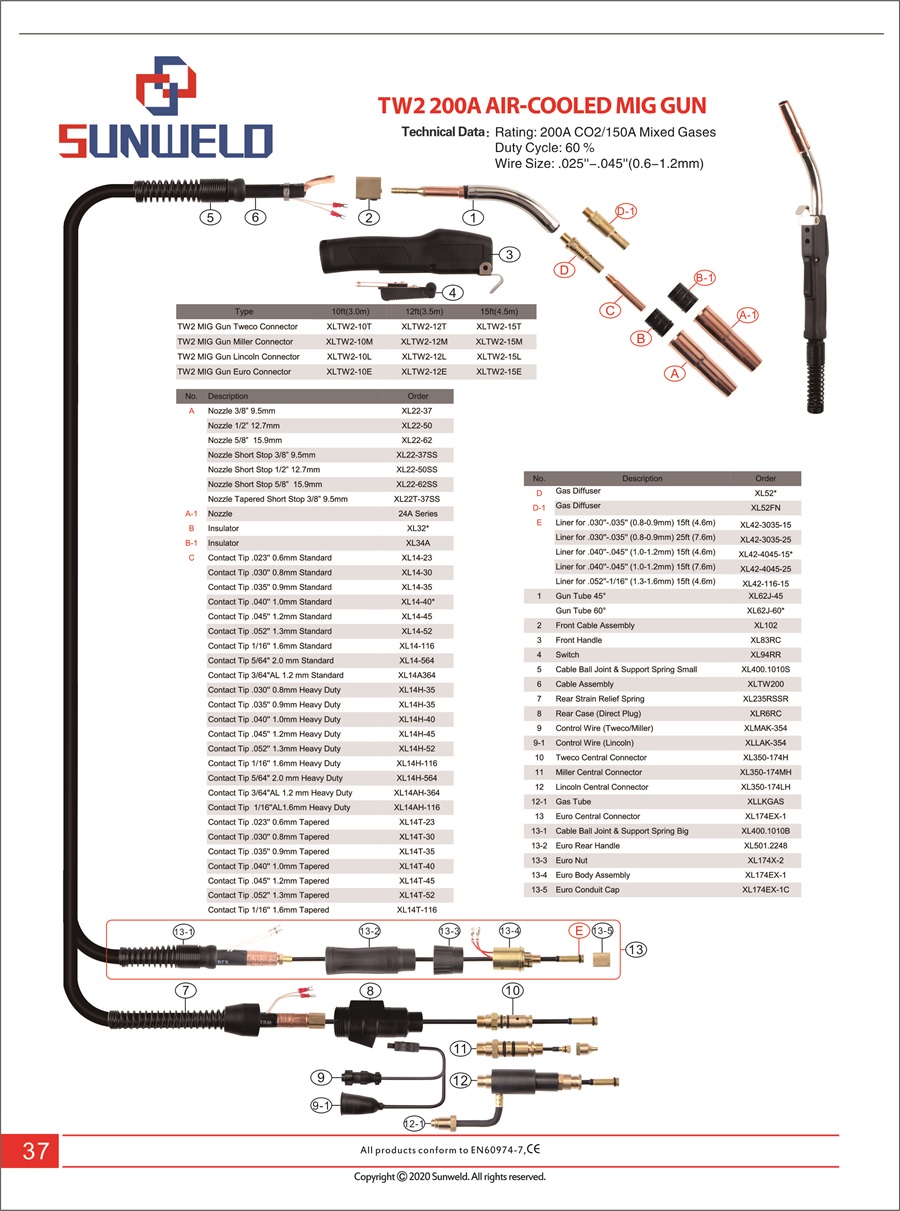

| TW2 200A AIR-COOLED MIG GUN | ||||
| Technical Data | Rating: 200A CO2/150A Mixed Gases | |||
| Duty Cycle: 60% | ||||
| Wire Size: .025''-.045''(0.6-1.2mm) | ||||
| Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) | |
| TW2 MIG Gun Tweco Connector | XLTW2-10T | XLTW2-12T | XLTW2-15T | |
| TW2 MIG Gun Miller Connector | XLTW2-10M | XLTW2-12M | XLTW2-15M | |
| TW2 MIG Gun Lincoln Connector | XLTW2-10L | XLTW2-12L | XLTW2-15L | |
| TW2 MIG Gun Euro Connector | XLTW2-10E | XLTW2-12E | XLTW2-15E | |
| No. | Description | Order | ||
| A | Nozzle 3/8” 9.5mm | XL22-37 | ||
| Nozzle 1/2” 12.7mm | XL22-50 | |||
| Nozzle 5/8" 15.9mm | XL22-62 | |||
| Nozzle Short Stop 3/8” 9.5mm | XL22-37SS | |||
| Nozzle Short Stop 1/2” 12.7mm | XL22-50SS | |||
| Nozzle Short Stop 5/8'' 15.9mm | XL22-62SS | |||
| Nozzle Tapered Short Stop 3/8” 9.5mm | XL22T-37SS | |||
| A-1 | Nozzle | 24A Series | ||
| B | Insulator | XL32* | ||
| B-1 | Insulator | XL34A | ||
| C | Contact Tip .023'' 0.6mm Standard | XL14-23 | ||
| Contact Tip .030'' 0.8mm Standard | XL14-30 | |||
| Contact Tip .035'' 0.9mm Standard | XL14-35 | |||
| Contact Tip .040'' 1.0mm Standard | XL14-40* | |||
| Contact Tip .045'' 1.2mm Standard | XL14-45 | |||
| Contact Tip .052'' 1.3mm Standard | XL14-52 | |||
| Contact Tip 1/16'' 1.6mm Standard | XL14-116 | |||
| Contact Tip 5/64" 2.0 mm Standard | XL14-564 | |||
| Contact Tip 3/64"AL 1.2 mm Standard | XL14A364 | |||
| Contact Tip .030'' 0.8mm Heavy Duty | XL14H-35 | |||
| Contact Tip .035'' 0.9mm Heavy Duty | XL14H-35 | |||
| Contact Tip .040'' 1.0mm Heavy Duty | XL14H-40 | |||
| Contact Tip .045'' 1.2mm Heavy Duty | XL14H-45 | |||
| Contact Tip .052'' 1.3mm Heavy Duty | XL14H-52 | |||
| Contact Tip 1/16'' 1.6mm Heavy Duty | XL14H-116 | |||
| Contact Tip 5/64" 2.0 mm Heavy Duty | XL14H-564 | |||
| Contact Tip 3/64"AL 1.2 mm Heavy Duty | XL14AH-364 | |||
| Contact Tip 1/16''AL1.6mm Heavy Duty | XL14AH-116 | |||
| Contact Tip .023'' 0.6mm Tapered | XL14T-23 | |||
| Contact Tip .030'' 0.8mm Tapered | XL14T-30 | |||
| Contact Tip .035'' 0.9mm Tapered | XL14T-35 | |||
| Contact Tip .040'' 1.0mm Tapered | XL14T-40 | |||
| Contact Tip .045'' 1.2mm Tapered | XL14T-45 | |||
| Contact Tip .052'' 1.3mm Tapered | XL14T-52 | |||
| Contact Tip 1/16'' 1.6mm Tapered | XL14T-116 | |||
| D | Gas Diffuser | XL52* | ||
| D-1 | Gas Diffuser | XL52FN | ||
| E | Liner for .030''-.035'' (0.8-0.9mm) 15ft (4.6m) | XL42-3035-15 | ||
| Liner for .030''-.035'' (0.8-0.9mm) 25ft (7.6m) | XL42-3035-25 | |||
| Liner for .040''-.045'' (1.0-1.2mm) 15ft (4.6m) | XL42-4045-15* | |||
| Liner for .040''-.045'' (1.0-1.2mm) 15ft (7.6m) | XL42-4045-25 | |||
| Liner for .052''-1/16'' (1.3-1.6mm) 15ft (4.6m) | XL42-116-15 | |||
| No. | Description | Order | ||
| 1 | Gun Tube 45° | XL62J-45 | ||
| Gun Tube 60° | XL62J-60* | |||
| 2 | Front Cable Assembly | XL102 | ||
| 3 | Front Handle | XL83RC | ||
| 4 | Switch | XL94RR | ||
| 5 | Cable Ball Joint & Support Spring Small | XL400.1010S | ||
| 6 | Cable Assembly | XLTW200 | ||
| 7 | Rear Strain Relief Spring | XL235RSSR | ||
| 8 | Rear Case (Direct Plug) | XLR6RC | ||
| 9 | Control Wire (Tweco/Miller) | XLMAK-354 | ||
| 9-1 | Control Wire (Lincoln) | XLLAK-354 | ||
| 10 | Tweco Central Connector | XL350-174H | ||
| 11 | Miller Central Connector | XL350-174MH | ||
| 12 | Lincoln Central Connector | XL350-174LH | ||
| 12-1 | Gas Tube | XLLKGAS | ||
| 13 | Euro Central Connector | XL174EX-1 | ||
| 13-1 | Cable Ball Joint & Support Spring Big | XL400.1010B | ||
| 13-2 | Euro Rear Handle | XL501.2248 | ||
| 13-3 | Euro Nut | XL174X-2 | ||
| 13-4 | Euro Body Assembly | XL174EX-1 | ||
| 13-5 | Euro Conduit Cap | XL174EX-1C |
