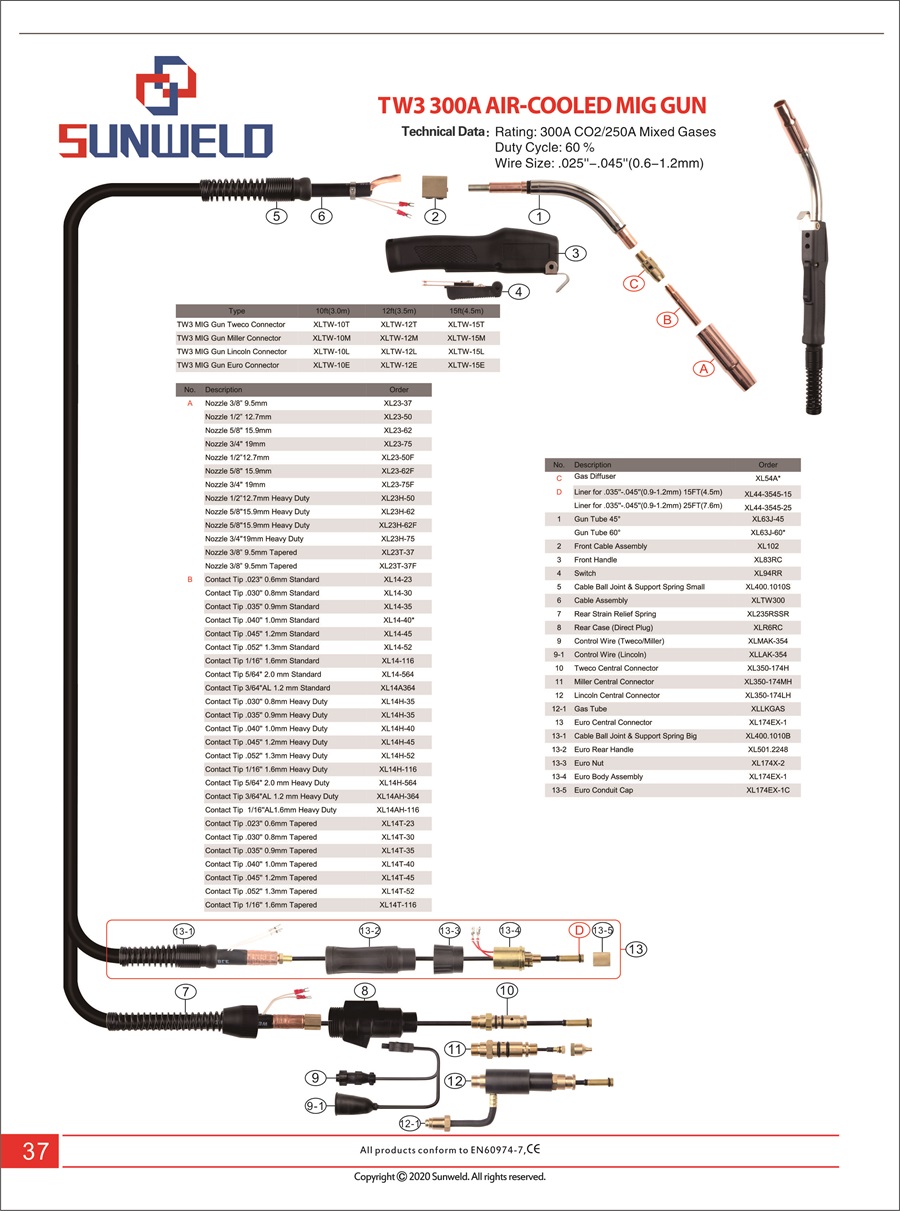

| TW3 300A AIR-COOLED MIG GUN | | | |
Technical Data | Rating: 300A CO2/250A Mixed Gases | | | |
| Duty Cycle: 60% | | | |
| Wire Size: .025''-.045''(0.6-1.2mm) | | | |
| Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) |
| TW3 MIG Gun Tweco Connector | XLTW-10T | XLTW-12T | XLTW-15T |
| TW3 MIG Gun Miller Connector | XLTW-10M | XLTW-12M | XLTW-15M |
| TW3 MIG Gun Lincoln Connector | XLTW-10L | XLTW-12L | XLTW-15L |
| TW3 MIG Gun Euro Connector | XLTW-10E | XLTW-12E | XLTW-15E |
| | | | |
No. | Description | Order | | |
A | Nozzle 3/8” 9.5mm | XL23-37 | | |
| Nozzle 1/2” 12.7mm | XL23-50 | | |
| Nozzle 5/8" 15.9mm | XL23-62 | | |
| Nozzle 3/4" 19mm | XL23-75 | | |
| Nozzle 1/2”12.7mm | XL23-50F | | |
| Nozzle 5/8" 15.9mm | XL23-62F | | |
| Nozzle 3/4" 19mm | XL23-75F | | |
| Nozzle 1/2”12.7mm Heavy Duty | XL23H-50 | | |
| Nozzle 5/8"15.9mm Heavy Duty | XL23H-62 | | |
| Nozzle 5/8"15.9mm Heavy Duty | XL23H-62F | | |
| Nozzle 3/4"19mm Heavy Duty | XL23H-75 | | |
| Nozzle 3/8” 9.5mm Tapered | XL23T-37 | | |
| Nozzle 3/8” 9.5mm Tapered | XL23T-37F | | |
B | Contact Tip .023'' 0.6mm Standard | XL14-23 | | |
| Contact Tip .030'' 0.8mm Standard | XL14-30 | | |
| Contact Tip .035'' 0.9mm Standard | XL14-35 | | |
| Contact Tip .040'' 1.0mm Standard | XL14-40* | | |
| Contact Tip .045'' 1.2mm Standard | XL14-45 | | |
| Contact Tip .052'' 1.3mm Standard | XL14-52 | | |
| Contact Tip 1/16'' 1.6mm Standard | XL14-116 | | |
| Contact Tip 5/64" 2.0 mm Standard | XL14-564 | | |
| Contact Tip 3/64"AL 1.2 mm Standard | XL14A364 | | |
| Contact Tip .030'' 0.8mm Heavy Duty | XL14H-35 | | |
| Contact Tip .035'' 0.9mm Heavy Duty | XL14H-35 | | |
| Contact Tip .040'' 1.0mm Heavy Duty | XL14H-40 | | |
| Contact Tip .045'' 1.2mm Heavy Duty | XL14H-45 | | |
| Contact Tip .052'' 1.3mm Heavy Duty | XL14H-52 | | |
| Contact Tip 1/16'' 1.6mm Heavy Duty | XL14H-116 | | |
| Contact Tip 5/64" 2.0 mm Heavy Duty | XL14H-564 | | |
| Contact Tip 3/64"AL 1.2 mm Heavy Duty | XL14AH-364 | | |
| Contact Tip 1/16''AL1.6mm Heavy Duty | XL14AH-116 | | |
| Contact Tip .023'' 0.6mm Tapered | XL14T-23 | | |
| Contact Tip .030'' 0.8mm Tapered | XL14T-30 | | |
| Contact Tip .035'' 0.9mm Tapered | XL14T-35 | | |
| Contact Tip .040'' 1.0mm Tapered | XL14T-40 | | |
| Contact Tip .045'' 1.2mm Tapered | XL14T-45 | | |
| Contact Tip .052'' 1.3mm Tapered | XL14T-52 | | |
| Contact Tip 1/16'' 1.6mm Tapered | XL14T-116 | | |
C | Gas Diffuser | XL54A* | | |
D | Liner for .035''-.045''(0.9-1.2mm) 15FT(4.5m) | XL44-3545-15 | | |
| Liner for .035''-.045''(0.9-1.2mm) 25FT(7.6m) | XL44-3545-25 | | |
| | | | |
No. | Description | Order | | |
1 | Gun Tube 45° | XL63J-45 | | |
| Gun Tube 60° | XL63J-60* | | |
2 | Front Cable Assembly | XL102 | | |
3 | Front Handle | XL83RC | | |
4 | Switch | XL94RR | | |
5 | Cable Ball Joint & Support Spring Small | XL400.1010S | | |
6 | Cable Assembly | XLTW300 | | |
7 | Rear Strain Relief Spring | XL235RSSR | | |
8 | Rear Case (Direct Plug) | XLR6RC | | |
9 | Control Wire (Tweco/Miller) | XLMAK-354 | | |
9-1 | Control Wire (Lincoln) | XLLAK-354 | | |
10 | Tweco Central Connector | XL350-174H | | |
11 | Miller Central Connector | XL350-174MH | | |
12 | Lincoln Central Connector | XL350-174LH | | |
12-1 | Gas Tube | XLLKGAS | | |
13 | Euro Central Connector | XL174EX-1 | | |
13-1 | Cable Ball Joint & Support Spring Big | XL400.1010B | | |
13-2 | Euro Rear Handle | XL501.2248 | | |
13-3 | Euro Nut | XL174X-2 | | |
13-4 | Euro Body Assembly | XL174EX-1 | | |
13-5 | Euro Conduit Cap | XL174EX-1C | | |
