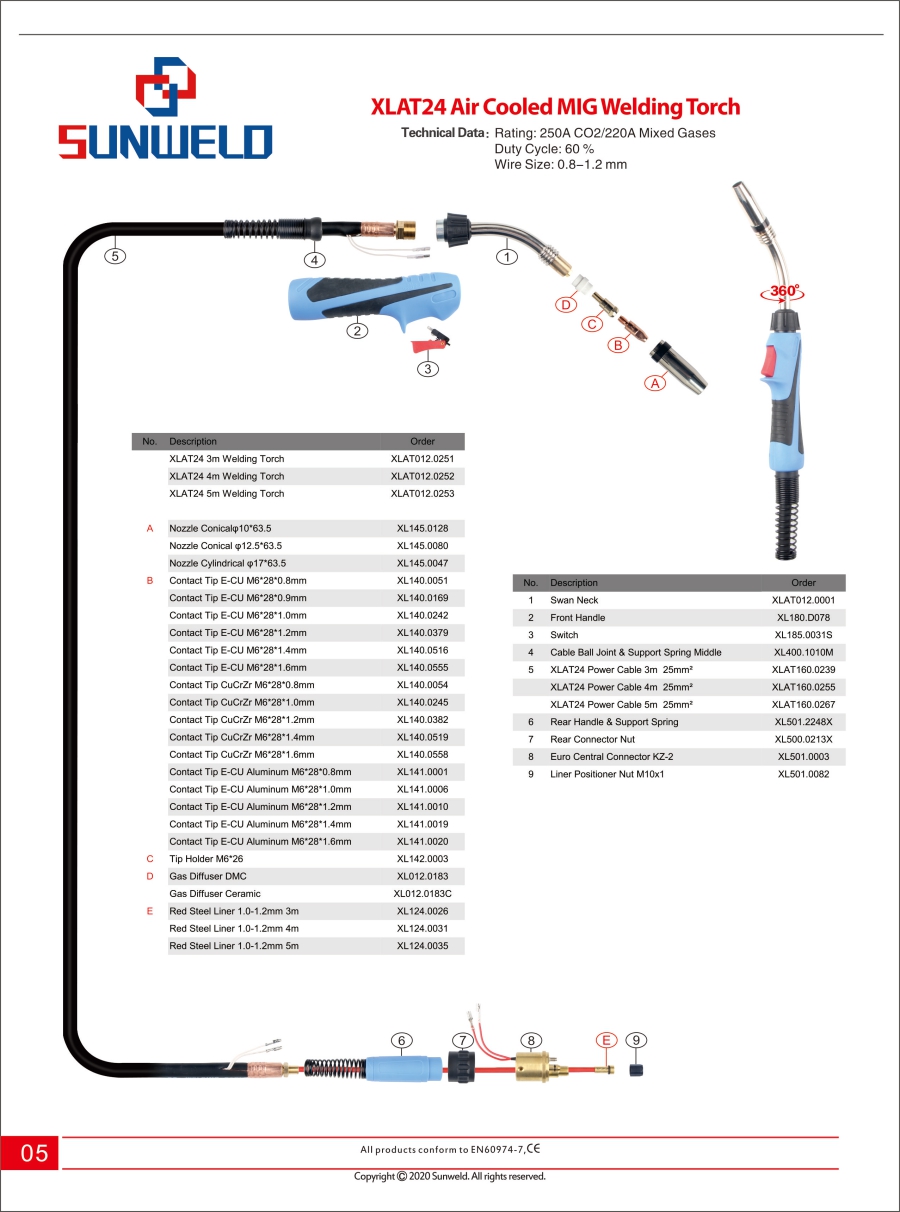

| XLAT24 Air Cooled MIG Welding Torch | ||
| Technical Data： | Rating: 250A CO2/220A Mixed Gases | |
| Duty Cycle: 60 % | ||
| Wire Size: 0.8-1.2 mm | ||
| No. | Description | Order |
| XLAT24 3m Welding Torch | XLAT012.0251 | |
| XLAT24 4m Welding Torch | XLAT012.0252 | |
| XLAT24 5m Welding Torch | XLAT012.0253 | |
| A | Nozzle Conicalφ10*63.5 | XL145.0128 |
| Nozzle Conical φ12.5*63.5 | XL145.0080 | |
| Nozzle Cylindrical φ17*63.5 | XL145.0047 | |
| B | Contact Tip E-CU M6*28*0.8mm | XL140.0051 |
| Contact Tip E-CU M6*28*0.9mm | XL140.0169 | |
| Contact Tip E-CU M6*28*1.0mm | XL140.0242 | |
| Contact Tip E-CU M6*28*1.2mm | XL140.0379 | |
| Contact Tip E-CU M6*28*1.4mm | XL140.0516 | |
| Contact Tip E-CU M6*28*1.6mm | XL140.0555 | |
| Contact Tip CuCrZr M6*28*0.8mm | XL140.0054 | |
| Contact Tip CuCrZr M6*28*1.0mm | XL140.0245 | |
| Contact Tip CuCrZr M6*28*1.2mm | XL140.0382 | |
| Contact Tip CuCrZr M6*28*1.4mm | XL140.0519 | |
| Contact Tip CuCrZr M6*28*1.6mm | XL140.0558 | |
| Contact Tip E-CU Aluminum M6*28*0.8mm | XL141.0001 | |
| Contact Tip E-CU Aluminum M6*28*1.0mm | XL141.0006 | |
| Contact Tip E-CU Aluminum M6*28*1.2mm | XL141.0010 | |
| Contact Tip E-CU Aluminum M6*28*1.4mm | XL141.0019 | |
| Contact Tip E-CU Aluminum M6*28*1.6mm | XL141.0020 | |
| C | Tip Holder M6*26 | XL142.0003 |
| D | Gas Diffuser DMC | XL012.0183 |
| Gas Diffuser Ceramic | XL012.0183C | |
| E | Red Steel Liner 1.0-1.2mm 3m | XL124.0026 |
| Red Steel Liner 1.0-1.2mm 4m | XL124.0031 | |
| Red Steel Liner 1.0-1.2mm 5m | XL124.0035 | |
| 1 | Swan Neck | XLAT012.0001 |
| 2 | Front Handle | XL180.D078 |
| 3 | Switch | XL185.0031S |
| 4 | Cable Ball Joint & Support Spring Middle | XL400.1010M |
| 5 | XLAT24 Power Cable 3m 25mm² | XLAT160.0239 |
| XLAT24 Power Cable 4m 25mm² | XLAT160.0255 | |
| XLAT24 Power Cable 5m 25mm² | XLAT160.0267 | |
| 6 | Rear Handle & Support Spring | XL501.2248X |
| 7 | Rear Connector Nut | XL500.0213X |
| 8 | Euro Central Connector KZ-2 | XL501.0003 |
| 9 | Liner Positioner Nut M10x1 | XL501.0082 |
