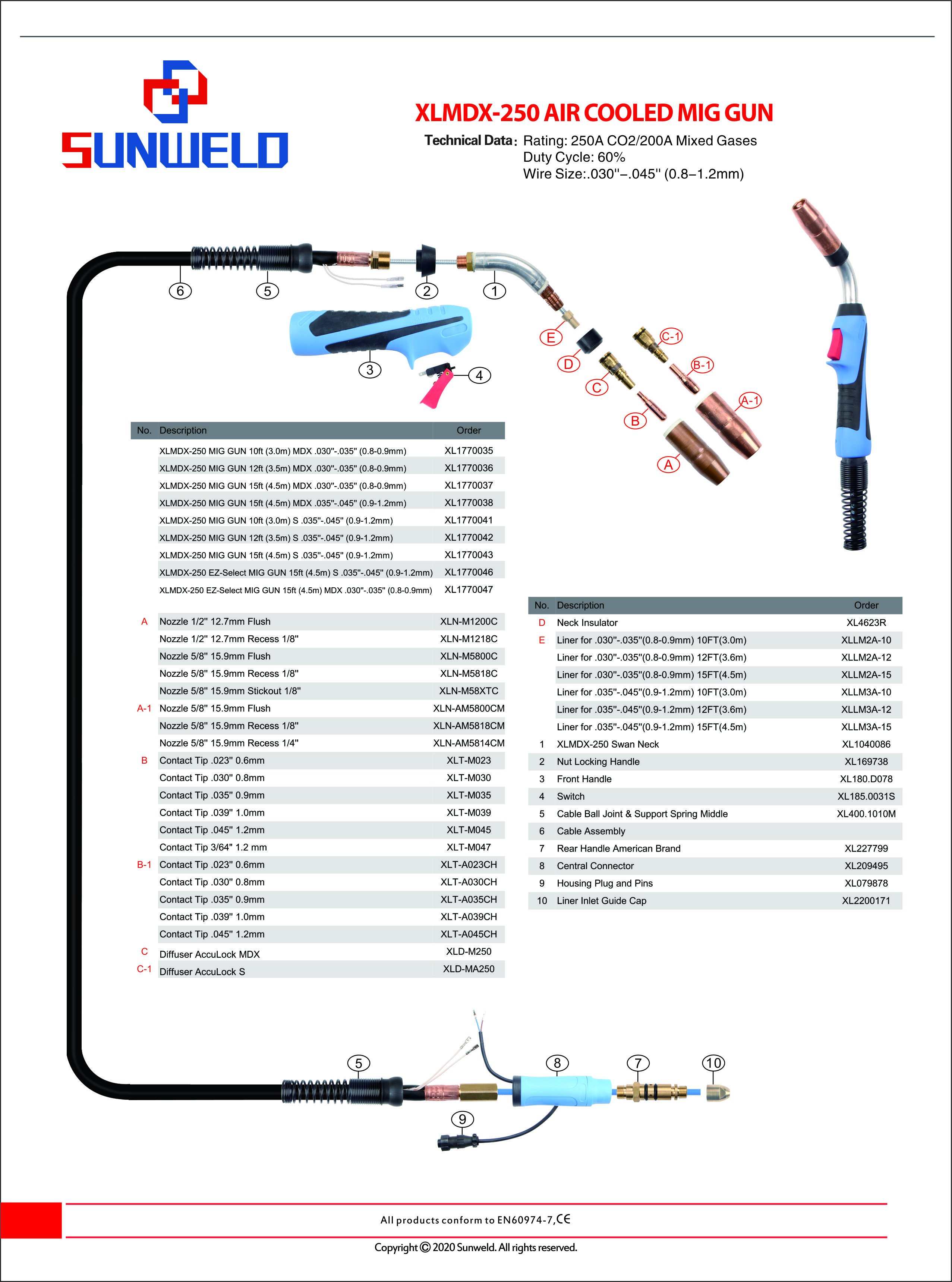

| XLMDX-250 AIR COOLED MIG GUN | ||
| Technical Data： | Rating: 250A CO2/200A Mixed Gases | |
| Duty Cycle:60% | ||
| Wire Size:.030''-.045'' (0.8-1.2mm) | ||
| No. | Description | Order |
| XLMDX-250 MIG GUN 10ft (3.0m) MDX .030''-.035'' (0.8-0.9mm) | XL1770035 | |
| XLMDX-250 MIG GUN 12ft (3.5m) MDX .030''-.035'' (0.8-0.9mm) | XL1770036 | |
| XLMDX-250 MIG GUN 15ft (4.5m) MDX .030''-.035'' (0.8-0.9mm) | XL1770037 | |
| XLMDX-250 MIG GUN 15ft (4.5m) MDX .035''-.045'' (0.9-1.2mm) | XL1770038 | |
| XLMDX-250 MIG GUN 10ft (3.0m) S .035''-.045'' (0.9-1.2mm) | XL1770041 | |
| XLMDX-250 MIG GUN 12ft (3.5m) S .035''-.045'' (0.9-1.2mm) | XL1770042 | |
| XLMDX-250 MIG GUN 15ft (4.5m) S .035''-.045'' (0.9-1.2mm) | XL1770043 | |
| XLMDX-250 EZ-Select MIG GUN 15ft (4.5m) S .035''-.045'' (0.9-1.2mm) | XL1770046 | |
| XLMDX-250 EZ-Select MIG GUN 15ft (4.5m) MDX .030''-.035'' (0.8-0.9mm) | XL1770047 | |
| A | Nozzle 1/2'' 12.7mm Flush | XLN-M1200C |
| Nozzle 1/2'' 12.7mm Recess 1/8'' | XLN-M1218C | |
| Nozzle 5/8'' 15.9mm Flush | XLN-M5800C | |
| Nozzle 5/8'' 15.9mm Recess 1/8'' | XLN-M5818C | |
| Nozzle 5/8'' 15.9mm Stickout 1/8'' | XLN-M58XTC | |
| A-1 | Nozzle 5/8'' 15.9mm Flush | XLN-AM5800CM |
| Nozzle 5/8'' 15.9mm Recess 1/8'' | XLN-AM5818CM | |
| Nozzle 5/8'' 15.9mm Recess 1/4'' | XLN-AM5814CM | |
| B | Contact Tip .023'' 0.6mm | XLT-M023 |
| Contact Tip .030'' 0.8mm | XLT-M030 | |
| Contact Tip .035'' 0.9mm | XLT-M035 | |
| Contact Tip .039'' 1.0mm | XLT-M039 | |
| Contact Tip .045'' 1.2mm | XLT-M045 | |
| Contact Tip 3/64" 1.2 mm | XLT-M047 | |
| B-1 | Contact Tip .023'' 0.6mm | XLT-A023CH |
| Contact Tip .030'' 0.8mm | XLT-A030CH | |
| Contact Tip .035'' 0.9mm | XLT-A035CH | |
| Contact Tip .039'' 1.0mm | XLT-A039CH | |
| Contact Tip .045'' 1.2mm | XLT-A045CH | |
| C | Diffuser AccuLock MDX | XLD-M250 |
| C-1 | Diffuser AccuLock S | XLD-MA250 |
| D | Neck Insulator | XL4623R |
| E | Liner for .030''-.035''(0.8-0.9mm) 10FT(3.0m) | XLLM2A-10 |
| Liner for .030''-.035''(0.8-0.9mm) 12FT(3.6m) | XLLM2A-12 | |
| Liner for .030''-.035''(0.8-0.9mm) 15FT(4.5m) | XLLM2A-15 | |
| Liner for .035''-.045''(0.9-1.2mm) 10FT(3.0m) | XLLM3A-10 | |
| Liner for .035''-.045''(0.9-1.2mm) 12FT(3.6m) | XLLM3A-12 | |
| Liner for .035''-.045''(0.9-1.2mm) 15FT(4.5m) | XLLM3A-15 | |
| No. | Description | Order |
| 1 | XLMDX-250 Swan Neck | XL1040086 |
| 2 | Nut Locking Handle | XL169738 |
| 3 | Front Handle | XL180.D078 |
| 4 | Switch | XL185.0031S |
| 5 | Cable Ball Joint & Support Spring Middle | XL400.1010M |
| 6 | Cable Assembly | |
| 7 | Rear Handle American Brand | XL227799 |
| 8 | Central Connector | XL209495 |
| 9 | Housing Plug and Pins | XL079878 |
| 10 | Liner Inlet Guide Cap | XL2200171 |
