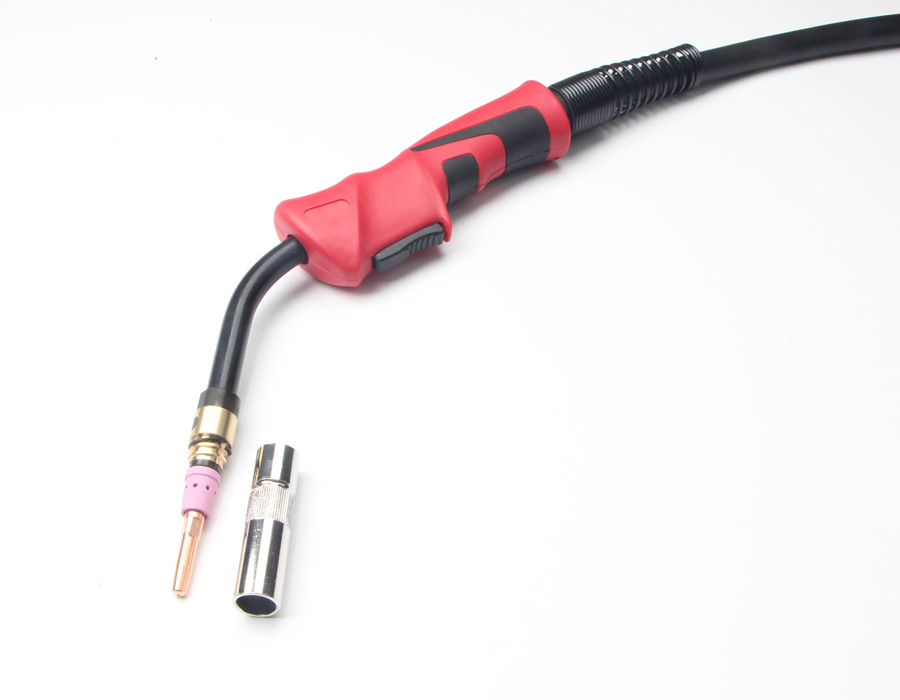

| XLP350A Air Cooled MIG Welding Torch | ||
| Technical Data: | Rating: 350A CO2/300A Mixed Gases | |
| Duty Cycle:60% | ||
| Wire Size: 0.8-1.2mm | ||
| No. | Description | Order |
| XLP350A 3m Welding Torch | YT-35CS4HAE | |
| XLP350A 4m Welding Torch | YT-35CS5HAE | |
| XLP350A 5m Welding Torch | YT-35CS6HAE | |
| A | Nozzle Cylindrical φ15*73mm | TGN00043 |
| Nozzle Conical φ11.5*73mm | TGN00044 | |
| B | Contact Tip E-CU M6*45*0.8mm O.D8mm | TET90805-8 |
| Contact Tip E-CU M6*45*0.9mm O.D8mm | TET90905-8 | |
| Contact Tip E-CU M6*45*1.0mm O.D8mm | TET91005-8 | |
| Contact Tip E-CU M6*45*1.2mm O.D8mm | TET91205-8 | |
| Contact Tip E-CU M6*45*1.4mm O.D8mm | TET91405-8 | |
| Contact Tip E-CU M6*45*1.6mm O.D8mm | TET91605-9 | |
| Contact Tip E-CU M6*45*0.8mm O.D9mm | TET90805-9 | |
| Contact Tip E-CU M6*45*0.9mm O.D9mm | TET90905-9 | |
| Contact Tip E-CU M6*45*1.0mm O.D9mm | TET91005-9 | |
| Contact Tip E-CU M6*45*1.2mm O.D9mm | TET91205-9 | |
| Contact Tip E-CU M6*45*1.4mm O.D9mm | TET91405-9 | |
| Contact Tip E-CU M6*45*1.6mm O.D9mm | TET91605-9 | |
| C | Gas Diffuser Ceramic | TGR01001 |
| D | Insulator | TFZ35101 |
| E | Contact Tip Holder External Thread M10*1 | TSM06411 |
| Contact Tip Holder External Thread Brass M10*1 | TSM06411B | |
| Contact Tip Holder Inside Thread M12*1 | TSM06411-I | |
| Contact Tip Holder Inside Thread Brass M12*1 | TSM06411-IB | |
| F | Red Steel Liner 1.0-1.2mm 3m | TDT90004 |
| Red Steel Liner 1.0-1.2mm 4m | TDT90005 | |
| Red Steel Liner 1.0-1.2mm 5m | TDT90006 | |
| No. | Description | Order |
| 1 | Swan Neck | TSM06357 |
| 2 | Front Handle | XLP350F |
| 3 | Switch | XLP350FS |
| 4 | Trigger The Wrench | XLP350FSW |
| 5 | Cable Ball Joint & Support Spring Big | XL400.1010B |
| 6 | Cable Assembly 3m 4m 5m | |
| 7 | Rear Handle | XLP350B |
| 8 | Control Wire Plug | XLPCLP |
| 9 | Gas Tube With Nut 9/16-18 | XLPGAS |
| 10 | Nut Cap | XLPNC |
